Product Description:

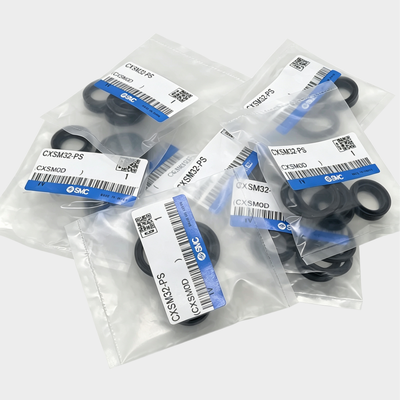

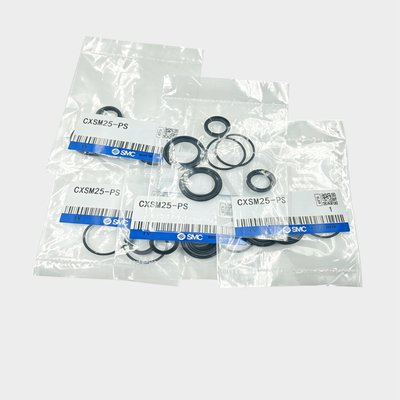

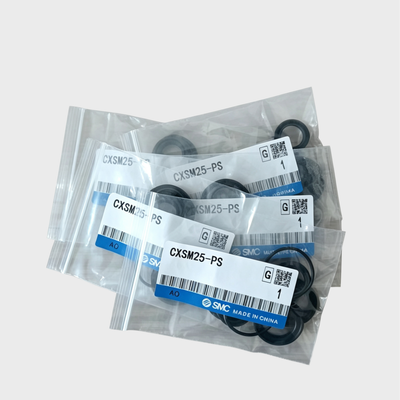

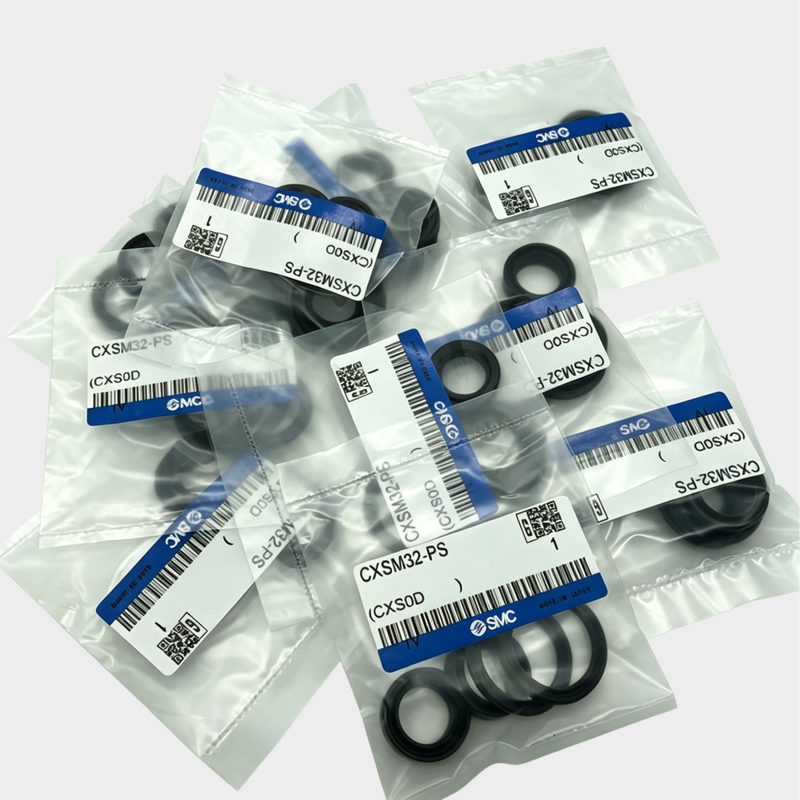

These dual rod cylinder seal kits are precisely engineered replacement sets specifically designed for the maintenance and complete overhaul of CXSM series guided pneumatic cylinders. They are available for bore sizes ranging from 6mm up to 32mm. Each kit includes all the essential sealing components needed to fully rebuild a cylinder: the piston seal, rod seal, and O-ring.
Manufactured from high-quality NBR (nitrile rubber), the seals provide outstanding resistance to wear, compression set, and common pneumatic media. These kits are compatible with the CXSM series basic type dual rod cylinders that feature slide bearings. These cylinders are well-regarded for their compact construction, accurate non-rotating specification, and are ideally suited for pick and place applications.
Regularly replacing seals with these kits helps to restore the cylinder’s original performance, prevent air leakage, and significantly extend the service life of existing actuators. This maintenance approach offers a cost-effective alternative compared to full cylinder replacement. Please note that the seal kit does not include a grease pack, which must be ordered separately (grease pack part number: GR-S-010, 10g).
Features:
This complete seal kit contains all the essential components needed for a comprehensive cylinder rebuild, including a piston seal, rod seal, and O-ring. It is designed to restore the full functionality of pneumatic cylinders efficiently.
The seal kits are available in a range of bore sizes to accommodate different applications, specifically 6mm, 10mm, 15mm, 20mm, 25mm, and 32mm. This variety ensures a precise fit for your specific cylinder size requirements.
Constructed from NBR (nitrile rubber), the seals provide excellent durability with high resistance to wear and compression. This material choice helps maintain long-lasting performance under demanding operating conditions.
These kits are fully compatible with the CXSM series dual rod guided pneumatic cylinders equipped with slide bearings. By using this seal kit, you can effectively eliminate air leakage, which restores the cylinder’s force, speed, and sealing efficiency.
Opting for this seal kit offers a cost-effective solution compared to replacing the entire cylinder, significantly extending the life of your actuator. Installation is straightforward and can be accomplished quickly using standard tools, minimizing downtime.
Ideal for various automation tasks, this kit suits pick and place operations, non-rotating mechanisms, and compact automation setups. Furthermore, the availability of one kit number per bore size simplifies inventory management and ordering processes.
Additionally, a separate grease pack (GR-S-010, 10g) is available to aid in installation and maintenance, ensuring optimal lubrication for the seals and enhancing their performance and lifespan.
Technical Parameters:
| Seal Material |
NBR |
| Kit Contents |
Piston Seal, Rod Seal, O-ring |
| Bearing Type |
Slide Bearing |
| Product Type |
Seal Kit / Repair Kit |
| Series |
CXSM |
| Bore Sizes |
6mm, 10mm, 15mm, 20mm, 25mm, 32mm |
Applications:
Pick and Place Units
Maintenance of dual rod guided cylinders plays a crucial role in ensuring precision positioning within pick and place units. These systems rely on accurate and reliable cylinder operation to maintain high efficiency and product quality.
Factory Automation
In automated production lines, the repair and upkeep of guided cylinders are essential. Proper maintenance helps prevent unexpected downtime and supports continuous, smooth manufacturing processes.
Material Handling
Replacing seals in cylinders used in conveyors and various handling systems is a key maintenance task. This ensures the longevity and optimal performance of the equipment involved in material transportation.
Packaging Machinery
Maintenance efforts focused on cylinders within packaging and filling machines are vital. Regular servicing guarantees reliable operation and helps maintain the speed and accuracy required in packaging processes.
Electronic Component Manufacturing
Precision assembly equipment used in electronic component production depends on the proper functioning of its cylinders. Timely repairs contribute to maintaining the precision and consistency necessary for high-quality assemblies.
General Industrial Pneumatics
Any industrial application that requires dependable dual rod cylinder sealing benefits from thorough maintenance and repair practices. Ensuring the sealing integrity supports overall system reliability in diverse pneumatic applications.
Customization:
SMC offers high-quality Pulse Valve Diaphragm customization services with the model number CXSM6-PS. Our products are manufactured in China and come with CE certification, ensuring compliance with international standards. We provide a minimum order quantity of 1 unit, with pricing available through negotiation to best fit your requirements.
Packaging is done carefully using sturdy cartons to guarantee the safe delivery of your order. Delivery time ranges from 1 to 7 working days after payment confirmation. We accept multiple payment terms including T/T, Western Union, and Paypal for your convenience.
With a supply ability of 5000 pieces per month, we ensure prompt fulfillment of your orders. The Pulse Valve Diaphragm features a slide bearing type and is available in bore sizes of 6mm, 10mm, 15mm, 20mm, 25mm, and 32mm, belonging to the CXSM series.
The kit contents include essential components such as piston seal, rod seal, and O-ring, making it an ideal seal kit or repair kit for maintenance purposes. Our product is perfectly suited to be used as an ASCO 8210 series spare diaphragm, pneumatic solenoid valve membrane, and pilot valve repair kit, ensuring reliable performance in various applications.
