Product Description:

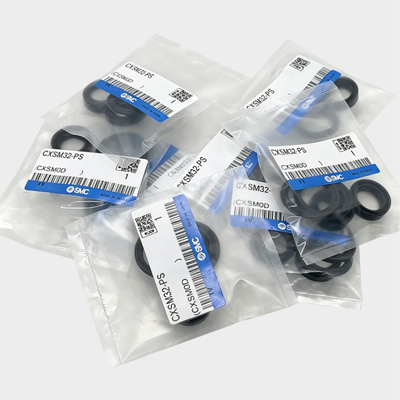

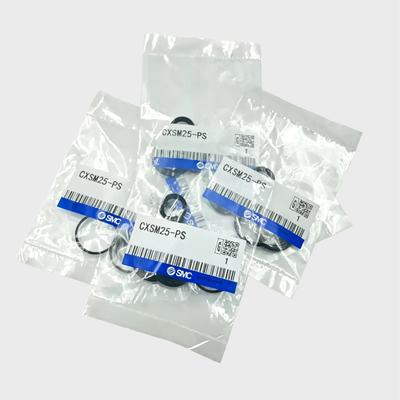

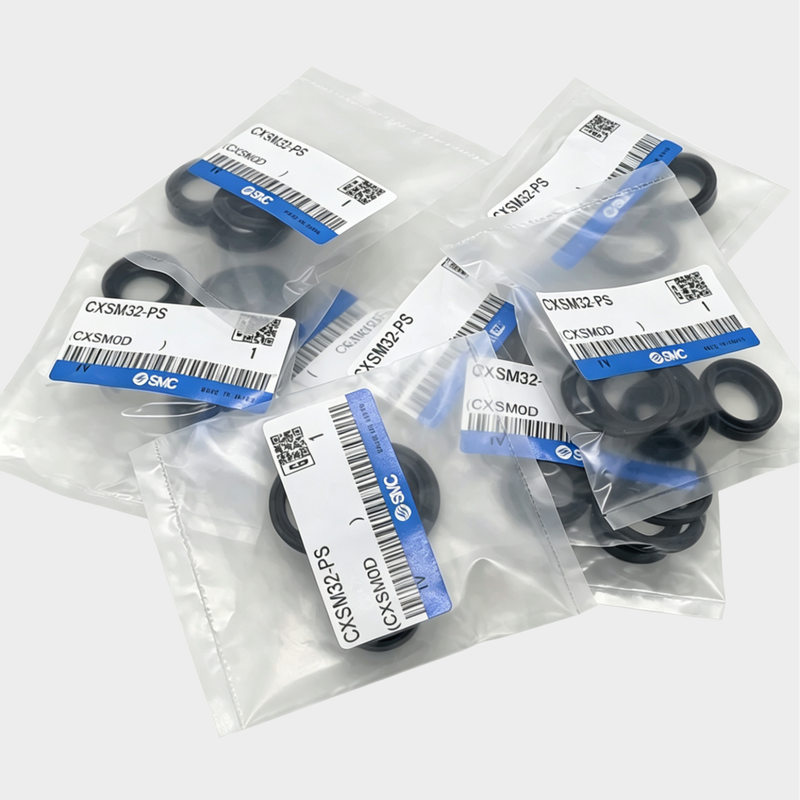

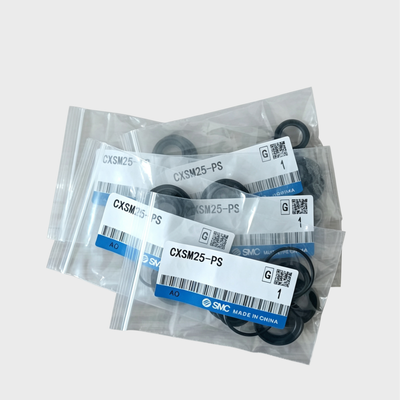

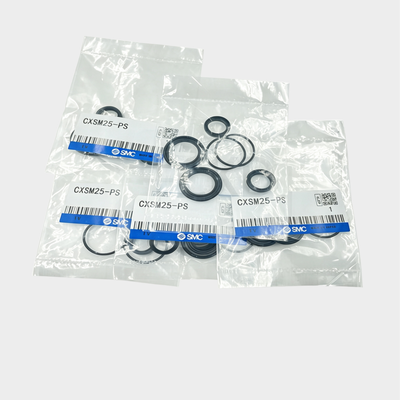

These dual rod cylinder seal kits are meticulously crafted replacement sets intended for the maintenance and refurbishment of CXSM series guided pneumatic cylinders. Suitable for bore sizes ranging from 6mm to 32mm, each kit includes all the critical sealing elements necessary for a comprehensive cylinder overhaul: piston seal, rod seal, and O-ring.
Manufactured using premium quality NBR (nitrile rubber), the seals provide outstanding resistance to wear, compression set, and common pneumatic media. These kits are specifically designed to be compatible with CXSM series basic type dual rod cylinders that feature a slide bearing. These cylinders are widely recognized for their compact construction, precise anti-rotation capabilities, and are ideal for pick and place operations.
Routine replacement of seals using these kits helps to restore the cylinder’s original performance, prevents air leaks, and significantly prolongs the operating life of current actuators, all at a fraction of the cost compared to a full cylinder replacement. Please note that the seal kit does not include a grease pack, which must be purchased separately (grease pack part number: GR-S-010, 10g).
Features:
This complete seal kit includes a piston seal, rod seal, and O-ring, providing everything needed for a full cylinder rebuild. It ensures a comprehensive restoration of your pneumatic cylinder's sealing components.
The seal kits are available for various bore sizes, including 6mm, 10mm, 15mm, 20mm, 25mm, and 32mm, offering flexibility to match different cylinder dimensions.
Made from NBR (nitrile rubber), these seals provide excellent resistance to wear and compression, ensuring durability and long-lasting performance even in demanding conditions.
Designed specifically for CXSM series dual rod guided pneumatic cylinders with slide bearings, these seals guarantee compatibility and optimal functioning within the system.
By eliminating air leakage, the seal kit helps restore the cylinder's original force, speed, and sealing efficiency, improving overall actuator performance.
Using this kit is a cost-effective solution compared to replacing the entire cylinder, significantly extending the service life of your pneumatic actuator.
The installation process is quick and straightforward, requiring only standard tools, which reduces downtime and simplifies maintenance tasks.
These seal kits are ideal for automation tasks such as pick and place, non-rotating movements, and compact setups, catering to a wide range of industrial applications.
Each bore size corresponds to a unique kit number, which helps streamline inventory management and ensures easy ordering.
Additionally, a grease pack (GR-S-010, 10g) is available separately to complement the seal kit and support smooth operation.
Technical Parameters:
| Seal Material |
NBR |
| Kit Contents |
Piston Seal, Rod Seal, O-ring |
| Bore Sizes |
6mm, 10mm, 15mm, 20mm, 25mm, 32mm |
| Bearing Type |
Slide Bearing |
| Product Type |
Seal Kit / Repair Kit |
| Series |
CXSM |
Applications:
Pick and Place Units
Maintenance of dual rod guided cylinders is essential in precision positioning systems used in pick and place units. Ensuring these cylinders operate smoothly helps maintain accuracy and reliability in automated movements.
Factory Automation
Guided cylinders within automated production lines require regular repair and upkeep to avoid downtime. Proper maintenance supports continuous operation and boosts overall efficiency in factory automation.
Material Handling
In conveyors and handling systems, replacing seals in cylinders is vital to prevent leaks and maintain optimal performance. Seal replacement enhances the durability and reliability of material handling equipment.
Packaging Machinery
Cylinders used in packaging and filling machines need consistent maintenance to ensure smooth operation. Keeping these components in good condition reduces the risk of breakdowns and maintains production quality.
Electronic Component Manufacturing
Precision assembly equipment in electronic component manufacturing depends on well-maintained cylinders. Repairing these cylinders is crucial to uphold the accuracy and efficiency required in such delicate processes.
General Industrial Pneumatics
Applications demanding dependable sealing in dual rod cylinders benefit from thorough maintenance practices. This is key to ensuring long-lasting performance and reliability across various industrial pneumatic systems.
Customization:
Introducing the SMC Pulse Valve Diaphragm, model number CXSM6-PS, a high-quality component designed to meet your precise requirements. Manufactured in China and certified with CE, this product ensures reliable performance and compliance with international standards.
Our product customization services offer flexible options tailored to your needs. With a minimum order quantity of just 1 piece and a supply ability of 5000 pieces per month, we provide efficient delivery within 1-7 work days after payment. Pricing is negotiable to suit your budget, and payment terms include T/T, Western Union, and Paypal for your convenience.
Packaged securely in cartons, the CXSM series Pulse Valve Diaphragm features a durable slide bearing and high-quality NBR seal material. The kit contents include a piston seal, rod seal, and O-ring, making it an ideal choice for a 2-way valve repair kit or pilot valve repair kit applications. It is also compatible as an ASCO 8210 series spare diaphragm replacement.
Available bore sizes include 6mm, 10mm, 15mm, 20mm, 25mm, and 32mm, allowing you to select the perfect fit for your system. Trust SMC’s expertise and comprehensive customization services to enhance your valve repair and maintenance processes.
Packing and Shipping:
Each Pulse Valve Diaphragm is carefully packaged to ensure maximum protection during transit. The diaphragm is first placed in a protective plastic sleeve to prevent any contamination or damage. It is then securely positioned within a custom-fitted box that provides cushioning and minimizes movement.
The packaging materials used are eco-friendly and designed to withstand various shipping conditions. Clear labeling with product details and handling instructions is affixed to each package for easy identification.
For shipping, we partner with reliable carriers to guarantee timely and safe delivery. All shipments include tracking information, and we offer multiple shipping options to meet customer needs, including expedited and standard delivery services.
Upon receipt, customers are advised to inspect the package for any visible damage and to verify the contents against the packing list. Our customer support team is available to assist with any shipping or product concerns.
