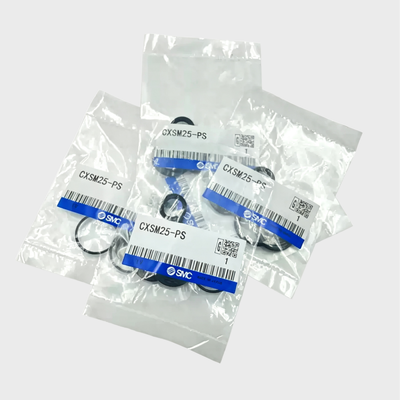

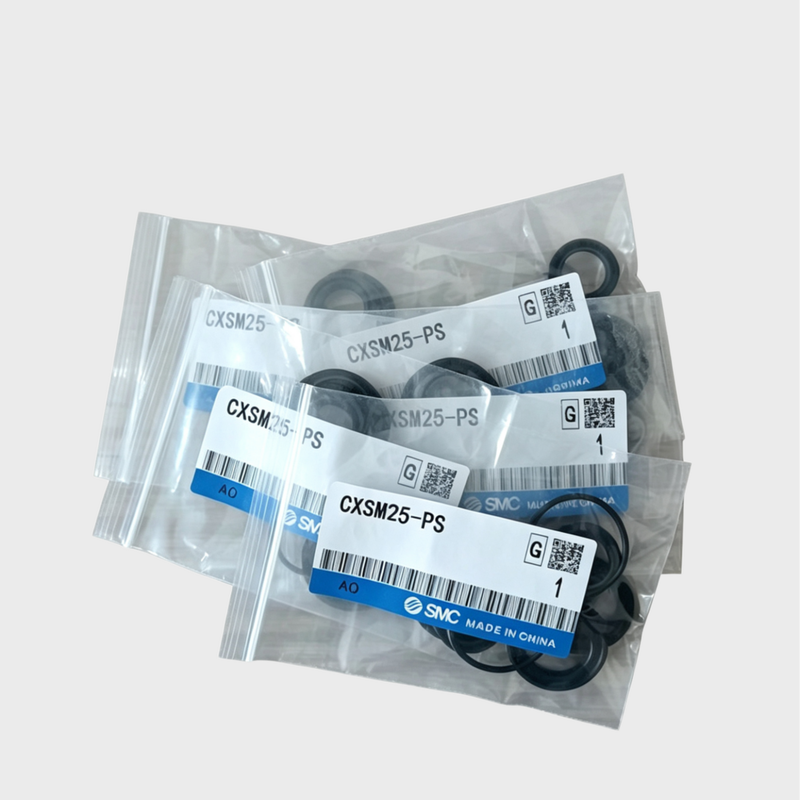

SMC CXSM25-PS Wear Resistant Anti Aging Seals Air Cylinder Repair Kit for High Frequency Working Conditions

Product Description:

These dual rod cylinder seal kits are meticulously engineered replacement sets, specifically designed to support the maintenance and complete overhaul of CXSM series guided pneumatic cylinders. They accommodate bore sizes ranging from 6mm to 32mm, ensuring a suitable fit for a variety of cylinder models. Each kit is comprehensive, containing all the essential sealing components needed for a thorough cylinder rebuild, including the piston seal, rod seal, and O-ring.

The seals in these kits are crafted from premium-grade NBR (nitrile rubber), which provides outstanding resistance to wear, compression set, and exposure to standard pneumatic media. This high-quality material ensures durability and reliable performance over extended periods. These seal kits are compatible with the CXSM series basic type dual rod cylinders equipped with slide bearings. These cylinders are recognized for their compact design, precise non-rotating characteristics, and are particularly suited for pick and place operations.

By regularly replacing seals using these kits, users can restore the cylinder's optimal performance, effectively eliminate air leakage, and significantly prolong the service life of their existing actuators. This maintenance approach offers a cost-effective alternative to complete cylinder replacement. Please note that the seal kit does not include a grease pack, which must be purchased separately. The compatible grease pack part number is GR-S-010, containing 10 grams of grease.

Features:

Technical Parameters:

Applications:

In pick and place units, maintaining dual rod guided cylinders is essential for achieving precision positioning. Regular upkeep ensures that these cylinders operate smoothly and accurately within automated systems.

Within factory automation, guided cylinders play a critical role in automated production lines. Timely repairs and maintenance help prevent downtime and maintain consistent performance in the manufacturing process.

For material handling applications, seal replacement in cylinders used on conveyors and handling systems is vital. Proper sealing helps maintain efficiency and prevents leakage, which could otherwise disrupt operations.

Packaging machinery relies on cylinders for various functions in packaging and filling equipment. Routine maintenance of these cylinders ensures reliable operation and minimizes the risk of malfunctions during production.

In the field of electronic component manufacturing, cylinders are used extensively in precision assembly equipment. Regular repair and maintenance help sustain the accuracy and reliability required for high-quality assembly processes.

More broadly, in general industrial pneumatics, any application that involves dual rod cylinders benefits from dependable sealing solutions. Ensuring the integrity of these seals is crucial for the overall performance and longevity of pneumatic systems.

Customization:

Introducing the SMC Pulse Valve Diaphragm, model number CXSM6-PS, a high-quality seal kit designed for efficient and reliable performance. Manufactured in China and certified with CE standards, this product ensures durability and compliance with international quality benchmarks.

This 2-way valve repair kit is specially crafted with a slide bearing type and made from premium NBR seal material, offering excellent resistance and longevity. It is compatible with bore sizes of 6mm, 10mm, 15mm, 20mm, 25mm, and 32mm, making it versatile for various applications within the CXSM series.

The Pulse Valve Diaphragm is an ideal replacement for ASCO series 210 diaphragm and ASCO 8210 series spare diaphragm, providing a cost-effective and reliable solution for maintenance and repairs.

With a minimum order quantity of just 1 piece, customers can negotiate pricing to meet their budget requirements. Each unit is carefully packaged in cartons to ensure safe delivery.

We guarantee a fast delivery time of 1-7 work days after payment, supported by flexible payment terms including T/T, Western Union, and Paypal. Our supply ability stands at 5000 pieces per month, ensuring consistent availability to meet your demand.

Choose the SMC CXSM6-PS Pulse Valve Diaphragm for a trusted seal kit/repair kit solution that enhances the lifespan and efficiency of your valve systems.

Packing and Shipping:

Each Pulse Valve Diaphragm is carefully packaged to ensure maximum protection during transit. The diaphragm is first wrapped in a protective film to prevent any damage or contamination. It is then placed inside a sturdy, cushioned box designed to absorb shocks and vibrations. For bulk orders, individual units are securely packed in larger cartons with additional padding materials to avoid movement and impact.

Our shipping process is streamlined to guarantee timely and safe delivery. We use reliable courier services with tracking options available for all shipments. Depending on the destination, we offer various shipping methods including standard, expedited, and express delivery. All packages are clearly labeled with product information and handling instructions to maintain product integrity throughout the shipping journey.
