SMC MGQ50-PS Air Cylinder Service Kit Anti Leakage Rubber Seal Pack For MGQ50 High Side Load Resistant Compact Guide Cylinder Pneumatic System Performance Renewal

Product Description:

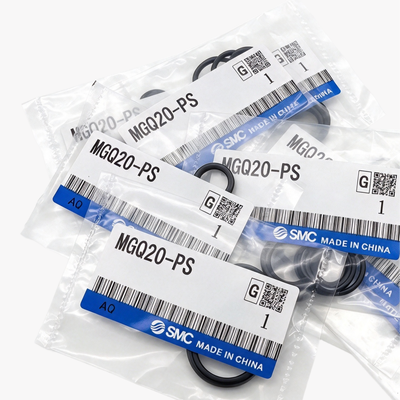

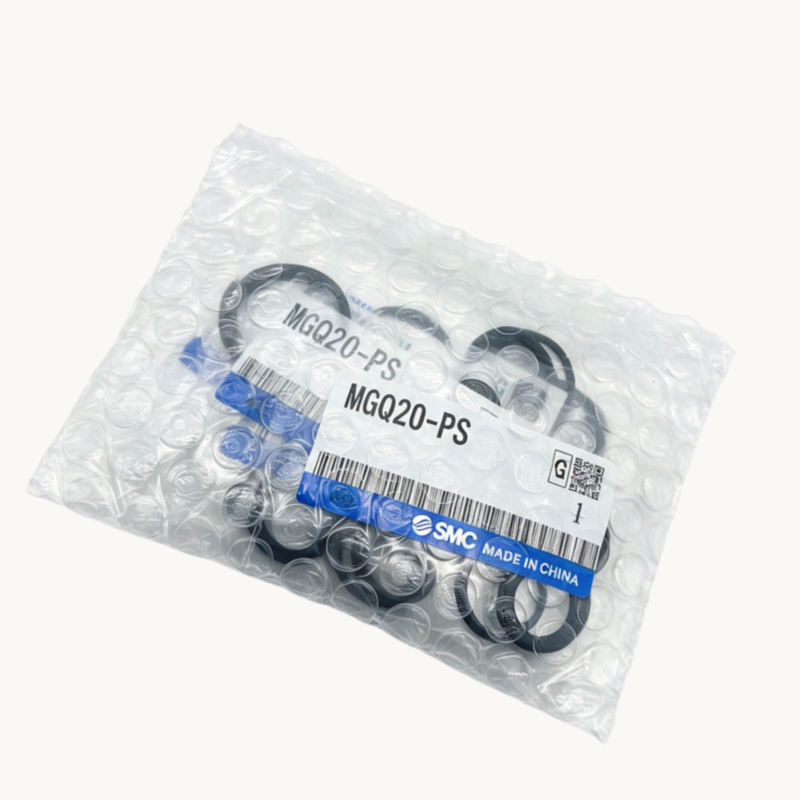

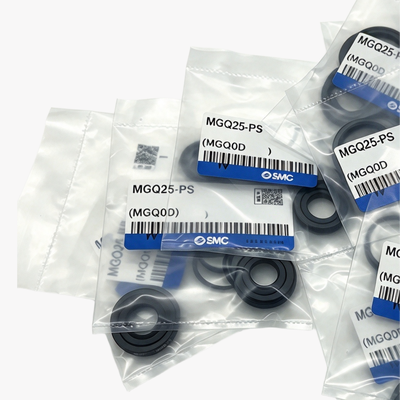

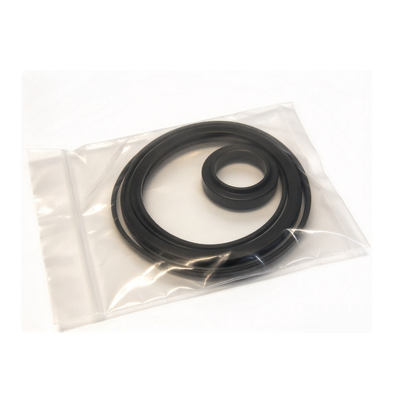

These compact guide cylinder seal kits are precisely engineered replacement sets specifically designed for the maintenance and overhaul of MGQ series guided pneumatic cylinders. They cater to bore sizes ranging from 12mm to 63mm, providing all the necessary sealing components for a complete cylinder rebuild. Each kit includes piston packing, rod packing, gasket A, and gasket B to ensure comprehensive sealing solutions.

The seals are crafted from high-quality NBR (nitrile rubber), which offers exceptional resistance to wear, oil, and abrasion, ensuring dependable performance in various pneumatic applications. The MGQ series compact guide cylinders incorporate an integrated guide design that provides excellent lateral load resistance and high non-rotating accuracy. This makes the cylinders perfect for use as stoppers and lifters in conveyor lines and other precision automation tasks.

The MGQ series is offered with two types of bearings to suit different operational needs: the slide bearing (MGQM) designed for enhanced impact resistance, and the ball bushing bearing (MGQL) that assures smooth operation with high precision. Depending on the bore size and bearing type, the non-rotating accuracy ranges from ±0.04° to ±0.08°. Additionally, all models feature built-in magnets for automatic switch position detection across the entire stroke length.

Regular replacement of seals using these kits helps restore cylinder functionality, prevent air leakage, and significantly extend the lifespan of existing actuators, all at a much lower cost compared to full replacements. Please note that the seal kit does not include a grease pack; it must be ordered separately using the part number GR-S-010 (10g).

Features:

Each seal kit is comprehensive, containing piston packing, rod packing, as well as gasket A and gasket B, providing everything needed for a full cylinder rebuild.

The kits are available to fit a variety of bore sizes including 12mm, 16mm, 20mm, 25mm, 32mm, 40mm, 50mm, and 63mm, accommodating diverse application needs.

Made with high-quality nitrile rubber (NBR), the seals offer excellent resistance to oil and wear, ensuring long-lasting performance in demanding environments.

These seal kits are specifically designed for use with the MGQ compact guide rod cylinders that feature an integrated guide, ensuring perfect fit and function.

By replacing worn seals, air leakage is eliminated, which helps restore the cylinder's original force and speed, enhancing overall operational efficiency.

The kits support cylinders that maintain a non-rotating accuracy between ±0.04° and ±0.08°, ensuring stable and precise movements.

Utilizing a slide bearing design, these seals provide more than twice the lateral load strength compared to conventional stopper cylinders, improving durability and performance.

All models come equipped with built-in magnets that enable auto switch position detection, facilitating easier monitoring and control.

Offering a cost-efficient alternative to purchasing new cylinders, these kits significantly extend the service life of actuators while reducing maintenance expenses.

The seal kits are suitable for use in operating temperatures ranging from -10°C to +60°C and can handle pressures from 0.1 to 1.0 MPa, making them versatile for various applications.

With just one kit number assigned per bore size, managing inventory becomes simpler and more streamlined for maintenance and operations teams.

For proper lubrication during installation, a separate grease pack GR-S-010 (10g) is available, ensuring optimal seal performance and longevity.

Technical Parameters:

Applications:

In conveyor systems, compact guide cylinders play a crucial role as stoppers and positioning devices. Regular maintenance of these cylinders ensures smooth operation and prevents unexpected downtime in conveyor lines.

For lifters and pushers used in various industrial settings, seal replacement is essential to maintain the optimal performance of cylinders involved in lifting and pushing tasks. Proper seal maintenance helps extend cylinder life and enhances reliability.

Precision is key in pick and place units, where guided cylinders are integral to exact positioning systems. Repair and upkeep of these cylinders are necessary to sustain high accuracy and efficiency within automated processes.

Within factory automation, guided cylinders require ongoing maintenance to support automated production lines effectively. Ensuring these components function correctly contributes to uninterrupted workflow and increased productivity.

Material handling systems often depend on cylinders fitted with seal kits, particularly in conveyors and various handling applications. Regular servicing of these cylinders helps maintain operational integrity and reduces wear-related failures.

In packaging machinery, cylinders are critical components used in packaging and filling equipment. Routine upkeep and cylinder maintenance help assure consistent performance and prevent production delays.

The manufacturing of electronic components demands high precision, and guided cylinder repair in assembly equipment is vital for maintaining product quality. Timely repairs help avoid costly defects and downtime.

Across general industrial pneumatics, any application that requires compact guide cylinder sealing benefits from reliable maintenance practices. Ensuring seal integrity is fundamental to the longevity and efficiency of pneumatic systems.

Customization:

Introducing the SMC Pulse Valve Diaphragm, model number MGQ12-PS, an essential industrial valve diaphragm repair part designed to ensure optimal performance and durability. Manufactured in China and certified with CE standards, this pneumatic solenoid valve membrane is crafted from high-quality NBR (Nitrile Rubber) seal material, providing excellent resistance and reliability in various industrial applications.

This double acting seal kit / repair kit includes piston packing, rod packing, gasket A, and gasket B, making it a comprehensive solution for maintaining and repairing your pulse valves. With a proof pressure rating of 1.5 MPa, the diaphragm ensures robust operation under demanding conditions.

We offer flexible product customization services with a minimum order quantity of just 1 piece, making it convenient for both small and large scale requirements. Packaging is done securely in cartons to protect the product during transit. Our supply ability reaches up to 5000 pieces per month, ensuring timely delivery within 1-7 work days after payment.

Payment terms are flexible, accepting T/T, Western Union, and Paypal for your convenience. Pricing is negotiable to meet your budget and project needs. Choose the SMC Pulse Valve Diaphragm for a reliable industrial valve diaphragm repair part and pneumatic solenoid valve membrane that guarantees long-lasting performance and quality.

Support and Services:

Our Pulse Valve Diaphragm product is designed to deliver reliable and efficient performance in various industrial applications. For technical support, our team of experts is available to assist with installation, troubleshooting, and maintenance to ensure optimal operation of your pulse valve system.

We offer comprehensive services including product selection guidance, customization options to meet specific application requirements, and detailed documentation to support proper usage. Regular maintenance services are also available to extend the lifespan of your pulse valve diaphragm and prevent unexpected downtime.

To maximize the effectiveness of your pulse valve diaphragm, we recommend adhering to the specified operational parameters and performing routine inspections. Our support team can provide training and resources to help your staff handle the equipment safely and efficiently.

Our commitment is to provide timely and effective technical support and after-sales services to ensure customer satisfaction and the longevity of your pulse valve diaphragm product.
