SMC MGQ16-PS Compact Guide Cylinder Seal Repair Kit NBR Piston Rod Seals For MGQ16 16mm Bore Double Acting Pneumatic Guide Cylinder Overhaul Maintenance

Product Description:

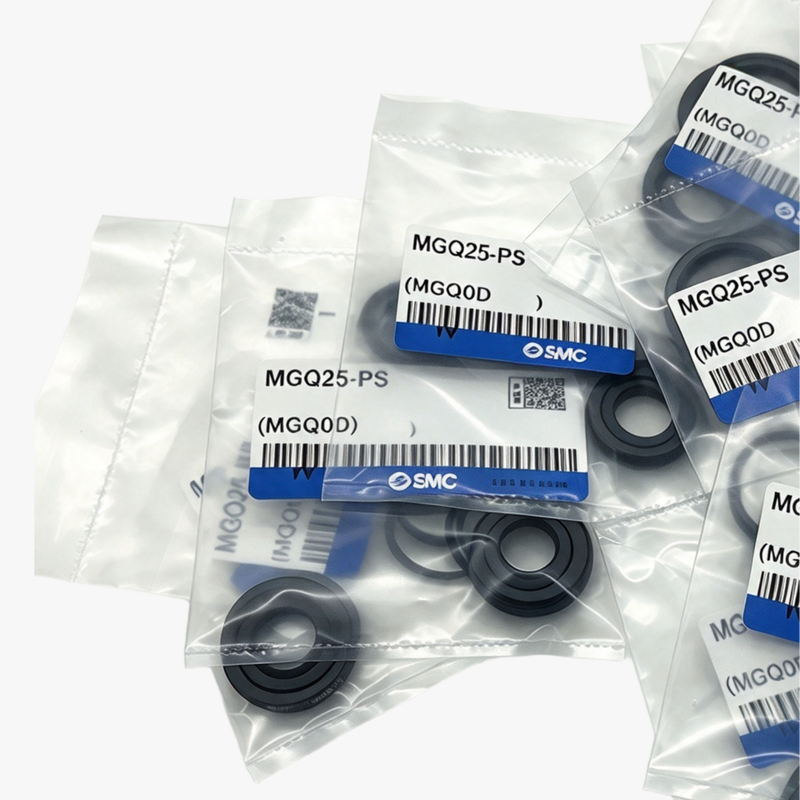

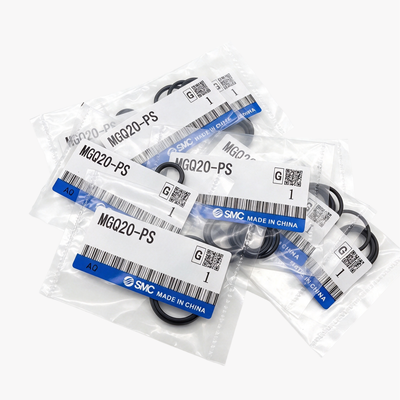

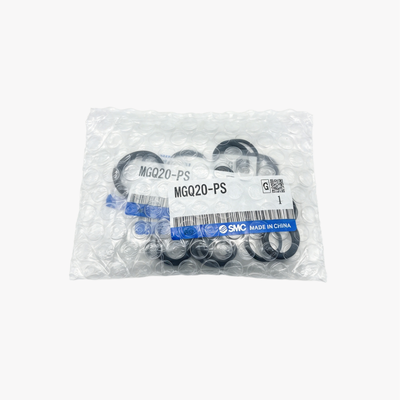

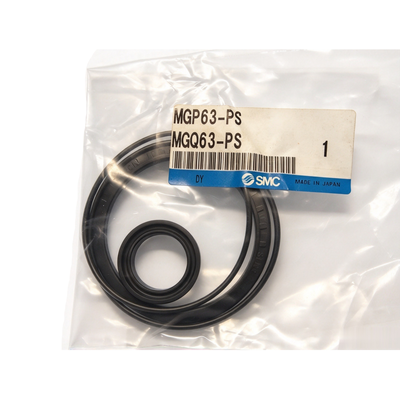

These compact guide cylinder seal kits are precision-engineered replacement sets specifically designed for the maintenance and overhaul of MGQ series guided pneumatic cylinders. Available for bore sizes ranging from 12mm up to 63mm, each kit contains all the essential sealing components necessary for a complete cylinder rebuild, including piston packing, rod packing, gasket A, and gasket B.

The seals are produced from high-quality NBR (nitrile rubber), which provides excellent resistance against wear, oil, and abrasion, ensuring reliable performance in various pneumatic applications. The MGQ series compact guide cylinders incorporate an integrated guide design that delivers lateral load resistance along with high non-rotating accuracy, making them perfect for use in stoppers, lifters on conveyor lines, and other precision automation tasks.

The MGQ series offers two different bearing options: slide bearing (MGQM), which provides superior impact resistance, and ball bushing bearing (MGQL), known for smooth operation and suitability for high-precision applications. Non-rotating accuracy varies between ±0.04° and ±0.08°, depending on the bore size and bearing type. Additionally, all models come with built-in magnets to enable auto switch position detection throughout the full stroke range.

Regular replacement of seals using these kits helps restore cylinder performance, prevents air leakage, and significantly extends the service life of existing actuators at a much lower cost compared to full replacements. Please note that the seal kit does not include grease; a grease pack must be ordered separately (part number: GR-S-010, 10g).

Features:

Each seal kit is comprehensive, containing piston packing, rod packing, gasket A, and gasket B. This complete set ensures a full and effective rebuild of your cylinder, restoring its functionality and reliability.

Our seal kits accommodate a broad spectrum of bore sizes, including 12mm, 16mm, 20mm, 25mm, 32mm, 40mm, 50mm, and 63mm. This variety ensures that you can find the perfect match for your specific cylinder dimensions.

The seals are made from premium nitrile rubber (NBR), renowned for their superior oil and wear resistance. These high-quality seals provide long-lasting performance even under demanding conditions.

Designed specifically for the MGQ compact guide rod cylinder series, these kits fit models featuring an integrated guide, ensuring seamless replacement and optimal operation.

By replacing worn or damaged seals, the kit effectively eliminates air leaks, bringing your cylinder's force and speed back to its original performance levels.

Compatible with cylinders offering non-rotating accuracy between ±0.04° and ±0.08°, the seal kits help maintain precise operation without unwanted rotation.

Utilizing a slide bearing design, these kits provide more than twice the lateral load strength compared to conventional stopper cylinders, enhancing durability and stability under load.

All models come equipped with built-in magnets, enabling automatic switch position detection for improved automation and control.

Offering a significant cost advantage over purchasing new cylinders, these seal kits help extend the service life of your actuators while reducing overall maintenance expenses.

The kits are suitable for operating temperatures ranging from -10°C to +60°C and can withstand pressures between 0.1 and 1.0 MPa, making them versatile for various applications.

With a single kit number for each bore size, managing your stock becomes simpler and more efficient, streamlining procurement and storage.

For proper lubrication during installation, a grease pack (model GR-S-010, 10g) is available separately, ensuring smooth assembly and optimal seal performance.
