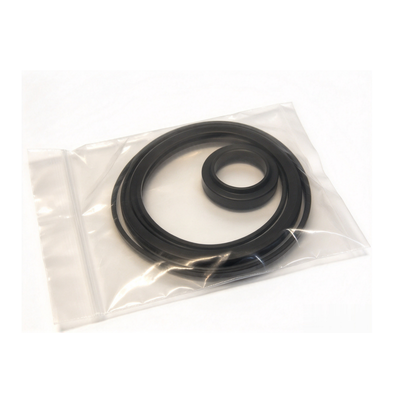

SMC MGQ32-PS Pneumatic Spare Parts Seal Repair Kit Complete Sealing Components For MGQ32 Compact Guide Cylinder Piston Rod Seal Replacement For Industrial Double Acting Actuator

Product Description:

These compact guide cylinder seal kits are precision-engineered replacement sets specifically designed for the maintenance and overhaul of MGQ series guided pneumatic cylinders. They are available for bore sizes ranging from 12mm to 63mm. Each kit includes all essential sealing components required for a complete cylinder rebuild, such as piston packing, rod packing, gasket A, and gasket B.

The seals are crafted from high-quality NBR (nitrile rubber), which provides excellent resistance to wear, oil, and abrasion. This ensures reliable performance in various pneumatic applications. The MGQ series compact guide cylinders incorporate an integrated guide design that offers lateral load resistance and high non-rotating accuracy. This makes them perfect for applications like stoppers and lifters in conveyor lines and other precision automation tasks.

The MGQ series comes with two bearing options: slide bearing (MGQM), which is designed for enhanced impact resistance, and ball bushing bearing (MGQL), which provides smooth operation suited for high-precision applications. The non-rotating accuracy of these cylinders ranges from ±0.04° to ±0.08°, depending on the bore size and the bearing type. Additionally, all models feature built-in magnets that enable auto switch position detection across the entire stroke range.

Regular replacement of seals using these kits helps to restore the cylinder’s original performance, prevent air leakage, and significantly extend the service life of existing actuators. This maintenance is a cost-effective alternative to full cylinder replacement. Please note that the seal kit does not include a grease pack. The grease pack needs to be ordered separately with the part number GR-S-010 (10g).

Features:

The Complete Seal Kit contains everything needed for a comprehensive cylinder rebuild. Each kit is equipped with piston packing, rod packing, gasket A, and gasket B to ensure full restoration of your cylinder's sealing capabilities.

These kits are available for a variety of bore sizes including 12mm, 16mm, 20mm, 25mm, 32mm, 40mm, 50mm, and 63mm. This wide selection allows you to find the perfect fit for your specific cylinder requirements.

The seals are made from high-quality nitrile rubber (NBR), which provides excellent resistance to oil and wear. This ensures long-lasting performance even in demanding environments.

Designed specifically for the MGQ compact guide rod cylinders, these kits are compatible with models featuring an integrated guide system, making them ideal for maintaining your existing equipment.

By replacing worn seals, the kit effectively eliminates air leakage, allowing your cylinder to regain its original force and speed capabilities, thus improving overall performance.

These seal kits support cylinders that maintain a tight non-rotating accuracy range of ±0.04° to ±0.08°, ensuring precise operation where rotational movement is minimized.

The slide bearing design incorporated in these kits provides over twice the lateral load resistance compared to traditional stopper cylinders, enhancing durability and operational stability.

Every model in the series includes a built-in magnet that enables auto switch position detection, allowing for seamless integration with control systems.

Repairing cylinders with this seal kit costs only a fraction of purchasing a new unit, significantly extending the service life of actuators and reducing overall maintenance expenses.

The kits are suitable for applications operating within a temperature range of -10°C to +60°C and pressure levels from 0.1 to 1.0 MPa, making them versatile for various environments.

With only one kit number per bore size, managing stock becomes straightforward and efficient, helping reduce complexity in your inventory system.

For proper lubrication during installation, a separate grease pack (GR-S-010, 10g) is available, ensuring the seals fit perfectly and function smoothly from the start.

Technical Parameters:

Applications:

Customization:

Introducing the SMC Pulse Valve Diaphragm, model number MGQ12-PS, a high-quality industrial valve diaphragm repair part designed for durability and efficiency. Manufactured in China and CE certified, this product ensures reliable performance within an operating temperature range of -10°C to +60°C.

This double acting seal kit / repair kit belongs to the MGQ series and is suitable for various bore sizes including 12mm, 16mm, 20mm, 25mm, 32mm, 40mm, 50mm, and 63mm, making it an ideal pilot valve repair kit for diverse industrial applications.

We offer a minimum order quantity of just 1 piece, with pricing available upon negotiation to best meet your project needs. Each unit is carefully packaged in a carton to ensure safe delivery.

Our supply ability reaches up to 5000 pieces per month, with a delivery time of 1-7 work days after payment confirmation. Payment terms include T/T, Western Union, and Paypal for your convenience.

Choose the SMC Pulse Valve Diaphragm MGQ12-PS for your industrial valve diaphragm repair part needs and benefit from quality, reliability, and excellent customer service.
