Product Description:

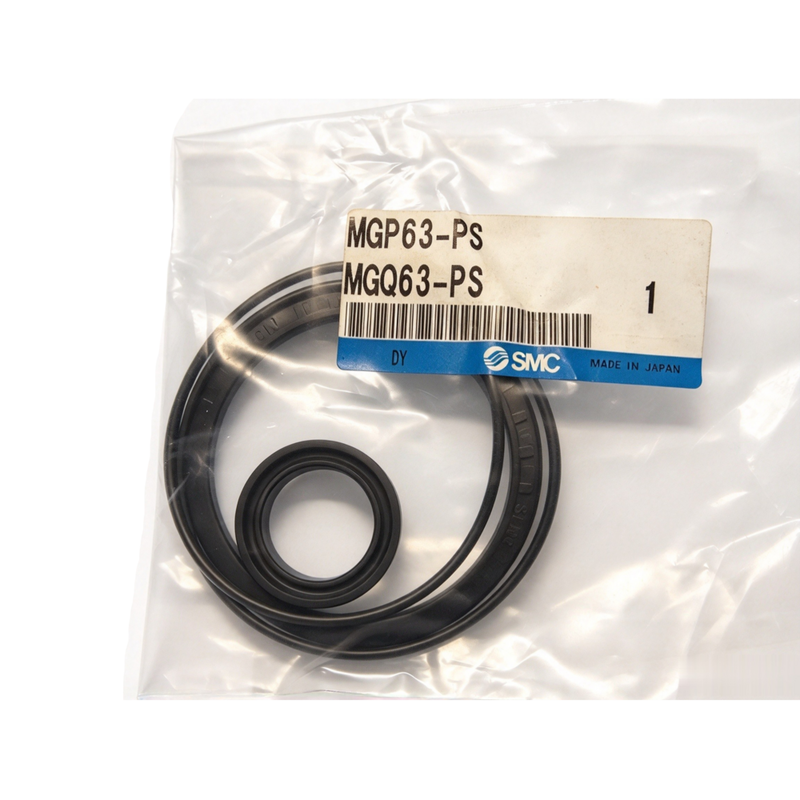

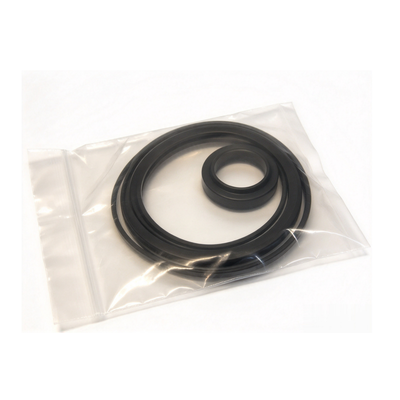

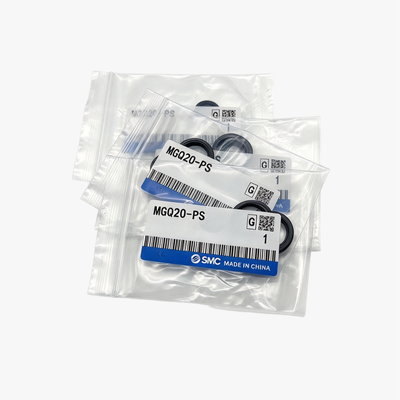

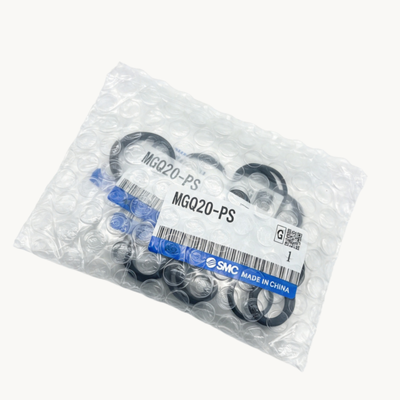

These compact guide cylinder seal kits are meticulously engineered replacement sets specifically designed for the maintenance and complete overhaul of MGQ series guided pneumatic cylinders. Suitable for bore sizes ranging from 12mm to 63mm, each kit includes all the essential sealing components needed for a thorough cylinder rebuild: piston packing, rod packing, gasket A, and gasket B.
The seals are crafted from premium-quality NBR (nitrile rubber), which provides outstanding resistance to wear, oil, and abrasion. This ensures dependable performance in various pneumatic applications. The MGQ series compact guide cylinders incorporate an integrated guide design that delivers excellent lateral load resistance and high non-rotating accuracy. These features make the cylinders ideal for use as stoppers and lifters in conveyor lines and other precision automation equipment.
Available with two different bearing options, the MGQ series offers slide bearings (MGQM) that provide strong impact resistance, and ball bushing bearings (MGQL) that enable smooth operation and superior precision. The non-rotating accuracy varies between ±0.04° and ±0.08°, depending on the bore size and bearing type. Additionally, all models include built-in magnets that facilitate auto switch position detection throughout the entire stroke length.
Regular replacement of seals using these kits helps restore the cylinder’s optimal performance, prevents air leakage, and significantly extends the service life of existing actuators at a fraction of the cost of a full replacement. Please note that the seal kit does not come with a grease pack; this should be ordered separately. The grease pack part number is GR-S-010 and contains 10g of lubricant.
Features:
Complete Seal Kit for Full Cylinder Rebuild
Each seal kit provides all the necessary components for a comprehensive cylinder refurbishment. It includes piston packing, rod packing, gasket A, and gasket B, ensuring a full and effective rebuild of your cylinder.
Wide Range of Bore Sizes Available
Our seal kits are available in multiple bore sizes to accommodate various cylinder dimensions. The sizes include 12mm, 16mm, 20mm, 25mm, 32mm, 40mm, 50mm, and 63mm, offering great flexibility for your application needs.
High-Quality NBR Seals
The seals are made from nitrile rubber (NBR), which provides excellent resistance against oil and wear. This material ensures durability and long-lasting performance in demanding environments.
Designed for MGQ Series Compact Guide Rod Cylinders
These seal kits are specifically engineered to be compatible with MGQ series cylinders. These compact guide rod cylinders feature an integrated guide, and our seals fit perfectly to maintain their optimal function.
Restore Original Cylinder Performance
Replacing worn-out seals with this kit helps eliminate air leakage issues. As a result, the cylinder regains its original force and speed, ensuring efficient actuator operation.
Ensures Non-Rotating Accuracy
The seal kits are compatible with cylinders that provide precise non-rotating accuracy, ranging from ±0.04° to ±0.08°. This feature is critical for applications demanding high positional stability.
Superior Lateral Load Resistance
Featuring a slide bearing type design, the seals support more than twice the lateral load capacity compared to conventional stopper cylinders, enhancing the durability and load handling of the actuator.
Built-In Magnet for Auto Switch Detection
All kit models include built-in magnets that enable automatic switch position detection, facilitating easier control and monitoring of cylinder position.
Cost-Effective Maintenance Solution
Utilizing this seal kit for maintenance is much more economical than purchasing a new cylinder. It effectively extends the service life of your actuator, reducing overall operational costs.
Operating Conditions
The seal kits are suitable for use in temperatures ranging from -10°C to +60°C, and operating pressures between 0.1 to 1.0 MPa, making them versatile for diverse working environments.
Ideal for Simplified Inventory Management
Each bore size corresponds to a single kit number, streamlining inventory control and making it easier to keep stock organized.
Separate Grease Pack Available
For proper lubrication during installation, a grease pack (model GR-S-010, 10g) is available separately, ensuring optimal seal performance and longevity.
Technical Parameters:
| Product Type |
Seal Kit / Repair Kit |
| Kit Contents |
Piston Packing, Rod Packing, Gasket A, Gasket B |
| Series |
MGQ |
| Proof Pressure |
1.5 MPa |
| Bore Sizes |
12mm, 16mm, 20mm, 25mm, 32mm, 40mm, 50mm, 63mm |
| Operating Temperature Range |
-10°C To +60°C |
| Action Type |
Double Acting |
| Seal Material |
NBR (Nitrile Rubber) |
Applications:
Maintenance and Repair of Compact Guide Cylinders in Industrial Applications
Conveyor line stoppers play a crucial role in production lines by acting as both stoppers and positioning devices. Regular maintenance of the compact guide cylinders used in these stoppers ensures smooth operation and prevents downtime in conveyor systems.
In lifting and pushing applications, lifters and pushers rely on cylinders for controlled movement. Replacing seals in these cylinders is essential to maintain their performance and extend the lifespan of the equipment.
Pick and place units demand high precision in positioning. Repairing guided cylinders within these systems is vital to uphold accuracy and reliability in automated handling and assembly tasks.
Factory automation encompasses the use of guided cylinders in various automated production lines. Consistent maintenance efforts help to optimize their function and reduce unexpected failures.
For material handling operations, seal kits designed specifically for cylinders used in conveyors and handling systems offer an effective solution to maintain system integrity and efficiency.
Packaging machinery, including equipment for packaging and filling, depends heavily on the reliable operation of cylinders. Routine cylinder maintenance is necessary to ensure smooth and uninterrupted packaging processes.
In the field of electronic component manufacturing, precision assembly equipment incorporates cylinders that require careful repair and upkeep to maintain accuracy and production quality.
Across general industrial pneumatics, any application that relies on compact guide cylinders benefits from dependable sealing solutions. Proper maintenance guarantees the performance and longevity of pneumatic systems in diverse industrial environments.
Customization:
Introducing the SMC Pulse Valve Diaphragm, model number MGQ12-PS, a high-quality product originating from China and certified with CE standards. This diaphragm is designed for pulse valves with bore sizes ranging from 12mm to 63mm, including 12mm, 16mm, 20mm, 25mm, 32mm, 40mm, 50mm, and 63mm, making it versatile for various applications.
Part of the MGQ series, this diaphragm features a double acting action type and is made from durable NBR (Nitrile Rubber) seal material, capable of operating efficiently within a temperature range of -10°C to +60°C. With a supply ability of 5000 pieces per month, we ensure timely delivery within 1-7 work days after payment.
We accept multiple payment terms including T/T, Western Union, and Paypal, and offer flexible pricing through negotiation. Each order is carefully packaged in cartons to ensure safe transit. The minimum order quantity is just 1 piece, catering to both small and large scale needs.
This product is compatible with and can serve as a reliable replacement for ASCO series 210 diaphragm and ASCO 8210 series spare diaphragm, as well as 3/8‑2 1/2 inch solenoid valve diaphragms, providing excellent performance and durability.
Support and Services:
Our Pulse Valve Diaphragm product is designed to deliver reliable performance and long service life in demanding industrial applications. For optimal operation, it is essential to ensure proper installation, regular maintenance, and timely replacement of the diaphragm.
If you experience any issues with the pulse valve diaphragm, please verify that the diaphragm is correctly seated and free from any debris or damage. Regular inspection can prevent operational failures and extend the diaphragm’s lifespan.
We offer comprehensive technical support to assist with troubleshooting, maintenance procedures, and product selection to meet your specific application requirements. Our team of experts is dedicated to providing you with the necessary guidance to maximize the efficiency and durability of your pulse valve diaphragm.
For service and replacement parts, please refer to the product documentation for detailed instructions on removal and installation. Using genuine replacement diaphragms ensures compatibility and maintains the integrity of the pulse valve system.
We recommend adhering to the recommended operating conditions and maintenance schedules outlined in the product manual to achieve the best performance and avoid premature wear.
Should you require further technical assistance or have any questions regarding our pulse valve diaphragm, please consult the detailed product manuals and troubleshooting guides provided with your purchase.
