Product Description:

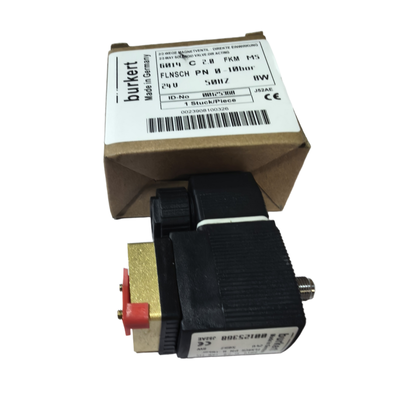

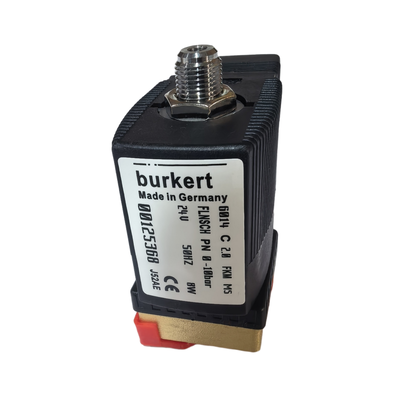

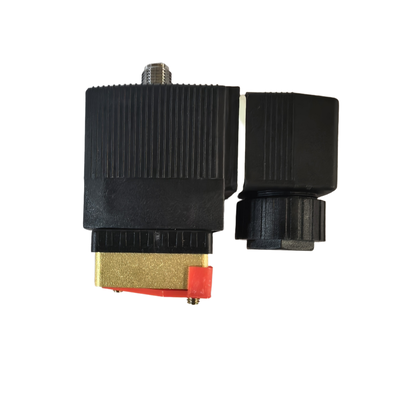

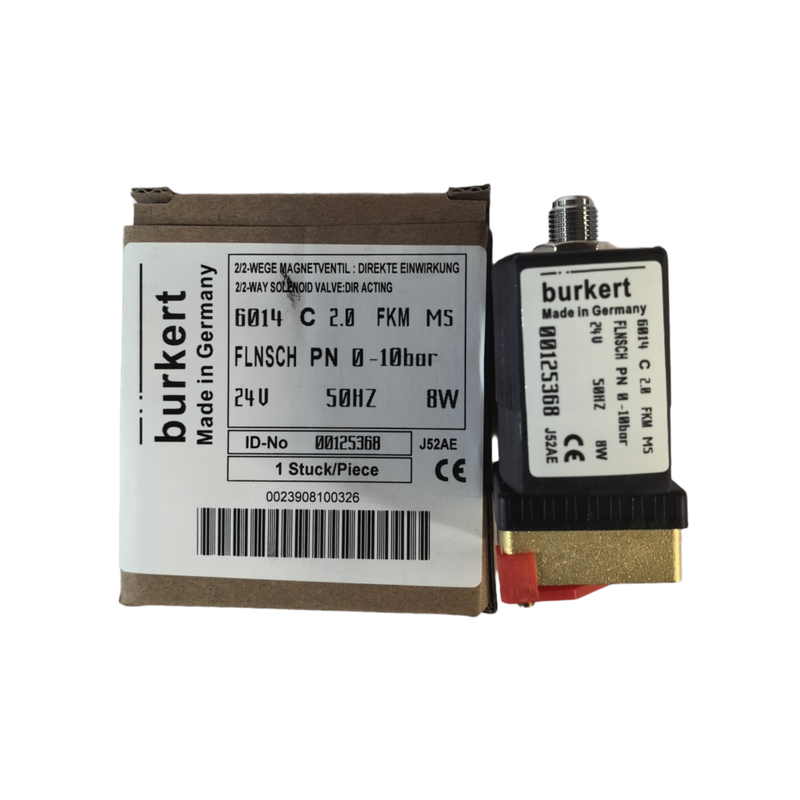

The 6014 Series Burkert Type Solenoid Valve is a versatile, direct-acting 3-way solenoid valve engineered for precise fluid control in complex pneumatic and industrial systems. Available in both 3-way normally closed (6014 C) and 3-way normally open (6014 D) configurations, this valve offers exceptional flexibility for a wide range of control applications.
Constructed with a durable brass body and featuring a direct-acting plunger mechanism, the 6014 Series delivers instantaneous response and requires no minimum pressure differential to operate. Various seal material combinations (NBR, EPDM, or FKM) are available depending on the application, ensuring compatibility with diverse media and temperature requirements. The coils are moulded with polyamide or chemically resistant epoxy for enhanced durability and protection against harsh environments.
A specific flange design (SFB) enables space-saving arrangement of valves on a manifold, making the 6014 Series an ideal choice for compact, multi-valve systems. Each unit is factory-tested to guarantee leak-free performance, consistent cycling, and long service life.
Features:
Burkert Type Design – Industry-standard 6014 configuration ensures easy integration and compatibility with existing systems.
3-Way Functionality – Available in normally closed (6014 C) and normally open (6014 D) versions to suit diverse control requirements.
Direct-Acting Operation – Instantaneous response with zero minimum pressure required; operates from 0 bar up to 16 bar depending on orifice size.
Forged Brass Construction – Corrosion-resistant body provides excellent durability for demanding industrial environments.
Multiple Seal Options – Available with NBR (–10°C to +80°C), EPDM (–30°C to +120°C), or FKM (–30°C to +150°C) to match fluid temperature and chemical compatibility requirements.
Wide Orifice & Port Selection – Choose from 1.5 mm, 2.0 mm, or 2.5 mm orifice sizes and 1/8" or 1/4" ports to fine-tune flow capacity (Kv values from 0.07 to 0.16 m³/h).
Flexible Voltage Options – Supports 12VDC, 24VDC, 24VAC, 110VAC, and 220VAC to suit diverse control systems.
Manifold-Mountable Design – Specific flange design (SFB) enables space-saving arrangement on a manifold.
Durable Coil Moulding – Coils are encapsulated in polyamide or chemically resistant epoxy for superior protection against moisture and chemicals.
Wide Media Compatibility – Handles neutral and clean liquids, gases, and light oils (depending on seal material).
Technical Parameters:
| Function |
2 Way Normally Closed |
| Material |
Brass |
| Seal Material |
NBR, EPDM, FKM |
| Operation |
Plunger Direct Acting |
| Working Temperature |
-30 To +120℃ |
| Working Pressure |
0 To 16 Bar |
| Model |
Port Size
(inch) |
Orifice Size
(mm) |
Kv
(m³/h) |
Pressure
(bar)
|
| 6014 |
1/8" |
1.5 |
0.07 |
0 to 16 |
| 1/8" |
2 |
0.11 |
0 to 10 |
| 1/8" |
2.5 |
0.16 |
0 to 6 |
| 1/4" |
1.5 |
0.07 |
0 to 16 |
| 1/4" |
2 |
0.11 |
0 to 10 |
| 1/4" |
2.5 |
0.16 |
0 to 6 |
| Sub-base (SFB) |
1.5 |
0.07 |
0 to 16 |
| Sub-base (SFB) |
2 |
0.11 |
0 to 10 |
Applications:
The 6014 Series Burkert Type 3-way brass solenoid valve is widely used across industries that require precise, reliable, and compact fluid control, including:
Pneumatic & Automation Systems – Pilot control for pneumatic actuators, cylinder directional control, and robotic automation.
Water Treatment & Management – On/off control for water lines, reverse osmosis systems, and dosing equipment.
Gas Control – Natural gas, LPG, compressed air, and industrial gas lines (with appropriate seals).
Industrial Manufacturing – Fluid dispensing, filling machines, and process control equipment.
Medical & Laboratory Devices – Precise fluid dispensing and analytical instrumentation.
HVAC & Refrigeration – Coolant flow control and heating/cooling systems.
Packaging Machinery – High-speed pneumatic valve actuation for packaging and labeling lines.
Manifold Systems – Space-saving multi-valve arrangements for complex control panels.
With its flexible 3-way configurations, robust construction, and proven reliability, the 6014 Series is the ideal solenoid valve solution for engineers seeking dependable performance in a compact, manifold-ready design.
