Product Description:

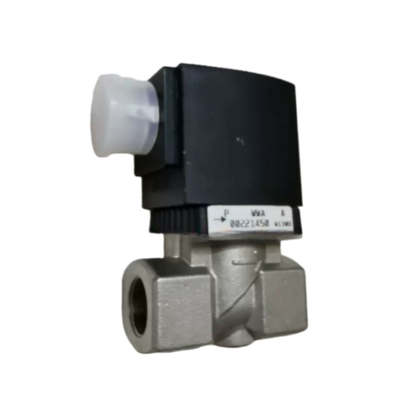

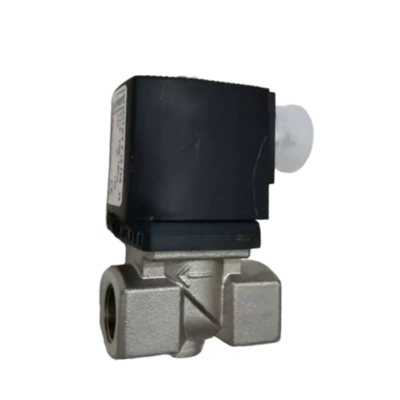

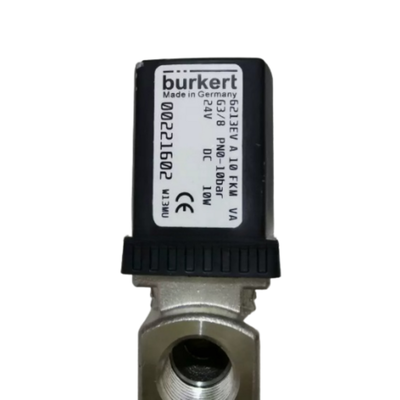

The Type 6213EV is a servo-assisted 2/2-way normally closed diaphragm solenoid valve, specifically designed to provide reliable and efficient fluid control. As part of the S.EV series, it incorporates a spring-coupled diaphragm mechanism that aids the opening process, ensuring smooth and consistent operation every time.
Crafted to meet the demands of challenging industrial environments, this valve is available with a stainless steel body made from grade 1.4408/316L, offering excellent resistance to corrosion and enhanced durability. The standard model is optimized for liquid applications and requires a minimum differential pressure to achieve full opening. For gas and vacuum uses, there is a special HP00 variant that enables the valve to open without any differential pressure.
Additionally, the Type 6213EV provides a versatile range of configurations to suit diverse requirements. These include multiple port sizes ranging from G 3/8" up to G 2", nominal diameters from DN 10 to DN 40, and a selection of seal materials such as NBR, FKM, and EPDM. This flexibility allows for precise customization according to your specific fluid control demands.
Features:
The valve features a servo-assisted operation mechanism, utilizing a spring-coupled diaphragm system that facilitates smooth and reliable opening and closing actions. This design ensures consistent performance under various operating conditions.
For applications involving gas or vacuum, a special HP00 version is available that can open without requiring differential pressure. This zero differential pressure option enhances versatility in specialized environments.
Constructed from stainless steel grade 1.4408 (316L), the valve body offers exceptional corrosion resistance and long-lasting durability, making it suitable for harsh and demanding industrial settings.
Despite its compact design, the valve supports high flow rates with nominal diameters reaching up to DN 40. This allows for efficient fluid handling without compromising space or performance.
The damping design minimizes noise during operation and effectively eliminates water hammer effects, promoting quieter and safer system performance.

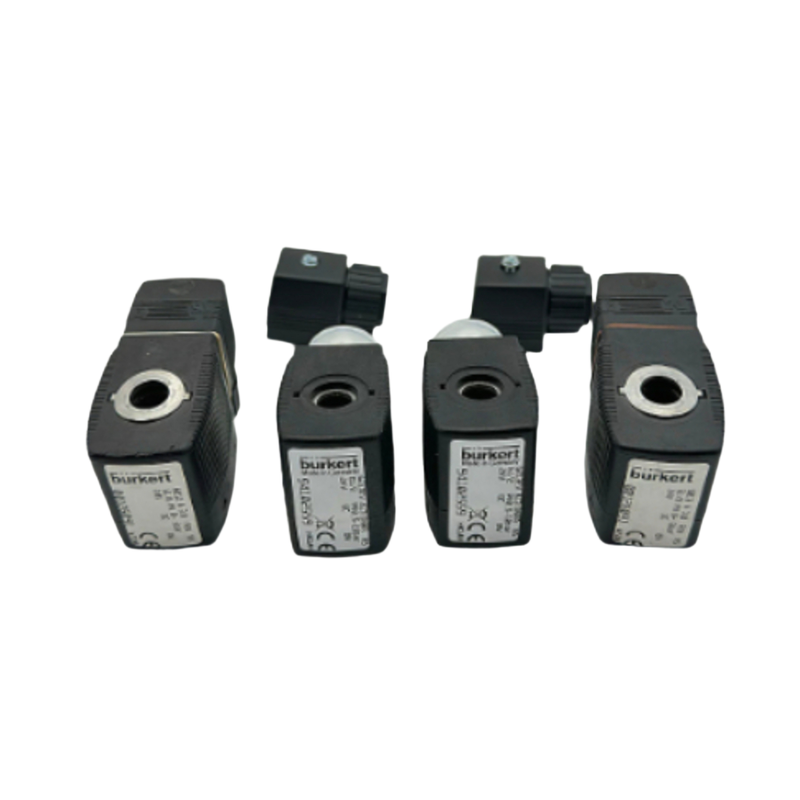

An energy-saving coil option is available featuring Kick-and-Drop (KD) double coil technology, which helps reduce power consumption during holding operations, contributing to overall energy efficiency.
The valve supports a wide range of media compatibility thanks to multiple available seal materials including NBR, FKM, and EPDM. These materials allow operation within a temperature range from -30°C up to +120°C.
With the appropriate cable plug, the valve achieves a high protection class of IP65, while the stainless steel body variant complies with NEMA 4X standards, ensuring robust protection against environmental factors.
The coil system is designed to be vibration-proof through a screwed coil configuration, guaranteeing reliable operation in challenging and vibration-prone environments.
For hazardous area installations, explosion-proof variants are available that hold ATEX and IECEx approvals, ensuring safe use in potentially explosive atmospheres.
This valve supports a 100% duty cycle, enabling continuous operation which is essential for demanding industrial applications that require uninterrupted performance.
Versatility is further enhanced by offering various port sizes ranging from G 3/8" up to G 2", as well as NPT connections, allowing integration with a wide variety of piping systems.
Technical Parameters:
| Pressure | 0 To 10 Bar |
| Temperature | Max. 55 ℃ |
| Function | 2 Way Normally Closed |
| Seal Materials | NBR, FKM, EPDM |
| Nominal Diameters | DN 10 To DN 40 |
| Body Material | Stainless Steel 316L |
| Voltages | 24VDC, 110VAC, 230VAC |
| Port Connections | G3/8″ To G2″; NPT3/4″ |
Applications:
The versatile Type 6213EV valve is designed to meet the demands of a broad spectrum of industrial fluid control applications. Its adaptability makes it an ideal choice for various sectors requiring reliable fluid management.
In the field of water treatment, the Type 6213EV is widely used in municipal and industrial water treatment plants, as well as in swimming pool technology, ensuring efficient and safe water handling.
For industrial fluid control, this model excels in the shut-off, dosing, and regulation of neutral liquids, water, and hydraulic oil, providing precise and dependable performance in diverse process environments.
When it comes to gas and vacuum systems, the Type 6213EV supports compressed air systems and technical vacuum applications, especially when equipped with the HP00 version for enhanced capabilities.
Additionally, the valve serves heating and cooling systems, including HVAC applications and various temperature control circuits, contributing to energy-efficient and stable operation.
In process industries such as chemical and pharmaceutical manufacturing, the Type 6213EV handles compatible neutral media safely and effectively, adhering to strict quality standards.
For combustion installations, it operates as a safety shut-off device for burners and heating systems, ensuring operational security and compliance with safety regulations.
The valve is also suitable for oil and hydraulic systems, controlling hydraulic oil and oil without additives with high reliability.
Finally, in the food and beverage sector, it is utilized for the processing of neutral fluids and water, maintaining hygiene and process integrity in production environments.
