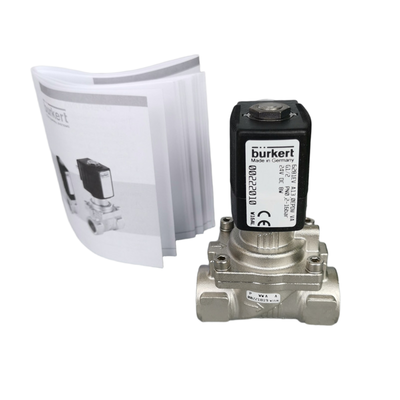

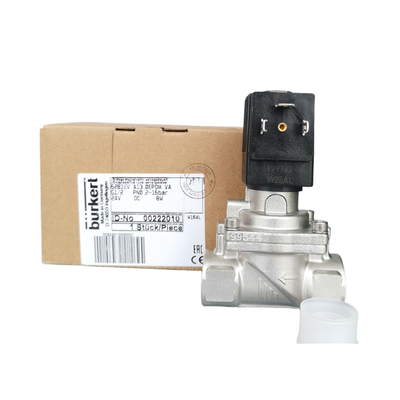

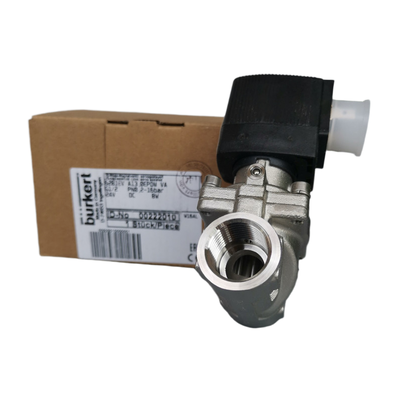

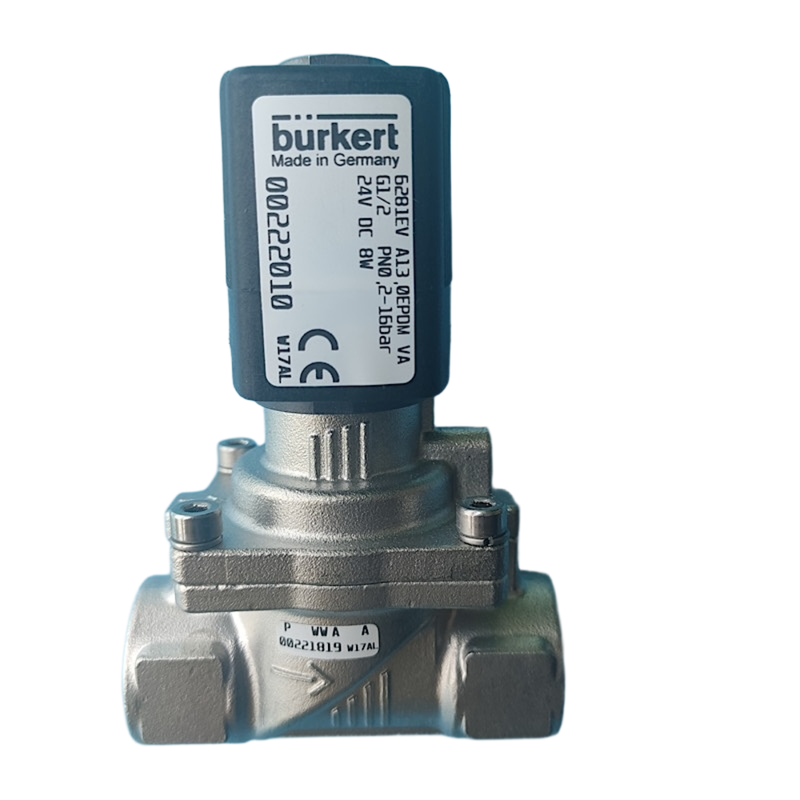

Product Description:
The Type 6281 EV is a servo-assisted 2/2-way diaphragm solenoid valve, specifically designed to provide reliable and efficient control over neutral media. It belongs to the S.EV series and is suitable for handling both liquids and gases, including compressed air and water.
Engineered to withstand challenging industrial conditions, this valve comes with an option of a stainless steel body, ensuring exceptional corrosion resistance and long-lasting durability. It operates with a minimal differential pressure and incorporates a damped mechanism that promotes quiet closing, effectively preventing water hammer effects.
Offering a wide range of port sizes, seal materials, and versions certified by ATEX, the Type 6281 EV delivers the versatility required for precise customization. This makes it an excellent choice for various fluid control applications, accommodating specific operational needs with ease.
Features:
Servo-Assisted Operation
The device utilizes a servo-assisted diaphragm mechanism to ensure reliable and precise control over the flow of fluids and gases. This advanced technology enhances operational accuracy and responsiveness.
Stainless Steel Construction
Constructed with a stainless steel body, the unit offers exceptional resistance to corrosion and increased durability, making it suitable for demanding environments.
High Flow Capacity
Despite its compact size, the product delivers a high flow rate (Kv), accommodating orifice sizes up to DN 50. This capability enables efficient handling of substantial fluid volumes.
Water Hammer Free & Low Noise
Featuring a damped design, the system operates with quiet closing actions and effectively protects the piping network from pressure surges, preventing water hammer effects.
Versatile Seal Options
The device is available with NBR or FKM seals, allowing compatibility with a broad range of media and temperature conditions to meet varied application requirements.
ATEX Certification
Explosion-proof variants are offered for use in hazardous areas, complying with ATEX standards to ensure safety and reliability under potentially explosive atmospheres.
Multiple Port Sizes
The product supports various port sizes ranging from G 1/2" to G 2", providing flexibility to integrate with different piping systems seamlessly.
High Protection Class
With the appropriate cable plug, the unit achieves an IP65 protection rating. Additionally, the stainless steel version complies with NEMA 4X standards, ensuring robust protection against environmental factors.
100% Duty Cycle
Designed for continuous operation, the device supports a 100% duty cycle, making it suitable for applications that demand nonstop performance.
Compact Installation Length
Its design focuses on minimizing installation length, which helps save valuable space during setup and integration into existing systems.
Service-Friendly Manual Override
For ease of maintenance and commissioning, the device can be equipped with a manual override feature, allowing manual control when necessary.
Energy-Saving Coil Option
An optional coil with electronic power reduction is available, which significantly lowers energy consumption without compromising performance.
Technical Parameters:
| Voltages | 24V DC, 24V AC, 110V AC, 230V AC |
| Seal Materials | NBR; FKM |
| Body Material | Stainless Steel |
| Protection Class | IP65 |
| Temperature Range | -10°C To +80°C (NBR); 0°C To +120°C (FKM) |
| Orifice Sizes (DN) | 13㎜ To 50㎜ |
| Valve Function | 2 Way Normally Closed; 2 Way Normally Open |
| Port Sizes | G3/8" To G2" |
Applications:
The versatile Type 6281 EV valve finds extensive application across various industrial sectors. Its adaptability makes it an essential component in many systems that require precise and reliable control.
In water treatment facilities, it is utilized to manage and regulate water flow efficiently within treatment plants and related systems. This ensures optimal operation and safety throughout the water purification process.
When it comes to heating and cooling systems, the Type 6281 EV plays a crucial role in HVAC setups and industrial temperature control circuits, maintaining the desired environmental conditions consistently.
For compressed air systems, this valve provides dependable on/off control, ensuring straightforward and effective management of compressed air supply in diverse industrial environments.
Within industrial automation, the Type 6281 EV is employed to handle the control of various fluids and gases on automated production lines, facilitating smooth and continuous manufacturing processes.
The valve is also suitable for use in technical vacuum systems, offering reliable performance under vacuum conditions to support sensitive and precise applications.
Special ATEX-approved versions of the Type 6281 EV are available, making them perfectly suited for operation in hazardous and explosive atmospheres, thereby enhancing safety and compliance.
Lastly, in general fluid control scenarios, this valve is used for shut-off, dosing, and regulation of neutral liquids including water and oils, providing versatile solutions to meet diverse industrial needs.
Support and Services:
Our Pneumatic Solenoid Valve product is designed to provide reliable and efficient control of air flow in various pneumatic systems. For technical support, please refer to the product manual for installation, operation, and maintenance guidelines to ensure optimal performance.
If you encounter any issues with the solenoid valve, first verify the power supply and electrical connections, and ensure that the valve is compatible with your system specifications. Regular maintenance, including cleaning and inspection of valve components, can help prevent common problems such as sticking or leakage.
For advanced troubleshooting, consult the troubleshooting section in the product documentation, which covers common faults, diagnostic procedures, and recommended corrective actions. Replacement parts and accessories are available to maintain or upgrade your valve system as needed.
Our technical support team is committed to assisting you with any inquiries related to product functionality, installation advice, and performance optimization. Please have your product model number and purchase details ready when seeking support to facilitate a quicker response.
We also offer training and consultation services to help you maximize the benefits of your Pneumatic Solenoid Valve and integrate it seamlessly into your applications.
Packing and Shipping:
Product Packaging:
The Pneumatic Solenoid Valve is carefully packaged to ensure protection during transit. Each valve is placed in an anti-static bag to prevent moisture and dust damage, then securely packed in a custom-fitted foam insert within a sturdy cardboard box. The packaging is designed to minimize movement and absorb shocks, ensuring the product arrives in perfect condition.
Shipping:
We offer reliable shipping options worldwide. Once the order is processed, the Pneumatic Solenoid Valve is dispatched promptly with tracking information provided. Shipping methods include standard and expedited services, with delivery times depending on the destination. We partner with trusted carriers to ensure timely and safe delivery of your product.
