Product Description:

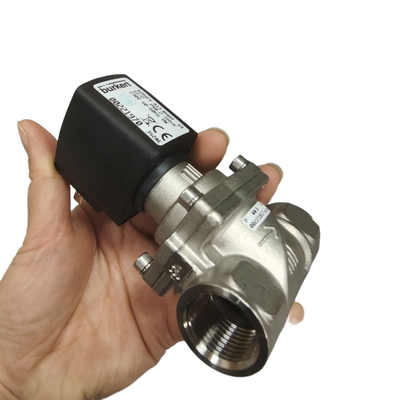

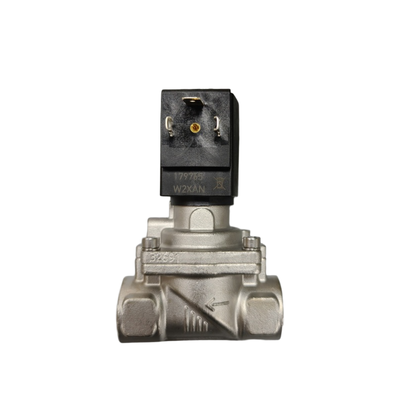

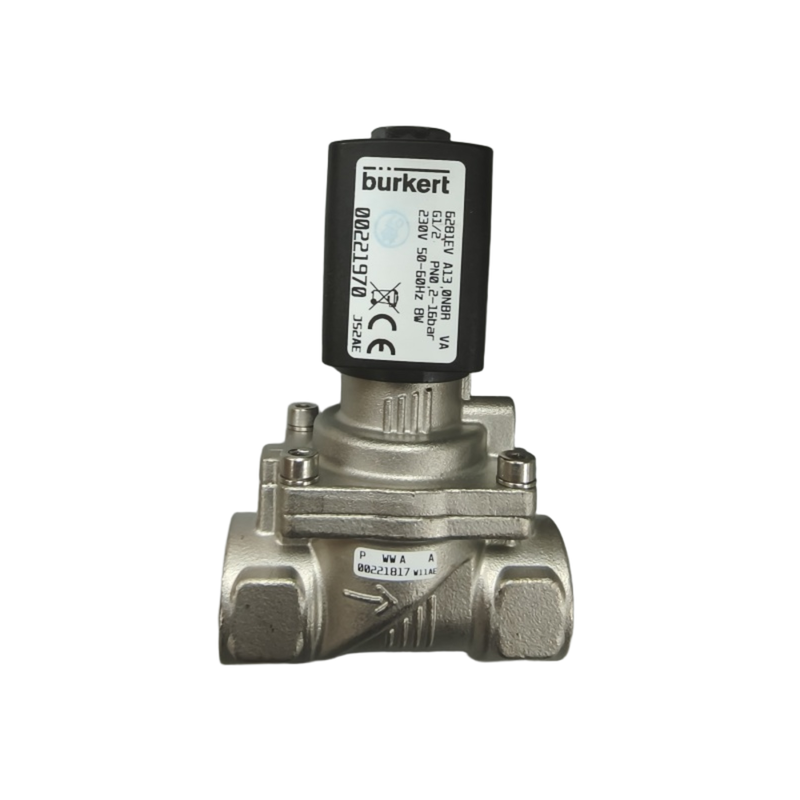

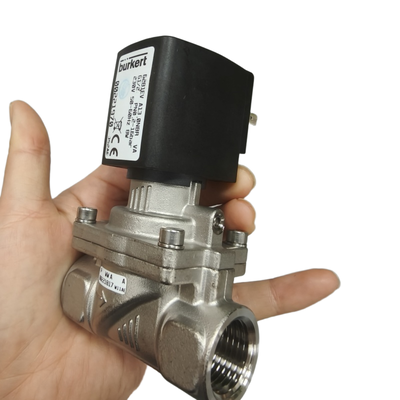

The Type 6281 EV is a servo-assisted 2/2-way diaphragm solenoid valve, specifically engineered to provide reliable and efficient control of neutral media. It belongs to the S.EV product series and is suitable for handling various liquids and gases, including compressed air and water.
Designed to withstand the challenges of demanding industrial environments, this valve is available with a stainless steel body, offering excellent resistance to corrosion and enhanced durability. It operates with a minimal differential pressure and incorporates a damped mechanism that guarantees quiet closure while preventing water hammer effects.
With multiple port size options, a range of seal materials, and versions certified to ATEX standards, the Type 6281 EV provides the versatility needed for precise customization. This makes it an ideal choice for a wide variety of specific fluid control applications.
Features:
Servo-Assisted Operation
This device features a servo-assisted diaphragm, ensuring dependable and accurate control over fluids and gases. The servo assistance enhances precision and operational reliability in various applications.
Stainless Steel Construction
Constructed with a stainless steel body, the equipment offers exceptional resistance to corrosion and increased durability. This robust material choice ensures long-lasting performance even in harsh environments.
High Flow Capacity
Despite its compact dimensions, the product delivers a high flow rate (Kv), with available orifice sizes up to DN 50. This allows for efficient fluid handling in systems requiring substantial throughput.
Water Hammer Free & Low Noise
Its damped design minimizes noise during operation and prevents water hammer effects, thereby protecting the entire system from pressure surges and potential damage.
Versatile Seal Options
The valve is offered with either NBR or FKM seals, catering to a broad spectrum of media types and temperature ranges. This flexibility makes it suitable for diverse industrial environments.
ATEX Certification
Explosion-proof variants are available, making the device compliant with ATEX standards and safe for use in hazardous areas where explosive atmospheres may occur.
Multiple Port Sizes
To accommodate different piping requirements, the product comes in various port sizes ranging from G 1/2" to G 2". This variety ensures easy integration into existing systems.
High Protection Class
With the appropriate cable plug, the device achieves an IP65 protection rating. Additionally, the stainless steel version adheres to NEMA 4X standards, offering high resistance against environmental factors.
100% Duty Cycle
Designed for continuous operation, the valve supports a full 100% duty cycle without compromising performance or reliability.
Compact Installation Length
Its compact design helps save valuable installation space, making it ideal for systems where space efficiency is critical.
Service-Friendly Manual Override
For ease of maintenance and commissioning, the valve can be equipped with a manual override function. This feature simplifies servicing without interrupting system operation.
Energy-Saving Coil Option
The coils are available with an electronic power reduction option, enabling lower energy consumption while maintaining effective operation, contributing to overall energy savings.
Technical Parameters:
| Voltages |
24V DC, 24V AC, 110V AC, 230V AC |
| Temperature Range |
-10°C To +80°C (NBR); 0°C To +120°C (FKM) |
| Port Sizes |
G3/8" To G2" |
| Orifice Sizes (DN) |
13㎜ To 50㎜ |
| Body Material |
Stainless Steel |
| Valve Function |
2 Way Normally Closed；2 Way Normally Open |
| Protection Class |
IP65 |
| Seal Materials |
NBR；FKM |
This pneumatic solenoid valve is an ideal air valve solution, designed as a pilot diaphragm solenoid valve to ensure reliable air valve operation in various applications.
Applications:
The versatile Type 6281 EV valve finds extensive use across a variety of industrial sectors, demonstrating its adaptability and reliability.
In water treatment facilities, it plays a crucial role in managing and controlling the flow of water through different treatment plants and systems, ensuring efficient operation.
Within heating and cooling applications, the Type 6281 EV is commonly integrated into HVAC systems as well as industrial temperature regulation circuits, providing precise control.
For compressed air systems, it offers dependable on/off control, maintaining the integrity and performance of the air supply network.
In the field of industrial automation, this valve is utilized to regulate both fluids and gases along automated production lines, enhancing process consistency and safety.
The Type 6281 EV is also suitable for technical vacuum systems, where it helps maintain the necessary vacuum conditions for various applications.
Moreover, ATEX-certified versions of this valve are specifically designed to operate safely in hazardous environments with explosive atmospheres, meeting stringent safety standards.
Overall, the valve excels in general fluid control tasks, including shut-off, dosing, and regulation of neutral liquids such as water and oils, making it a dependable component in many industrial processes.
Support and Services:
Our Pneumatic Solenoid Valve product is designed to provide reliable and efficient control of pneumatic systems. For technical support, we offer comprehensive assistance including installation guidance, troubleshooting, and maintenance tips to ensure optimal performance.
Our support team is equipped to help you with product selection, system integration, and addressing any operational issues you may encounter. We also provide detailed product documentation, including datasheets, wiring diagrams, and user manuals to facilitate proper usage.
In addition to technical support, we offer a range of services such as product customization, repair services, and training sessions to help your team maximize the benefits of our Pneumatic Solenoid Valves. Our goal is to ensure you achieve maximum efficiency and longevity from our products.
For warranty information and service policies, please refer to the accompanying documentation provided with the product. We are committed to delivering high-quality support and services to meet your pneumatic control needs.
Packing and Shipping:
Product Packaging: Each Pneumatic Solenoid Valve is carefully packaged in a sturdy, corrosion-resistant box to ensure protection during transit. The valve is wrapped in anti-static foam and sealed in a plastic bag to prevent dust and moisture damage. Clear labeling with product specifications and handling instructions is provided on the outer packaging.
Shipping: The Pneumatic Solenoid Valve is shipped using reliable carriers with tracking services to ensure timely and safe delivery. Depending on the destination, options for expedited or standard shipping are available. All shipments include appropriate documentation such as the packing list, invoice, and certificate of conformity if required.
