Product Description:

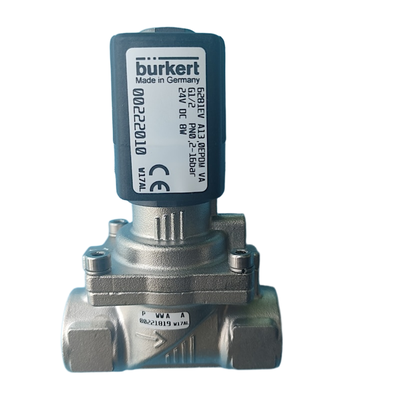

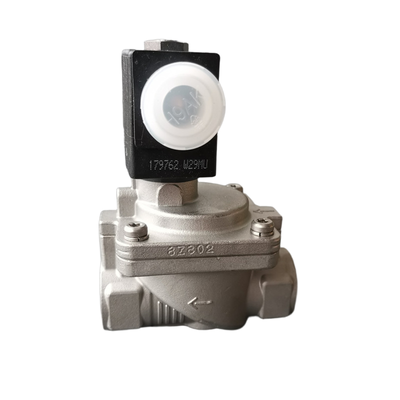

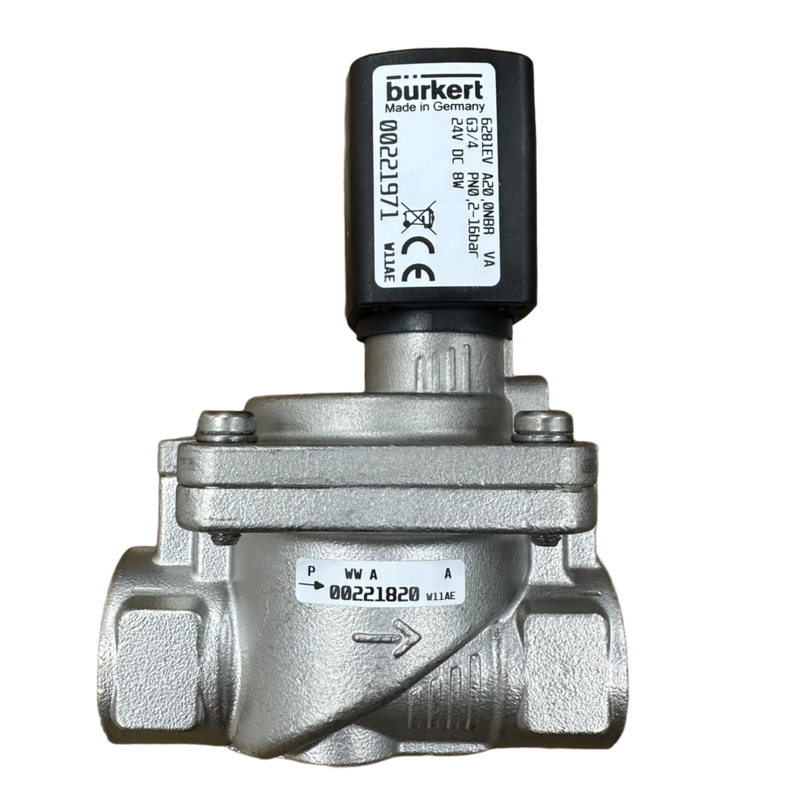

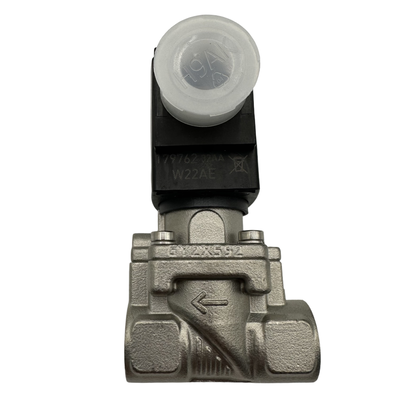

The Type 6281 EV is a servo-assisted, 2/2-way diaphragm solenoid valve that is specifically designed to provide reliable and efficient control of neutral media. As a member of the S.EV series, this valve is suitable for handling various liquids and gases, including compressed air and water.
Engineered to withstand demanding industrial conditions, the valve is available with a stainless steel body, offering excellent corrosion resistance and enhanced durability. Its operation requires only a minimal differential pressure, making it efficient for various applications.
Additionally, the Type 6281 EV features a damped design which ensures quiet closing action and effectively eliminates water hammer effects. It comes with multiple options for port sizes and seal materials, and ATEX-certified versions are also available. This wide range of configurations provides the necessary flexibility for precise adaptation to your specific fluid control needs.
Features:
Servo-Assisted Operation: This device utilizes a servo-assisted diaphragm to ensure reliable and precise control over the flow of fluids and gases. This technology enhances the performance and responsiveness of the system.
Stainless Steel Construction: The main body is crafted from stainless steel, providing exceptional corrosion resistance and outstanding durability, making it suitable for demanding environments.
High Flow Capacity: Despite its compact size, the device offers a high flow rate (Kv), with orifice sizes available up to DN 50, allowing for efficient fluid handling in various applications.
Water Hammer Free & Low Noise: Featuring a damped design, this product guarantees quiet operation by preventing water hammer effects, thus safeguarding the system from pressure surges.
Versatile Seal Options: It comes with seal options including NBR and FKM, enabling compatibility with a wide range of media and temperature conditions.
ATEX Certification: Explosion-proof versions of this device are available, making it safe and compliant for use in hazardous and explosive environments.
Multiple Port Sizes: The valve is offered in various port sizes ranging from G 1/2" to G 2", ensuring easy integration with different piping systems.
High Protection Class: With the correct cable plug, it achieves an IP65 rating, while the stainless steel variant complies with NEMA 4X standards, providing robust protection against dust and water.
100% Duty Cycle: Designed for continuous operation, this product can perform reliably without the need for downtime or rest periods.
Compact Installation Length: Its space-saving design simplifies installation in tight or constrained spaces.
Service-Friendly Manual Override: Equipped with an optional manual override feature, it allows for easy maintenance and commissioning when needed.
Energy-Saving Coil Option: The coils can be supplied with electronic power reduction technology, helping to lower energy consumption during operation.
Technical Parameters:
| Voltages |
24V DC, 24V AC, 110V AC, 230V AC |
| Protection Class |
IP65 |
| Valve Function |
2 Way Normally Closed; 2 Way Normally Open |
| Temperature |
-10°C To +80°C (NBR); 0°C To +120°C (FKM) |
| Orifice Sizes (DN) |
13㎜ To 50㎜ |
| Port Sizes |
G3/8" To G2" |
| Body Material |
Stainless Steel |
| Seal Materials |
NBR; FKM |
This pneumatic solenoid valve is suitable as an air valve, light oil valve, and water valve, offering reliable performance across various applications.
Applications:
The versatile Type 6281 EV valve finds extensive use across various industrial sectors, demonstrating its adaptability and reliability.
In the realm of water treatment, it plays a crucial role in managing water flow within treatment plants and associated systems, ensuring efficient and precise control.
For heating and cooling applications, the Type 6281 EV is commonly employed in HVAC systems as well as industrial temperature control circuits, providing dependable regulation of fluid movement.
Compressed air systems benefit from this valve through its consistent on/off control capabilities, making it an essential component for maintaining system integrity.
Furthermore, in industrial automation, it is utilized to regulate fluids and gases along automated production lines, facilitating smooth and safe operation.
The valve is also suitable for use in technical vacuum systems, offering reliable performance under specialized conditions.
For environments classified as hazardous, the ATEX-approved versions of the Type 6281 EV are specifically designed to operate safely within explosive atmospheres.
Lastly, it serves general fluid control needs by effectively handling shut-off, dosing, and regulation tasks for neutral liquids, water, and oils.
Support and Services:
Our Pneumatic Solenoid Valve product is designed for reliable and efficient operation in various industrial applications. To ensure optimal performance, please follow the installation and maintenance guidelines provided in the product manual.
If you experience any issues with the valve, first verify that the electrical connections and pneumatic lines are properly installed and free from damage. Regularly inspect and clean the valve components to prevent clogging and wear.
For troubleshooting, refer to the troubleshooting section in the user manual, which covers common problems such as valve not actuating, air leakage, or abnormal noises. Ensure that the power supply matches the valve specifications and that the control signals are accurate.
Our technical support team is available to assist with any product-related inquiries or technical challenges. We offer comprehensive services including installation guidance, maintenance tips, and repair support to maximize the lifespan and efficiency of your Pneumatic Solenoid Valve.
For detailed documentation, spare parts, and software updates, please consult our official website or authorized distributors. We are committed to providing high-quality support to ensure your satisfaction and the smooth operation of your pneumatic systems.
Packing and Shipping:
Product Packaging: Each Pneumatic Solenoid Valve is carefully packaged in a sturdy, custom-designed box to ensure maximum protection during transit. The valve is wrapped in anti-static bubble wrap and secured with foam inserts to prevent any movement or damage. The packaging includes a user manual, warranty card, and necessary installation accessories. All boxes are clearly labeled with product specifications and handling instructions.
Shipping: We offer reliable and fast shipping services worldwide. Orders are processed within 1-2 business days and shipped via trusted carriers to guarantee timely delivery. Each package is tracked and insured to provide peace of mind. For bulk orders, special freight arrangements can be made upon request. Please ensure the shipping address is accurate to avoid delays.
