Product Description:

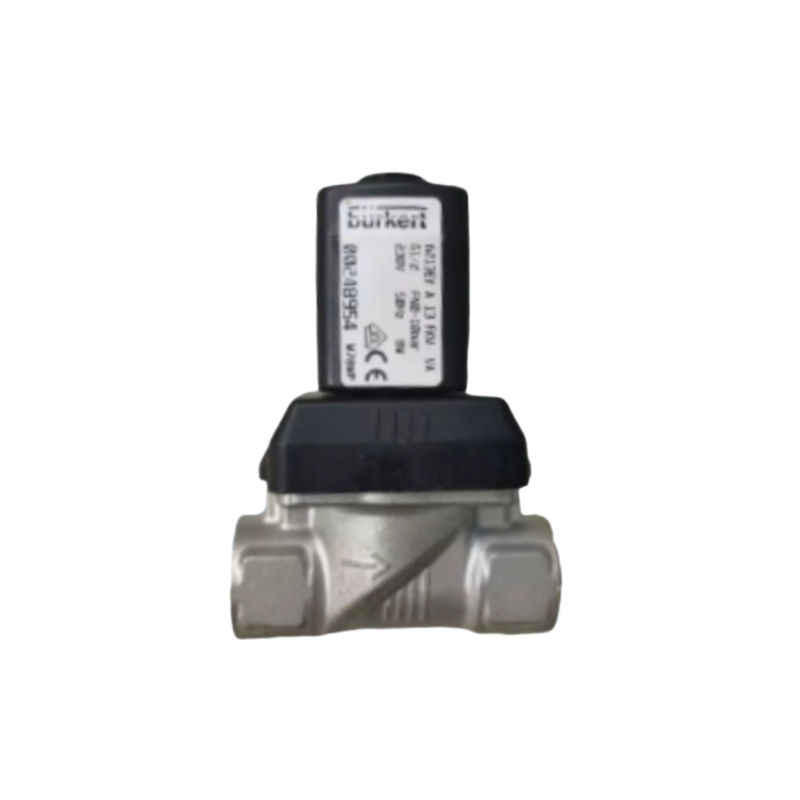

The Type 6213EV is a servo-assisted, 2/2-way normally closed diaphragm solenoid valve designed to provide reliable and efficient control of fluids. It belongs to the S.EV series and incorporates a spring-coupled diaphragm mechanism that aids in the valve opening process, guaranteeing smooth and consistent operation every time.
Built to withstand demanding industrial conditions, this valve comes with an option of a stainless steel body made from grade 1.4408/316L. This construction ensures excellent resistance to corrosion and enhances the valve’s overall durability. The standard model is well-suited for liquid applications and requires a minimum differential pressure to achieve full opening. For gas and vacuum uses, there is a special HP00 variant available, which can open the valve without the need for any differential pressure.
The Type 6213EV is highly versatile, offering multiple configurations to meet diverse fluid control requirements. Users can select from a variety of port sizes ranging from G 3/8" up to G 2", nominal diameters between DN 10 and DN 40, and different seal materials including NBR, FKM, and EPDM. This flexibility allows for precise customization to fit specific application needs.
Features:
The valve features a servo-assisted operation with a spring-coupled diaphragm system that supports both opening and closing actions, ensuring reliable and consistent performance in various applications.
A special HP00 version is available with a zero differential pressure option, enabling the valve to open without requiring differential pressure. This makes it particularly suitable for gas and vacuum applications where pressure conditions vary.
Constructed from stainless steel 1.4408 (316L), the valve body offers exceptional corrosion resistance and durability, making it ideal for demanding environments that require long-lasting materials.
Despite its compact design, the valve provides high flow rates with nominal diameters reaching up to DN 40, delivering excellent flow capacity without sacrificing space efficiency.
The valve's damped design guarantees quiet closing and prevents water hammer effects, resulting in smooth operation that protects the piping system and reduces noise levels.

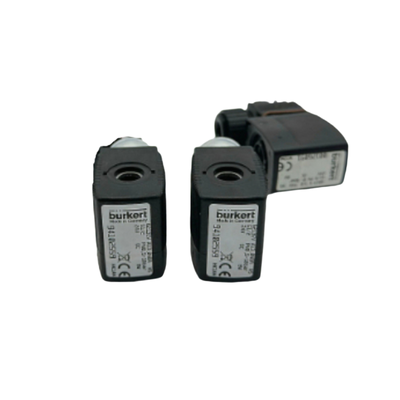

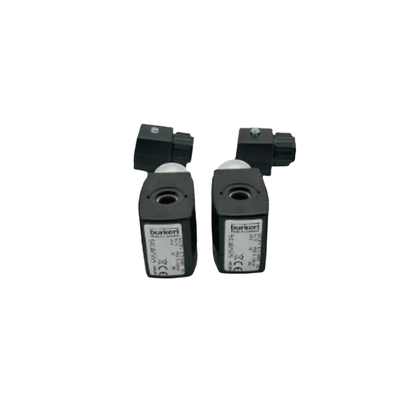

An energy-saving coil option is available, incorporating Kick-and-Drop (KD) double coil technology. This technology helps reduce power consumption during the holding phase, making the system more energy-efficient.
Designed for wide media compatibility, the valve supports multiple seal materials including NBR, FKM, and EPDM, allowing it to handle temperatures ranging from -30°C up to +120°C.
With an IP65 protection rating when equipped with the correct cable plug, and a stainless-steel body version compliant with NEMA 4X standards, the valve ensures high protection against dust and water ingress.
The screwed coil system provides vibration-proof operation, securing reliable functionality even in demanding and high-vibration environments.
For hazardous area installations, explosion-proof variants with ATEX/IECEx approvals are available, ensuring compliance with safety standards in potentially explosive atmospheres.
This valve supports a 100% duty cycle, allowing continuous operation to meet the needs of intensive industrial processes without interruption.
To accommodate a variety of piping systems, the valve comes in versatile port sizes ranging from G 3/8" to G 2", as well as NPT connections, providing flexibility for installation.
Technical Parameters:
| Voltages |
24VDC, 110VAC, 230VAC |
| Pressure |
0 To 10 Bar |
| Seal Materials |
NBR, FKM, EPDM |
| Port Connections |
G3/8″ To G2″; NPT3/4″ |
| Function |
2 Way Normally Closed |
| Temperature |
Max. 55 ℃ |
| Nominal Diameters |
DN 10 To DN 40 |
| Body Material |
Stainless Steel 316L |
Applications:
The Type 6213EV is a highly versatile device designed for a broad spectrum of industrial fluid control applications. Its adaptability makes it an excellent choice across various sectors requiring reliable fluid management solutions.
In the field of water treatment , the Type 6213EV is well-suited for use in municipal and industrial water treatment plants as well as swimming pool technology, ensuring effective and efficient water management.
For industrial fluid control , it provides precise shut-off, dosing, and regulation capabilities for neutral liquids such as water and hydraulic oil, supporting smooth operation in various manufacturing processes.
The device also caters to gas and vacuum systems , including compressed air systems and technical vacuum applications, especially when integrated with the HP00 version for enhanced performance.
When it comes to heating and cooling systems , the Type 6213EV is utilized in HVAC applications and temperature control circuits, contributing to stable and efficient climate regulation.
Its applicability extends to process industries like chemical and pharmaceutical processing, where it handles compatible neutral media with high reliability and safety.
In combustion installations , the device serves as a critical safety shut-off component for burners and heating systems, promoting secure operation.
Moreover, the Type 6213EV is effective in oil and hydraulic systems , managing the control of hydraulic oil and oils without additives to optimize system performance.
Finally, the device finds important uses in the food and beverage industry , particularly in processing neutral fluids and water within food production environments, adhering to strict hygiene standards.
Support and Services:
Our Pneumatic Solenoid Valve product is designed to deliver reliable and efficient performance in various industrial applications. For technical support, we provide comprehensive assistance including installation guidance, troubleshooting tips, and maintenance recommendations to ensure optimal operation.
We offer detailed product manuals and datasheets that cover specifications, wiring diagrams, and operational parameters. Our support team is equipped to help with configuration advice and to resolve any issues related to valve functionality or compatibility.
Additionally, we provide repair and replacement services for defective units within the warranty period. Customization options and application-specific solutions are also available to meet unique customer requirements.
To maximize the lifespan and performance of your Pneumatic Solenoid Valve, regular inspection and cleaning are recommended as outlined in the maintenance section of the product documentation.
For further technical support and service inquiries, please refer to the official support channels provided with your product purchase.
Packing and Shipping:
Product Packaging: Each Pneumatic Solenoid Valve is carefully packaged to ensure maximum protection during transit. The valve is first wrapped in anti-static foam and sealed in a plastic bag to prevent moisture and dust ingress. It is then placed in a custom-fitted cardboard box with additional padding materials to minimize movement and absorb shocks. The outer carton is labeled with product details, handling instructions, and barcodes for easy identification and inventory management.
Shipping: We offer reliable shipping options to deliver your Pneumatic Solenoid Valve safely and promptly. Products are shipped via trusted courier services with tracking available for all orders. Depending on the destination, we provide standard, expedited, and express shipping methods. All shipments comply with international shipping regulations, and necessary documentation, such as commercial invoices and packing lists, are included to facilitate smooth customs clearance.
