Product Description:

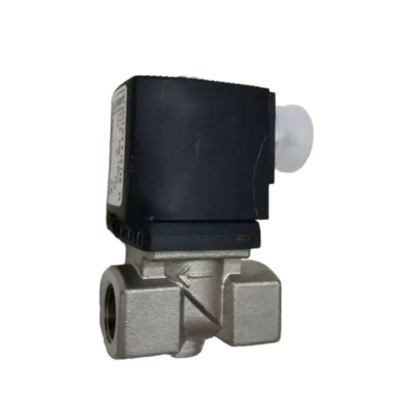

The Type 6213EV is a servo-assisted 2/2-way normally closed diaphragm solenoid valve, designed to provide reliable and efficient control of fluid flow. As a member of the S.EV series, it incorporates a spring-coupled diaphragm that facilitates the valve opening process, ensuring smooth and consistent performance.
Engineered for challenging industrial applications, this valve comes in a stainless steel body made from 1.4408/316L grade material, offering excellent resistance to corrosion and long-lasting durability. The standard model is intended for liquid usage and requires a minimum differential pressure to achieve full valve opening. For gas and vacuum situations, a special HP00 version is offered, which allows the valve to open without any differential pressure.
Additionally, the Type 6213EV is available in a variety of configurations to meet diverse operational requirements. These options include multiple port sizes ranging from G 3/8" to G 2", nominal diameters between DN 10 and DN 40, and different sealing materials such as NBR, FKM, and EPDM. This versatility enables precise customization to suit your particular fluid control demands.
Features:
The valve features a servo-assisted operation through a spring-coupled diaphragm system, which supports smooth opening and closing actions, ensuring reliable and consistent performance under various conditions.
For specialized requirements, the HP00 version offers a zero differential pressure option, allowing the valve to open without any differential pressure. This makes it particularly suitable for gas and vacuum applications where minimal pressure difference is essential.
Constructed from stainless steel grade 1.4408 (316L), the valve body provides excellent corrosion resistance and long-lasting durability, making it ideal for harsh and demanding environments.
Despite its compact design, the valve supports high flow rates with nominal diameters available up to DN 40, delivering outstanding flow capacity without sacrificing compactness.
The valve’s damped design prevents water hammer effects and ensures quiet and smooth closing, enhancing system reliability and reducing noise pollution.

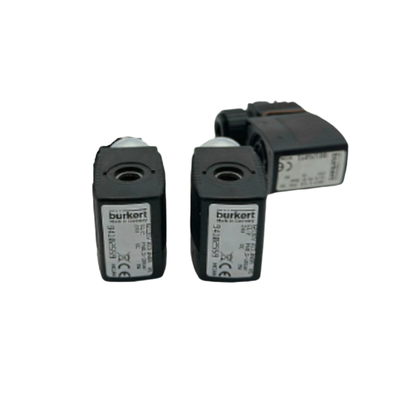

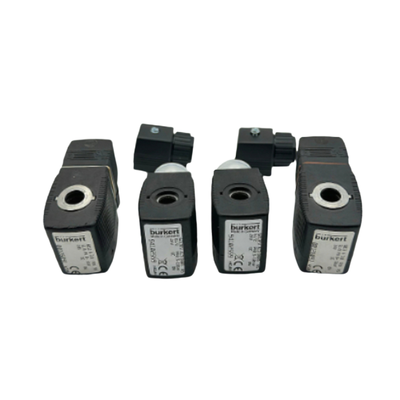

An energy-saving coil option is offered with Kick-and-Drop (KD) double coil technology, significantly reducing power consumption during holding operation and promoting more efficient energy use.
The valve supports wide media compatibility by offering multiple seal materials, including NBR, FKM, and EPDM, which can handle temperature ranges from -30°C up to +120°C, accommodating various industrial applications.

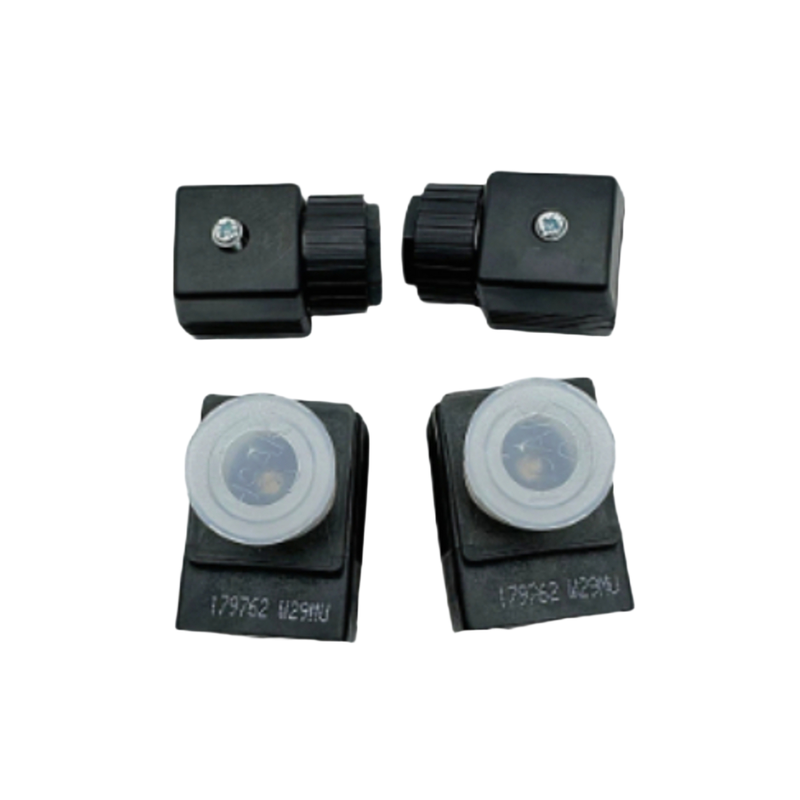

Ensuring high protection standards, the valve achieves an IP65 rating when fitted with the correct cable plug. Additionally, the stainless steel body version complies with NEMA 4X standards to withstand harsh environmental conditions.
To guarantee secure operation even in environments subject to vibration, the valve incorporates a screwed coil system that prevents loosening and maintains performance reliability.
For installations in hazardous areas, explosion-proof variants are available, certified with ATEX and IECEx approvals, ensuring safety and compliance with industry regulations.
Designed for demanding industrial applications, the valve supports a 100% duty cycle, allowing continuous operation without the risk of overheating or failure.
The valve comes in versatile port sizes ranging from G 3/8" to G 2", as well as NPT connections, making it adaptable to a wide variety of piping systems and installation requirements.
Technical Parameters:
| Temperature |
Max. 55 ℃ |
| Pressure |
0 To 10 Bar |
| Body Material |
Stainless Steel 316L |
| Nominal Diameters |
DN 10 To DN 40 |
| Voltages |
24VDC, 110VAC, 230VAC |
| Seal Materials |
NBR, FKM, EPDM |
| Port Connections |
G3/8″ To G2″; NPT3/4″ |
| Function |
2 Way Normally Closed |
Applications:
The versatile Type 6213EV is designed to meet the demands of a broad spectrum of industrial fluid control applications. Its adaptability makes it an ideal choice across various sectors requiring precise and reliable fluid management.
In the realm of water treatment, this product is well-suited for both municipal and industrial water treatment facilities, as well as swimming pool technology, ensuring safe and efficient fluid handling.
For industrial fluid control, the Type 6213EV excels in functions such as shut-off, dosing, and regulation of neutral liquids, including water and hydraulic oils, providing dependable performance in diverse industrial settings.
When it comes to gas and vacuum systems, this model supports compressed air systems and technical vacuum applications, particularly in its HP00 version, enhancing operational efficiency and safety.
Its application extends to heating and cooling systems too, making it suitable for HVAC systems and temperature control circuits, helping to maintain optimal environmental conditions.
Within process industries like chemical and pharmaceutical manufacturing, the Type 6213EV is compatible with neutral media, aiding in precise processing and control.
In combustion installations, it serves as a critical safety shut-off device for burners and heating systems, contributing to secure and reliable operation.
Furthermore, the product is effective in oil and hydraulic systems, where it manages hydraulic oil and additive-free oil with precision and reliability.
Lastly, the Type 6213EV finds application in the food and beverage sector, being suitable for processing neutral fluids and water within food production environments, adhering to necessary hygiene and safety standards.
