Product Description:

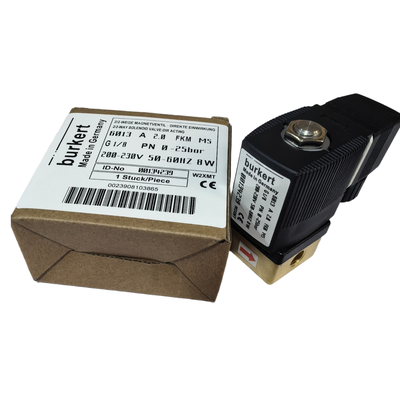

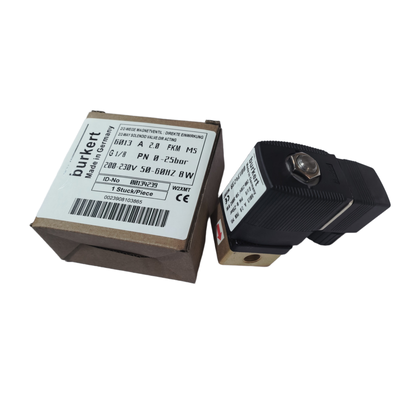

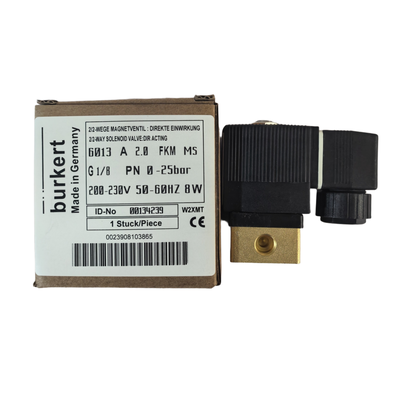

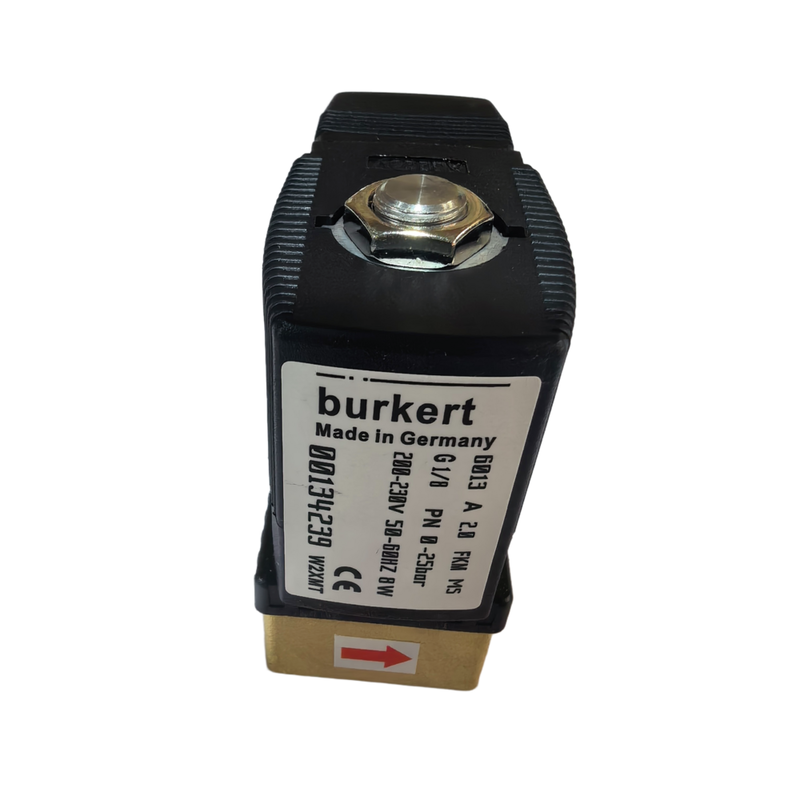

The 6013 Series Brass Solenoid Valve is a high-performance, 2-way normally closed direct-acting solenoid valve engineered for reliable on/off control of fluids in industrial and commercial systems. Constructed from high-quality forged brass, this valve offers excellent corrosion resistance and mechanical strength, ensuring long-lasting performance even in demanding environments.
The direct-acting design enables instantaneous response and, crucially, allows operation from zero pressure – eliminating the need for a minimum pressure differential. With a wide range of port sizes (from 1/2" to 2"), multiple seal options (NBR, EPDM, or FKM/Viton), and versatile AC/DC voltage choices (12V, 24V, 110V, 220V), this valve adapts easily to diverse media and control requirements.
Each unit undergoes rigorous factory testing to guarantee leak-free operation, consistent cycling, and extended service life. The compact design and IP65 protection class make the 6013 Series a cost-effective, reliable solution for OEMs, system integrators, and maintenance engineers alike.
Features:
Forged Brass Construction – High-strength, corrosion-resistant body ensures durability and long service life in water, air, gas, and light oil applications.
Direct-Acting Operation – Instantaneous opening and closing with zero minimum pressure required; operates reliably from 0 pressure up to 10 bar (or higher depending on model).
2-Way Normally Closed Design – Default closed position ensures fail-safe shut-off when de-energized; normally open configuration available upon request.
Versatile Seal Options – Available with NBR (standard), EPDM, or FKM (Viton®) seals to match fluid temperatures and chemical compatibility requirements.
Flexible Voltage & Connection – Supports 12VDC, 24VDC, 110VAC, and 220VAC (50/60Hz); standard DIN connector with IP65 protection.
Wide Port Size Range – Available from 1/2" to 2" (DN15 to DN50) to suit various flow capacity requirements.
Compact & Lightweight – Space-saving design with easy installation in tight piping systems.
100% Continuous Duty – Designed for uninterrupted operation with low power consumption.
Long Service Life – Engineered for millions of cycles, reducing maintenance and replacement costs.
Wide Media Compatibility – Handles water, air, inert gases, light oils, and mild chemicals (depending on seal material).
Technical Parameters:
| Material |
Brass |
| Seal Material |
NBR, EPDM, FKM |
| Working Pressure |
0 To 16 Bar |
| Working Temperature |
-30 To +120℃ |
| Operation |
Plunger Direct Acting |
| Function |
2 Way Normally Closed |
| Model |
Port Size (Inch) |
Orifice Size (mm) |
Kv |
Pressure (bar) |
Temperature (℃) |
A |
F |
K |
| 6013 |
1/8" |
1.5 |
0.05 |
0 to 40 |
NBR: -10 to +80
EPDM: -30 to +120
FKM: -30 to +150 |
32 |
32 |
66 |
| 2 |
0.12 |
0 to 25 |
| 2.5 |
0.16 |
0 to 16 |
| 3 |
0.23 |
0 to 10 |
| 1/4" |
1.5 |
0.05 |
0 to 40 |
46 |
32 |
70 |
| 2 |
0.12 |
0 to 25 |
| 3 |
0.23 |
0 to 10 |
| 4 |
0.3 |
0 to 4 |
| 5 |
0.35 |
0 to 2 |
| 6 |
0.55 |
0 to 1.5 |
| Sub-base (SFB) |
1.5 |
0.1 |
0 to 40 |
32 |
32 |
66/68 |
| 2 |
0.15 |
0 to 25 |
| 3 |
0.23 |
0 to 10 |
Applications:
The 6013 Series brass solenoid valve is widely used across industries that require precise, reliable, and compact fluid control, including:
Water Treatment & Management – On/off control for water lines, reverse osmosis systems, dosing equipment, and irrigation systems.
Pneumatic & Automation Systems – Cylinder actuation, air tools, robotic automation, and pneumatic control circuits.
Gas Control – Natural gas, LPG, compressed air, and industrial gas lines (with appropriate seals).
HVAC & Refrigeration – Coolant flow control, hot water valves, and heating/cooling systems.
Industrial Manufacturing – Fluid dispensing, filling machines, and process control equipment.
Food & Beverage Processing – Sanitary applications and beverage dispensing (with food-grade seal options).
Agricultural Irrigation – Sprinkler systems and automated irrigation control.
Packaging Machinery – High-speed pneumatic valve actuation for packaging and labeling lines.
Support and Services:
Our Pneumatic Solenoid Valve product is designed to provide reliable and efficient control of air flow in various pneumatic systems. For technical support, we offer comprehensive troubleshooting guides, installation manuals, and maintenance instructions to ensure optimal performance.
If you encounter any issues with the valve operation, please refer to the product manual for detailed information on wiring, pressure specifications, and common fault resolutions. Our support team is also available to assist with system integration, customization requests, and performance optimization.
We provide regular software and firmware updates for smart valve models to enhance functionality and security. Additionally, our services include on-site inspection, repair, and replacement parts to minimize downtime and extend the product lifespan.
For specialized applications, we offer consultation services to help select the appropriate valve type, size, and configuration tailored to your specific pneumatic system requirements.
Ensure routine maintenance by cleaning the valve components and checking for air leaks periodically to maintain efficient operation and prevent unexpected failures.
We are committed to delivering high-quality support and services to maximize the value and reliability of your Pneumatic Solenoid Valve investment.
Packing and Shipping:
Product Packaging:
The Pneumatic Solenoid Valve is carefully packaged to ensure maximum protection during transit. Each valve is individually wrapped in anti-static bubble wrap to prevent damage from shocks and vibrations. The wrapped product is then placed inside a sturdy, corrugated cardboard box with custom foam inserts that securely hold the valve in place. The packaging is labeled with product details, handling instructions, and safety warnings to ensure proper care.
Shipping:
We offer reliable shipping options to deliver the Pneumatic Solenoid Valve safely and promptly. Products are shipped via trusted carriers with tracking information provided to the customer. For international shipments, all necessary customs documentation and compliance certificates are included. We recommend inspecting the package upon arrival and reporting any damages immediately to facilitate a quick resolution.
