Product Description:

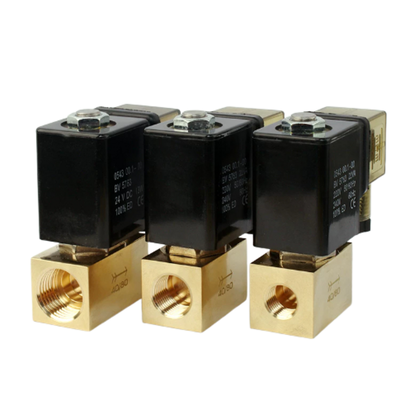

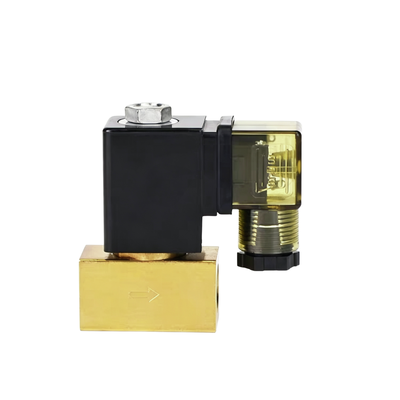

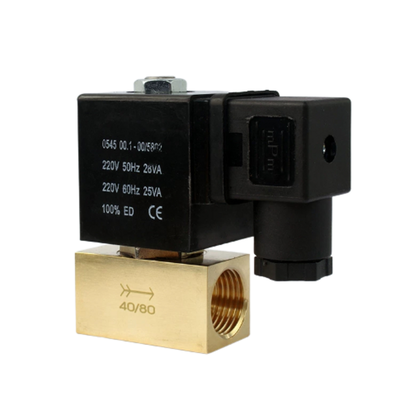

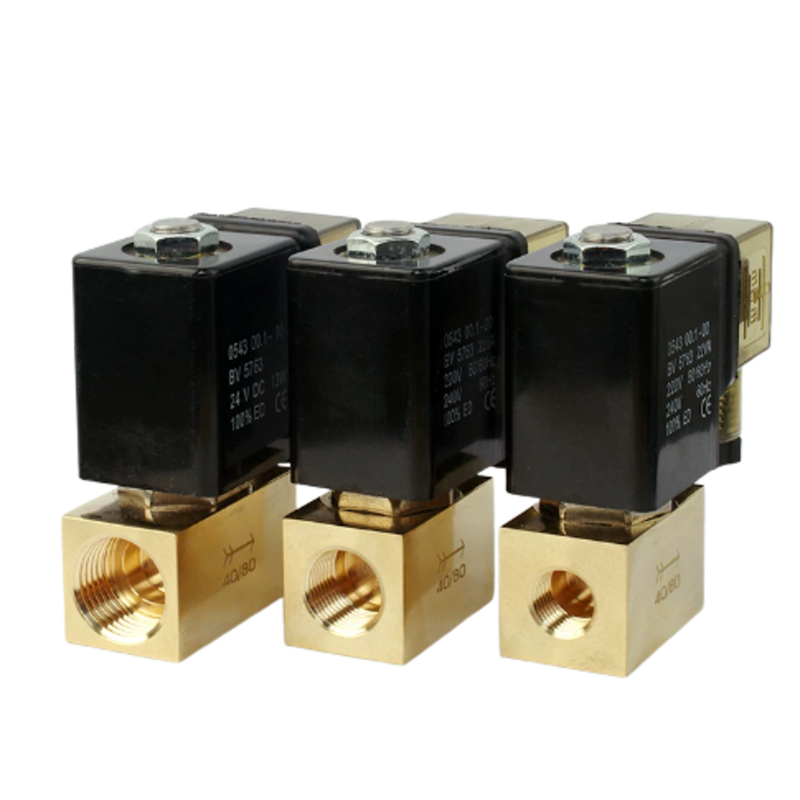

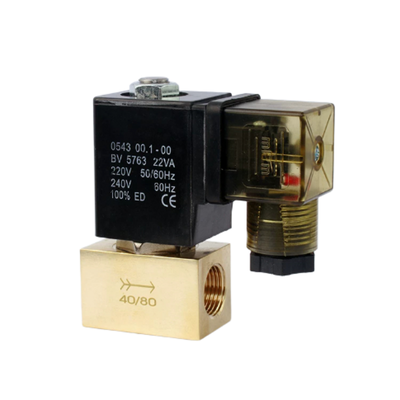

The JT22-02 Series Miniature Brass Solenoid Valve is engineered for high performance and features a direct-acting, two-way normally closed design. This solenoid valve is ideal for precise fluid control within compact systems, ensuring efficient operation in limited spaces.
Manufactured from premium forged brass, the valve demonstrates outstanding durability and excellent resistance to corrosion. These qualities make it suitable for a variety of industrial and commercial applications where long-lasting reliability is essential.
Equipped with a 1/8” BSP/NPT port and a small footprint, the JT22-02 series is designed to fit easily into confined areas without compromising on flow capacity. Its direct-acting plunger mechanism guarantees rapid responsiveness, opening and closing within milliseconds. Additionally, it can operate effectively from zero pressure up to 16 bar, thus removing the requirement for a minimum pressure differential.
This valve offers versatility through multiple seal options including NBR, EPDM, and FKM, which support various media and temperature conditions ranging from standard water and air to hot oils and aggressive gases. The availability of customizable voltage inputs (12VDC, 24VDC, 24VAC, 110VAC, 220VAC) and different orifice sizes (1.2mm or 2.5mm) makes it adaptable to a wide range of system configurations.
Every JT22-02 Series valve undergoes thorough factory testing to guarantee dependable performance, extended service life, and leak-free operation. Whether you require an economical solution for pneumatic control or a sturdy valve for liquid dosing applications, the JT22-02 Series delivers consistent quality and excellent value.
Features:
Compact and Lightweight Design
Featuring a 1/8” port size and a miniature footprint, this device is easy to install even in confined panels and small-bore piping systems. Its compact dimensions make it an ideal solution for applications with limited space.
Direct-Acting Operation
The valve offers instantaneous opening and closing within 10 milliseconds, requiring no minimum pressure to function. It operates efficiently across a pressure range from 0 to 16 bar, ensuring rapid response times.
Durable Brass Construction
Constructed from forged brass, the valve body provides excellent resistance to corrosion. This durability makes it suitable for various media including water, air, gases, and light oils, offering long-lasting performance.
Versatile Seal Options
To accommodate different fluid temperature requirements, the valve comes with multiple seal options: NBR (standard), EPDM, or FKM (Viton®). These seals allow operation within a temperature range of –10°C to +150°C.
Flexible Voltage and Connection
It supports a wide range of voltages including 12VDC, 24VDC, 24VAC, 110VAC, and 220VAC (50/60Hz). The standard configuration includes a DIN 43650A connector rated at IP65, with flying leads available upon request for added flexibility.
Two Orifice Sizes
Users can select between two orifice sizes, 1.2 mm or 2.5 mm, to optimize flow capacity based on the specific needs of their application, providing tailored control over fluid handling.
100% Continuous Duty
Designed for uninterrupted operation, the valve maintains low power consumption — 6W for DC and 8.5VA for AC — making it suitable for continuous use without overheating or performance loss.
Long Service Life
Engineered to withstand over 5 million cycles, this product reduces maintenance frequency and replacement costs, ensuring reliability and cost-effectiveness throughout its lifespan.
Wide Media Compatibility
Depending on the selected seal material, this valve is compatible with a broad range of media, including water, air, inert gases, natural gas, LPG, vacuum, light oils, and mild chemicals, making it highly versatile for diverse industrial uses.
Technical Parameters:
| Seal Material |
NBR, EPDM, FKM |
| Material |
Brass |
| Function |
2 Way Normally Closed |
| Working Pressure |
0 To 16 Bar |
| Working Temperature |
-30 To +120℃ |
| Operation |
Plunger Direct Acting |
Applications:
The JT22-02 Series brass solenoid valve is extensively utilized in various industries that demand accurate, dependable, and compact fluid control solutions. Its versatility makes it suitable for numerous applications requiring precise operation.
In pneumatic systems, the JT22-02 Series is commonly used for cylinder actuation, air tools, and robotic automation, providing efficient and reliable performance. Meanwhile, in the field of water management, it supports irrigation systems, water treatment processes, reverse osmosis units, and dosing equipment with consistent control.
The valve is also well-suited for gas control applications, managing natural gas, LPG, compressed air, and laboratory gas lines with high reliability. Additionally, it finds use in medical and analytical instruments, facilitating fluid dispensing, diagnostic equipment, and sample handling tasks.
In the food and beverage industry, the JT22-02 Series is favored for integration into filling machines, beverage dispensers, and sanitary applications, provided the appropriate seals are used to maintain hygiene standards. HVAC and refrigeration systems also benefit from this valve, which effectively controls coolant flow, hot water valves, and heating mechanisms.
Further applications include industrial lubrication, where the valve manages light oil distribution and machinery lubrication circuits, as well as packaging machinery that requires high-speed pneumatic valves for efficient packaging and labeling operations.
Combining robust construction with adaptable options and proven reliability, the JT22-02 Series solenoid valve stands as an excellent choice for engineers who need a valve that balances both performance and cost-effectiveness.
