Product Description:

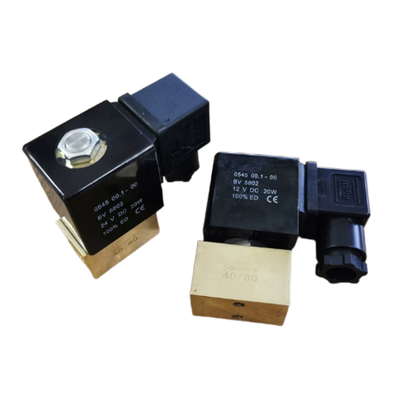

The JT22-02 Series Miniature Brass Solenoid Valve is designed to deliver high performance with its direct-acting, two-way normally closed configuration. This valve is perfect for precise fluid control in compact systems, ensuring efficient functionality even in tight spaces.
Constructed from high-quality forged brass, the valve offers exceptional durability and strong resistance to corrosion. These characteristics make it well-suited for a broad range of industrial and commercial uses where reliable, long-term operation is critical.
Featuring a 1/8” BSP/NPT port and a compact design, the JT22-02 series easily integrates into confined areas without sacrificing flow capacity. Its direct-acting plunger mechanism provides quick response times, opening and closing within milliseconds. Moreover, it can function effectively from zero pressure up to 16 bar, eliminating the need for a minimum pressure differential.
Versatility is enhanced by multiple seal options including NBR, EPDM, and FKM, allowing compatibility with diverse media and temperature ranges—from standard water and air to hot oils and aggressive gases. The valve also supports customizable voltage inputs such as 12VDC, 24VDC, 24VAC, 110VAC, and 220VAC, along with different orifice sizes (1.2mm or 2.5mm), making it adaptable to a variety of system requirements.
Each JT22-02 Series valve undergoes comprehensive factory testing to ensure reliable performance, extended lifespan, and leak-free operation. Whether you need an economical pneumatic control solution or a robust valve for liquid dosing, the JT22-02 Series provides consistent quality and excellent value.
Features:
Compact and Lightweight Design
With a 1/8” port size and a miniature footprint, this device is designed for easy installation even in tight panels and small-bore piping systems. Its compact size makes it particularly suitable for applications where space is limited.
Direct-Acting Operation
This valve provides rapid opening and closing action within 10 milliseconds and requires no minimum pressure to operate. It functions efficiently across a pressure range of 0 to 16 bar, ensuring quick response times in various applications.
Durable Brass Construction
Constructed from forged brass, the valve body is highly resistant to corrosion. Such robust construction makes it ideal for use with different media like water, air, gases, and light oils, delivering long-lasting durability.
Versatile Seal Options
To address a range of fluid temperature requirements, the valve is available with multiple seal materials: standard NBR, EPDM, or FKM (Viton®). These options support operation within temperatures from –10°C up to +150°C.
Flexible Voltage and Connection
The valve supports a broad spectrum of voltages including 12VDC, 24VDC, 24VAC, 110VAC, and 220VAC (50/60Hz). It comes standard with a DIN 43650A connector rated at IP65, with flying leads available upon request to offer added installation flexibility.
Two Orifice Sizes
Users can choose between two orifice diameters, 1.2 mm or 2.5 mm, allowing for tailored flow capacity that matches the specific requirements of their system for optimal fluid control.
100% Continuous Duty
Designed to operate continuously without interruption, the valve consumes low power — 6W for DC and 8.5VA for AC — ensuring no overheating or loss of performance during extended use.
Long Service Life
Engineered to endure over 5 million cycles, this valve minimizes maintenance needs and replacement expenses, offering exceptional reliability and cost efficiency throughout its operational life.
Wide Media Compatibility
Depending on the seal material selected, the valve is compatible with a wide array of media such as water, air, inert gases, natural gas, LPG, vacuum, light oils, and mild chemicals, making it highly adaptable for various industrial applications.
Technical Parameters:
| Working Pressure |
8 Bar |
| Port Size |
1/8'', 1/4'', 3/8'', 1/2'' |
| Voltage |
AC220V, DC12V, DC24V |
| Operation |
Plunger Direct Acting |
| Body Material |
Brass |
| Working Media |
Water, Gas, Liquid |
| Function |
2 Way Normally Closed |
Applications:
The JT22-02 Series brass solenoid valve is widely employed across numerous industries that require precise, reliable, and compact solutions for fluid control. Its adaptable design allows it to meet the demands of a variety of applications where accuracy and dependable operation are critical.
In pneumatic systems, this series is frequently utilized for cylinder actuation, air tools, and robotic automation. It delivers efficient and consistent performance, ensuring smooth functionality. Additionally, within water management sectors, the JT22-02 Series supports irrigation systems, water treatment facilities, reverse osmosis setups, and dosing equipment, providing steady and trustworthy control.
The valve is equally effective in gas control scenarios, handling natural gas, liquefied petroleum gas (LPG), compressed air, and laboratory gas supply lines with exceptional reliability. Moreover, it plays an important role in medical and analytical instruments by facilitating fluid dispensing, diagnostic procedures, and precise sample management.
In the food and beverage industry, the JT22-02 Series is preferred for its integration into filling machines, beverage dispensers, and sanitary applications, granted the proper seals are employed to comply with hygiene standards. Furthermore, HVAC and refrigeration systems take advantage of this valve’s capability to regulate coolant flow, hot water valves, and heating components effectively.
The application spectrum extends to industrial lubrication, where it controls the distribution of light oils and manages lubrication circuits in machinery. It is also widely used in packaging machinery that demands high-speed pneumatic valve operation for enhanced efficiency in packaging and labeling tasks.
With its robust construction, flexible configurations, and proven dependability, the JT22-02 Series solenoid valve represents an ideal solution for engineers seeking a product that offers a balanced combination of high performance and cost-effectiveness.
Customization:
At DKE, we offer comprehensive product customization services for our Pneumatic Solenoid Valve, model JT22-02. Manufactured in China and CE certified, this valve is designed to meet diverse industrial needs with a minimum order quantity of just one unit.
Our JT22-02 solenoid valve features a robust brass body and operates as a 2-way normally closed valve with plunger direct acting operation, suitable for various applications including water valve, pilot diaphragm solenoid valve, and light oil valve functions.
We provide flexible port size options including 1/8'', 1/4'', 3/8'', and 1/2'' to ensure compatibility with your specific system requirements. The valve supports a working pressure of up to 8 Bar, making it reliable for different fluid control scenarios.
Packaging is securely done in cartons to ensure product safety during transit. Delivery is prompt, within 1-7 work days after payment, and we support multiple payment terms such as T/T, Western Union, and Paypal for your convenience.
With a supply ability of 5000 pieces per month and price available upon negotiation, DKE is committed to providing high-quality, customizable pneumatic solenoid valves tailored to your technical and commercial needs.
Support and Services:
Our Pneumatic Solenoid Valve product is designed for reliable and efficient operation in various industrial applications. For technical support, please ensure you have the model number, specifications, and operating conditions ready when seeking assistance.
We offer comprehensive services including installation guidance, troubleshooting, maintenance tips, and replacement part identification to help maximize the performance and lifespan of your pneumatic solenoid valve.
If you experience any issues such as valve failure, leakage, or electrical problems, our support team can provide step-by-step diagnostics and recommend appropriate solutions.
Regular maintenance is recommended to prevent common problems. This includes checking for air leaks, ensuring proper electrical connections, and cleaning or replacing filters as needed.
For custom applications or integration support, our technical experts can assist with system design and compatibility considerations to ensure optimal valve performance within your pneumatic system.
We are committed to providing timely and effective technical support to help you maintain smooth and uninterrupted operation of your pneumatic solenoid valves.
Packing and Shipping:
Product Packaging and Shipping
The Pneumatic Solenoid Valve is carefully packaged to ensure safe delivery and optimal protection during transit. Each valve is individually wrapped in anti-static foam to prevent damage from shocks and vibrations. The wrapped valve is then placed in a sturdy, corrugated cardboard box with additional cushioning materials to secure it in place.
For bulk orders, multiple units are packed in larger cartons with appropriate separators to avoid contact between valves. All packages are clearly labeled with product information, handling instructions, and shipping details.
We offer various shipping options including standard ground, expedited air freight, and international shipping services. Each shipment is tracked and insured to guarantee timely and secure delivery to your specified address.
Our packaging and shipping processes comply with industry standards to ensure the Pneumatic Solenoid Valve arrives in perfect condition, ready for immediate installation and use.
