Product Description:

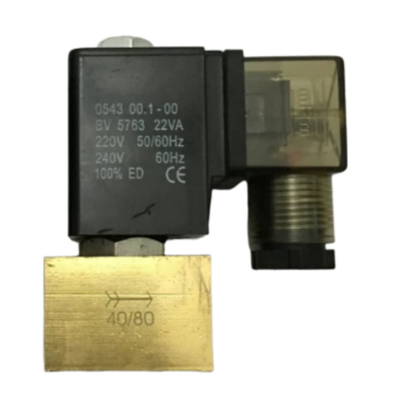

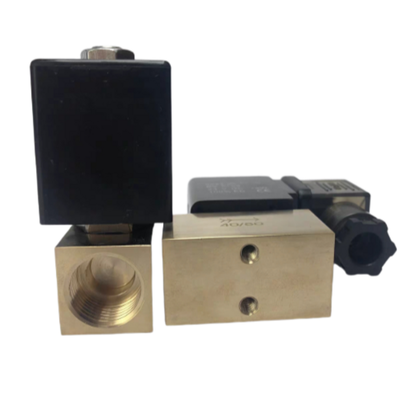

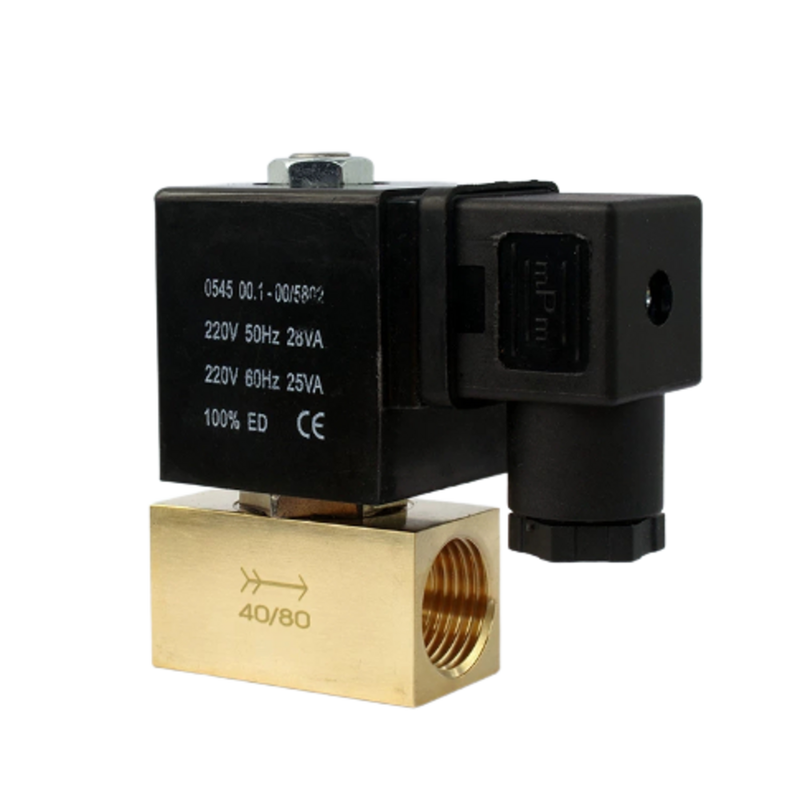

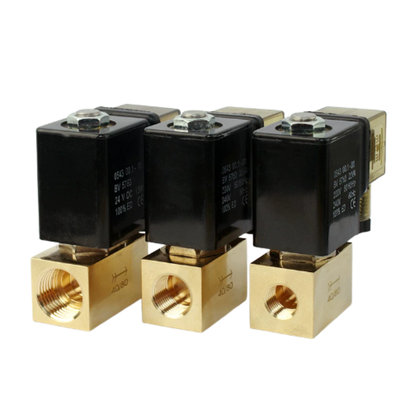

The JT22-02 Series Miniature Brass Solenoid Valve is designed to deliver exceptional performance through its direct-acting, two-way normally closed configuration. This compact valve is perfect for precise fluid control within space-constrained systems, ensuring efficient functionality without occupying much room.
Crafted from high-quality forged brass, this valve offers remarkable durability and strong resistance to corrosion. These attributes make it well-suited for a broad range of industrial and commercial applications where dependable, long-term operation is critical.
Featuring a 1/8” BSP or NPT port alongside a compact design, the JT22-02 Series easily integrates into tight spaces while maintaining adequate flow capacity. Its direct-acting plunger ensures quick response times, opening and closing in mere milliseconds. Furthermore, it operates efficiently from zero pressure up to 16 bar, eliminating the need for a minimum pressure differential.
This valve also provides flexibility with multiple seal choices including NBR, EPDM, and FKM. These seals accommodate various media and temperature ranges, from standard water and air to hot oils and aggressive gases. Additionally, the availability of customizable voltage options—such as 12VDC, 24VDC, 24VAC, 110VAC, and 220VAC—and different orifice sizes (1.2mm or 2.5mm) make the valve adaptable to numerous system requirements.
Each JT22-02 Series valve undergoes comprehensive factory testing to ensure reliable performance, a long service life, and leak-free operation. Whether you need a cost-effective valve for pneumatic applications or a robust solution for liquid dosing, the JT22-02 Series offers consistent quality and excellent value.
Features:
Compact and Lightweight Design
This device features a 1/8” port size along with a miniature footprint, making installation straightforward even within confined panels and narrow piping systems. Its small and compact size makes it an excellent choice for applications where space is limited.
Direct-Acting Operation
The valve provides rapid opening and closing actions within 10 milliseconds, with no minimum pressure requirement to operate. It performs efficiently across a pressure range from 0 up to 16 bar, guaranteeing swift response times for various use cases.
Durable Brass Construction
Manufactured from forged brass, the valve body exhibits outstanding corrosion resistance. This robust construction allows it to handle diverse media such as water, air, gases, and light oils, ensuring dependable, long-term performance.
Versatile Seal Options
To meet different fluid temperature demands, the valve is available with multiple seal materials: NBR (standard), EPDM, or FKM (Viton®). These options enable operation within a temperature spectrum ranging from –10°C to +150°C.
Flexible Voltage and Connection
The valve supports a variety of voltage options including 12VDC, 24VDC, 24VAC, 110VAC, and 220VAC at 50/60Hz. It comes standard with a DIN 43650A connector rated at IP65, while flying leads can also be provided upon request for increased installation flexibility.
Two Orifice Sizes
Users have the option to select between two orifice sizes—1.2 mm or 2.5 mm—allowing them to optimize flow capacity according to the specific requirements of their application, thus achieving precise fluid control.
100% Continuous Duty
Designed for nonstop operation, the valve consumes low power—6W for DC and 8.5VA for AC—making it suitable for continuous use without risk of overheating or loss in performance.
Long Service Life
Built to endure over 5 million operating cycles, this valve minimizes maintenance needs and replacement expenses, ensuring both reliability and cost-effectiveness throughout its operational lifetime.
Wide Media Compatibility
Depending on the choice of seal material, the valve is compatible with a wide variety of media including water, air, inert gases, natural gas, LPG, vacuum, light oils, and mild chemicals, making it highly adaptable for numerous industrial applications.
Technical Parameters:
| Port Size |
1/8'', 1/4'', 3/8'', 1/2'' |
| Function |
2 Way Normally Closed |
| Body Material |
Brass |
| Working Pressure |
8 Bar |
| Operation |
Plunger Direct Acting |
| Voltage |
AC220V, DC12V, DC24V |
| Working Media |
Water, Gas, Liquid |
Applications:
The JT22-02 Series brass solenoid valve is widely recognized across multiple industries for its accurate, reliable, and compact fluid control capabilities. Its adaptable design allows it to be utilized in a broad range of applications where precise operation is essential.
In pneumatic systems, this series is frequently employed for cylinder actuation, air tools, and robotic automation, delivering both efficient and dependable performance. Similarly, within the water management sector, the valve supports various functions such as irrigation systems, water treatment processes, reverse osmosis units, and dosing machinery, ensuring consistent and stable control.
The JT22-02 Series also excels in gas control scenarios, effectively managing natural gas, LPG, compressed air, and laboratory gas lines with high reliability. Furthermore, it is commonly found in medical and analytical instruments, aiding in fluid dispensing, diagnostic processes, and sample handling applications.
In the food and beverage industry, this valve is highly regarded for its integration into filling machines, beverage dispensing systems, and sanitary applications, assuming suitable sealing materials are applied to uphold hygiene standards. Additionally, HVAC and refrigeration systems benefit from the valve’s ability to regulate coolant flow, hot water valves, and heating components efficiently.
Beyond these uses, the JT22-02 Series valve proves advantageous in industrial lubrication by controlling the distribution of light oils and managing machinery lubrication circuits. It is also instrumental in packaging machinery, where high-speed pneumatic valve operation is crucial for effective packaging and labeling.
Combining durable construction, versatile options, and a track record of proven reliability, the JT22-02 Series solenoid valve represents an excellent solution for engineers seeking a product that harmonizes performance with cost-effectiveness.
Customization:
Our DKE JT22-02 pneumatic solenoid valve offers extensive product customization services to meet your specific needs. As a normally closed solenoid valve made from high-quality brass, this solenoid valve is designed for reliable performance with a working pressure of up to 8 Bar. It is suitable for various working media including water, gas, and liquid, making it an ideal water valve solution for diverse applications.
We provide multiple voltage options including AC220V, DC12V, and DC24V to ensure compatibility with your systems. The valve is available in various port sizes such as 1/8'', 1/4'', 3/8'', and 1/2'' to fit your piping requirements precisely. Each unit is CE certified, guaranteeing compliance with international quality standards.
Customization options include packaging in sturdy cartons to ensure safe delivery. Our minimum order quantity is just 1 piece, with a supply ability of 5000 pieces per month, enabling flexible ordering for both small and large scale projects. Pricing is negotiable to accommodate your budget, and payment terms include T/T, Western Union, and Paypal for your convenience.
We guarantee prompt delivery within 1-7 work days after payment confirmation, ensuring you receive your customized pneumatic solenoid valve quickly. Trust DKE for tailored solutions when you need a dependable normally closed solenoid valve or water valve to enhance your system’s efficiency.
FAQ:
Q1: What is the brand and model number of this pneumatic solenoid valve?
A1: The brand name is DKE and the model number is JT22-02.
Q2: Where is the pneumatic solenoid valve manufactured?
A2: This product is made in China.
Q3: What certifications does the JT22-02 solenoid valve have?
A3: The JT22-02 pneumatic solenoid valve is CE certified.
Q4: What is the minimum order quantity and how is the product packaged?
A4: The minimum order quantity is 1 piece, and the product is packaged in a carton.
Q5: What are the payment terms and delivery time for this product?
A5: Payment can be made via T/T, Western Union, or PayPal. Delivery time is typically 1-7 working days after payment.
Q6: What is the supply ability of the DKE JT22-02 pneumatic solenoid valve?
A6: The supply ability is 5000 pieces per month.
Q7: How is the price determined for the pneumatic solenoid valve?
A7: The price is negotiable depending on the order quantity and specifications.
