Product Description:

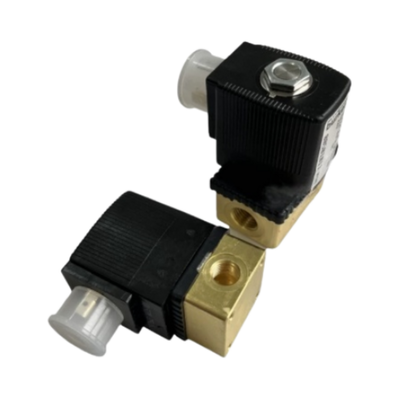

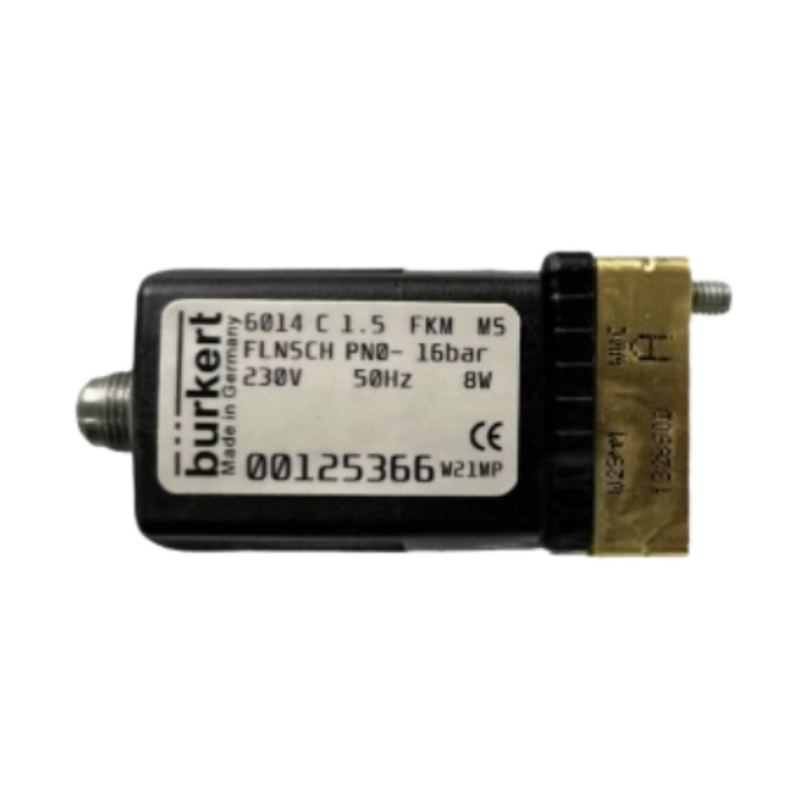

The 6014 Series Burkert Type Solenoid Valve is a highly adaptable, direct-acting 3-way solenoid valve designed to provide precise fluid control in sophisticated pneumatic and industrial systems. It is available in two configurations: 3-way normally closed (6014 C) and 3-way normally open (6014 D), offering excellent versatility for a broad spectrum of control applications.
Featuring a robust brass body and a direct-acting plunger mechanism, the 6014 Series ensures immediate response without the need for a minimum pressure differential to function. The valve supports various seal material options such as NBR, EPDM, or FKM, tailored to meet specific media compatibility and temperature demands. Additionally, the coils are encapsulated with either polyamide or chemically resistant epoxy, enhancing durability and protection in demanding environments.
An innovative flange design (SFB) allows for a compact installation by enabling valves to be arranged closely on a manifold. This makes the 6014 Series particularly suitable for space-constrained, multi-valve configurations. Each valve is factory-tested to ensure it operates leak-free, cycles reliably, and maintains a long service life.
Features:
Burkert Type Design
The Burkert Type Design features the industry-standard 6014 configuration, ensuring seamless integration and full compatibility with existing systems. This design simplifies the installation process, making it ideal for various industrial applications.
Versatile 3-Way Functionality
Available in both normally closed (6014 C) and normally open (6014 D) versions, this valve accommodates a wide range of control requirements. This versatility allows users to select the configuration that best fits their operational needs.
Direct-Acting Operation
The valve operates on a direct-acting principle, providing an instantaneous response without requiring any minimum pressure. It can function efficiently from 0 bar up to 16 bar, depending on the orifice size chosen, ensuring reliable performance in various pressure conditions.
Robust Forged Brass Construction
Constructed from forged brass, the valve body offers outstanding corrosion resistance and durability. This robust construction makes it well-suited for demanding industrial environments where longevity and reliability are critical.
Multiple Seal Options for Compatibility
The valve is available with a range of seal materials, including NBR (operating from –10°C to +80°C), EPDM (–30°C to +120°C), and FKM (–30°C to +150°C). This variety ensures compatibility with different fluid temperatures and chemical environments.
Wide Selection of Orifice and Port Sizes
Users can select from orifice sizes of 1.5 mm, 2.0 mm, or 2.5 mm, along with port sizes of either 1/8" or 1/4". This flexibility enables precise adjustment of flow capacity, with Kv values ranging from 0.07 to 0.16 m³/h.
Flexible Voltage Options
The valve supports multiple voltage inputs, including 12VDC, 24VDC, 24VAC, 110VAC, and 220VAC. This broad range caters to diverse control systems and power supply configurations.
Manifold-Mountable Design
Featuring a specific flange design (SFB), the valve can be mounted directly onto manifolds. This configuration promotes a space-saving installation and simplifies system assembly.
Durable Coil Moulding
The coils are encapsulated in either polyamide or chemically resistant epoxy, providing superior protection against moisture and chemicals. This ensures long-lasting coil durability under harsh operating conditions.
Wide Media Compatibility
The valve is capable of handling a variety of media, including neutral and clean liquids, gases, and light oils. The specific media compatibility depends on the seal material selected, allowing for tailored application uses.
Technical Parameters:
| Port Size |
1/8'', 1/4'' |
| Working Pressure |
0 To 16 Bar |
| Working Media |
Air, Water, Gas, Liquid |
| Seal Material |
NBR, EPDM, FKM |
| Function |
3 Way Normally Open |
| Voltage |
DC12V, DC24V, AC24V, AC220V |
| Operation |
Plunger Direct Acting |
| Material |
Brass |
| Working Temperature |
-10 °C To +100 °C |
| Model |
Port Size
(inch) |
Orifice Size
(mm) |
Kv
(m³/h) |
Pressure (bar) |
| 6014 |
1/8" |
1.5 |
0.07 |
0 to 16 |
| 1/8" |
2 |
0.11 |
0 to 10 |
| 1/8" |
2.5 |
0.16 |
0 to 6 |
| 1/4" |
1.5 |
0.07 |
0 to 16 |
| 1/4" |
2 |
0.11 |
0 to 10 |
| 1/4" |
2.5 |
0.16 |
0 to 6 |
| Sub-base (SFB) |
1.5 |
0.07 |
0 to 16 |
| Sub-base (SFB) |
2 |
0.11 |
0 to 10 |
Applications:
The 6014 Series Burkert Type 3-way brass solenoid valve is extensively utilized in various industries that demand accurate, dependable, and compact fluid control solutions. Its versatility makes it suitable for a wide range of applications.
In the field of Pneumatic and Automation Systems, this valve serves essential functions such as pilot control for pneumatic actuators, directional control of cylinders, and automation in robotic systems. It ensures smooth and precise operation in these high-demand environments.
For Water Treatment and Management, the valve provides reliable on/off control for water lines, supports reverse osmosis systems, and operates dosing equipment effectively, contributing to efficient water management processes.
In Gas Control applications, it is compatible with natural gas, LPG, compressed air, and other industrial gases when used with appropriate seals, offering safe and reliable control over gas flow.
The valve is also widely employed in Industrial Manufacturing settings, including fluid dispensing, filling machinery, and various process control equipment, due to its robust design and consistent performance.
Medical and Laboratory Devices benefit from the 6014 Series thanks to its precise fluid dispensing capabilities and suitability for analytical instruments, ensuring accuracy in sensitive applications.
HVAC and Refrigeration systems utilize this solenoid valve for coolant flow regulation as well as heating and cooling control, contributing to efficient temperature management.
Moreover, the valve plays a critical role in Packaging Machinery by enabling high-speed pneumatic actuation needed for packaging and labeling operations.
In complex Manifold Systems, the valve’s space-saving design facilitates multi-valve arrangements, optimizing the layout of intricate control panels.
Combining flexible 3-way configurations with sturdy construction and proven reliability, the 6014 Series is the perfect choice for engineers requiring a dependable solenoid valve solution. Its compact, manifold-ready design ensures seamless integration into various control systems.
Customization:
Burkert offers customized Pneumatic Solenoid Valves, model number 6014, designed to meet diverse industrial needs. Manufactured in China and certified with CE, these valves are ideal for applications involving light oil valve, pilot diaphragm solenoid valve, and air valve functions.
Our customization services include a variety of port sizes ranging from 3/8'' to 2'', with seal materials available in NBR, EPDM, and FKM to ensure compatibility with different working media such as air, water, gas, and liquid. The valves operate efficiently within a temperature range of -10 °C to +100 °C.
We provide flexible voltage options including DC12V, DC24V, AC24V, and AC220VAC to suit your electrical requirements. Each unit is carefully packaged in a carton to ensure safe delivery.
The minimum order quantity is 1 piece, with pricing available upon negotiation. Our supply ability reaches up to 5000 pieces per month, and delivery is guaranteed within 1-7 work days after payment. Payment terms include T/T, Western Union, and Paypal for your convenience.
Choose Burkert’s Pneumatic Solenoid Valve 6014 for reliable performance and tailored solutions in light oil valve, pilot diaphragm solenoid valve, and air valve applications.
Packing and Shipping:
Product Packaging and Shipping

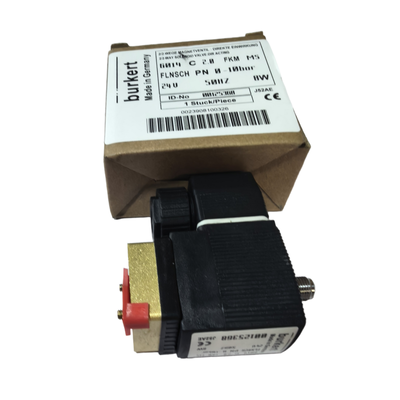

The Pneumatic Solenoid Valve is carefully packaged to ensure it reaches you in perfect condition. Each valve is securely placed in a protective plastic bag and then cushioned with foam inserts inside a sturdy cardboard box. The packaging is designed to prevent any damage from shocks, vibrations, or moisture during transit.
For bulk orders, multiple units are packed in a larger box with additional padding materials to avoid movement and impact. All packages are clearly labeled with product information, handling instructions, and shipping details.
Shipping options include standard ground, expedited, and express delivery services. We work with trusted carriers to provide reliable and timely delivery worldwide. Tracking information will be provided once your order is dispatched, allowing you to monitor your shipment until it arrives at your doorstep.
If you have any special packaging or shipping requirements, please contact our customer service team prior to placing your order.
