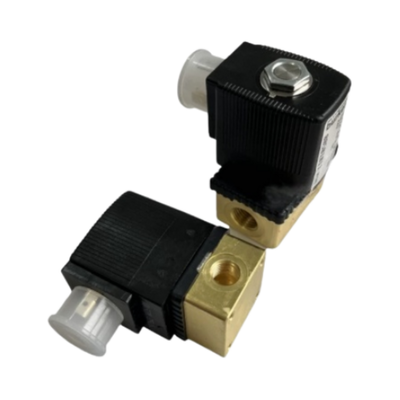

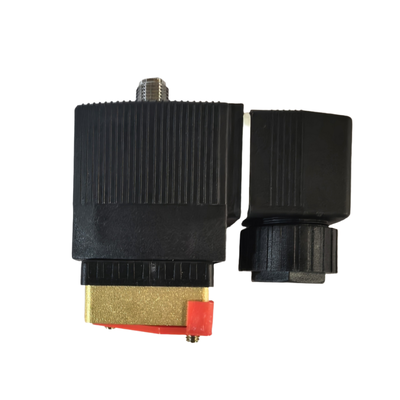

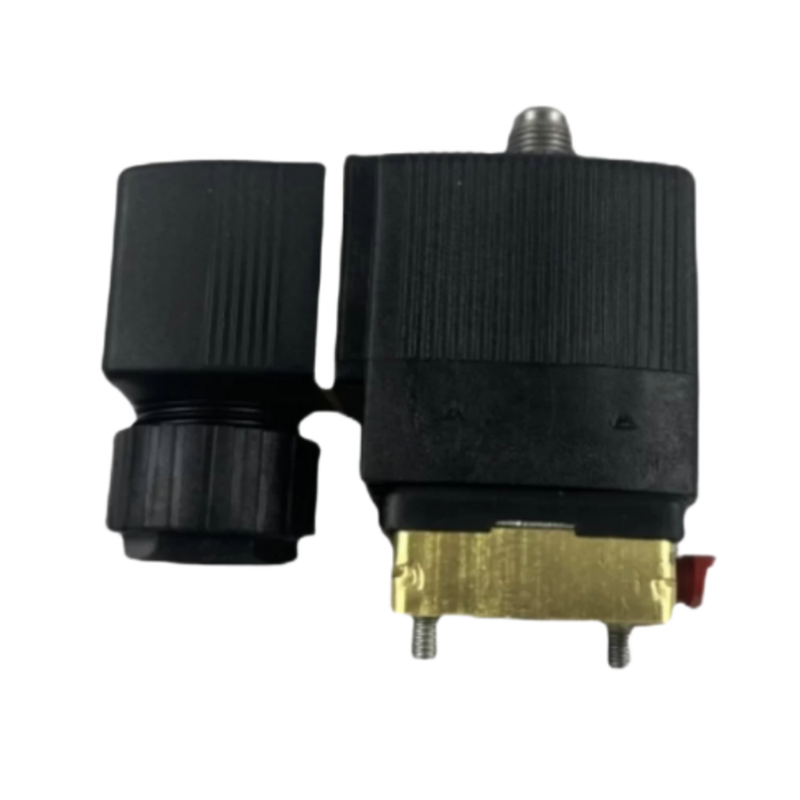

NBR Seal Material Pneumatic Solenoid Valve DC24V Voltage 3 Way Normally Closed Industrial Automation Control 125367

Product Description:

The 6014 Series Burkert Type Solenoid Valve is a highly adaptable, direct-acting 3-way solenoid valve designed for accurate fluid control in sophisticated pneumatic and industrial applications. It is available in two configurations: the 3-way normally closed (6014 C) and the 3-way normally open (6014 D), providing great versatility to meet various control needs.

Featuring a robust brass body and a direct-acting plunger mechanism, the 6014 Series ensures rapid response times and operates without the need for any minimum pressure differential. Depending on the specific application, different seal materials such as NBR, EPDM, or FKM can be selected, ensuring compatibility with a broad range of media and temperature conditions. Additionally, the coils are encapsulated in either polyamide or chemically resistant epoxy, enhancing durability and safeguarding the valve against challenging environmental factors.

Designed with a unique flange configuration (SFB), these valves can be arranged compactly on a manifold, making the 6014 Series especially suitable for multi-valve setups where space is limited. Each valve undergoes rigorous factory testing to ensure leak-free operation, reliable cycling, and extended service life, making it a dependable choice for demanding industrial scenarios.

Features:

The Burkert Type Design features the well-established 6014 configuration, ensuring seamless integration and compatibility with a wide range of existing systems. This adherence to industry standards simplifies installation and maintenance processes for users.

This design offers flexibility with its 3-way functionality, available in both normally closed (6014 C) and normally open (6014 D) variants. These options cater to diverse control needs, allowing users to select the version best suited for their specific application.

Employing a direct-acting mechanism, the system provides instantaneous response without requiring any minimum pressure to operate. It functions effectively within a pressure range from 0 bar up to 16 bar, depending on the chosen orifice size.

The valve body is constructed from forged brass, offering excellent resistance to corrosion and enhanced durability. This robust build ensures reliable performance even in demanding industrial environments.

To accommodate varying fluid temperatures and chemical compatibilities, the design includes multiple seal options: NBR seals suitable for –10°C to +80°C, EPDM seals for –30°C to +120°C, and FKM seals for –30°C to +150°C. This variety helps tailor the valve to specific operational needs.

Users can select from orifice sizes of 1.5 mm, 2.0 mm, or 2.5 mm, combined with port sizes of either 1/8" or 1/4". This range allows fine-tuning of flow capacity, with Kv values spanning from 0.07 to 0.16 m³/h, optimizing the valve's performance for different applications.

The design supports various voltage inputs, including 12VDC, 24VDC, 24VAC, 110VAC, and 220VAC, making it adaptable to a broad spectrum of control systems and electrical environments.

Featuring a specific flange design (SFB), the valve can be mounted on manifolds, enabling a compact and space-efficient arrangement that simplifies system layout and reduces installation footprint.

The coils are moulded with materials such as polyamide or chemically resistant epoxy, providing exceptional protection against moisture and chemical exposure, thereby enhancing longevity and reliability.

This valve is suitable for handling neutral and clean liquids, gases, and light oils, with compatibility dependent on the selected seal material, ensuring versatility across various industrial media.

Technical Parameters:

Applications:

The 6014 Series Burkert Type 3-way brass solenoid valve is extensively utilized in various industries that demand accurate, dependable, and compact fluid control solutions. This valve has found applications in numerous sectors due to its versatility and reliable performance.

In the field of Pneumatic and Automation Systems, it serves as pilot control for pneumatic actuators, directional control of cylinders, and plays a vital role in robotic automation processes. Its ability to provide precise control makes it ideal for these applications.

Water Treatment and Management industries rely on this valve for controlling water lines, managing reverse osmosis systems, and dosing equipment with on/off control functions. Its robust design ensures consistent performance in such critical environments.

For Gas Control, the 6014 Series is suitable for managing natural gas, LPG, compressed air, and other industrial gases when fitted with the appropriate sealing materials. This makes it a versatile choice for various gas handling requirements.

In Industrial Manufacturing, it is commonly used for fluid dispensing, operation of filling machines, and in various process control equipment. These applications benefit from the valve’s precise actuation and durability.

The Medical and Laboratory Devices sector utilizes this solenoid valve for accurate fluid dispensing and within analytical instrumentation, where precision and reliability are paramount.

Furthermore, the HVAC and Refrigeration industries depend on this valve for controlling coolant flow, as well as heating and cooling systems, ensuring efficient temperature regulation.

Packaging Machinery applications require high-speed pneumatic valve actuation, and the 6014 Series meets these demands on packaging and labeling lines with consistent performance.

Lastly, its compact size allows for space-saving multi-valve arrangements in manifold systems, which is advantageous for complex control panels where space efficiency is critical.

Combining flexible 3-way configurations, sturdy construction, and established reliability, the 6014 Series Burkert solenoid valve is an excellent choice for engineers seeking a dependable and compact valve solution that is ready for manifold integration.

Support and Services:

Our Pneumatic Solenoid Valve product is designed to provide reliable and efficient control of air flow in various pneumatic systems. For optimal performance, please ensure proper installation according to the provided guidelines, including correct voltage supply, pressure ratings, and environmental conditions.

If you encounter any operational issues, first verify the electrical connections and air supply lines for any faults or blockages. Regular maintenance, such as cleaning the valve components and checking for wear or damage, is recommended to extend the product lifespan.

We offer comprehensive technical support to assist you with troubleshooting, installation advice, and system integration. Our expert team can provide detailed information on valve specifications, compatibility, and customization options to meet your specific application needs.

Additionally, we provide repair and replacement services to ensure minimal downtime. Genuine spare parts are available to maintain the integrity and performance of your pneumatic solenoid valve system.

For detailed documentation, including user manuals, wiring diagrams, and maintenance instructions, please refer to the product support section on our website.

Packing and Shipping:

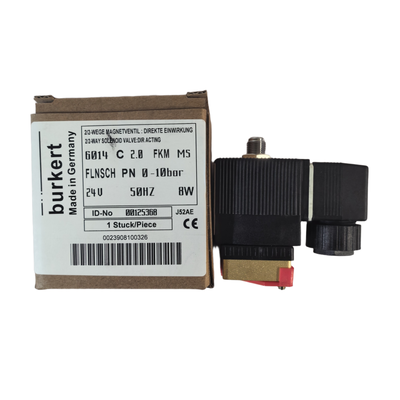

Product Packaging:

The Pneumatic Solenoid Valve is carefully packaged to ensure it reaches you in perfect condition. Each valve is individually wrapped in anti-static foam and placed inside a sturdy cardboard box. The box is then sealed with tamper-proof tape and labeled with product details, handling instructions, and safety warnings. For bulk orders, multiple units are securely packed in reinforced cartons with adequate cushioning to prevent movement and damage during transit.

Shipping:

We offer reliable shipping options to deliver your Pneumatic Solenoid Valve promptly and safely. Orders are processed within 1-2 business days and shipped via trusted carriers with tracking available. Depending on your location, you can choose standard or expedited shipping. We also provide international shipping with proper customs documentation to ensure smooth delivery. Please ensure the shipping address is accurate to avoid delays.
