2 Way Normally Closed Pneumatic Solenoid Valve Stainless Steel 304 Body Material Pressure Range 0 To 40 Bar Designed For Pneumatic Operations 125317

Product Description:

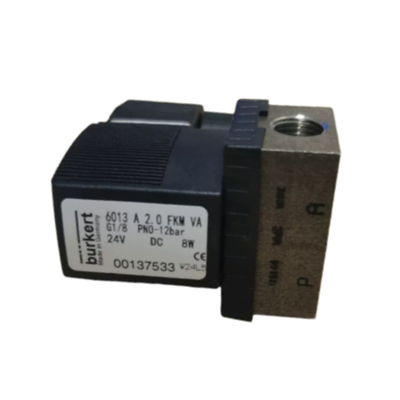

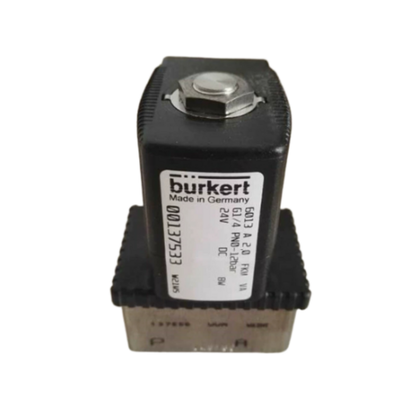

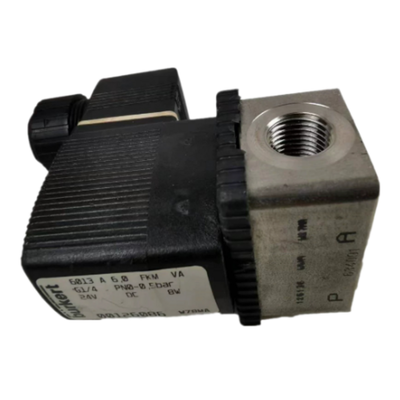

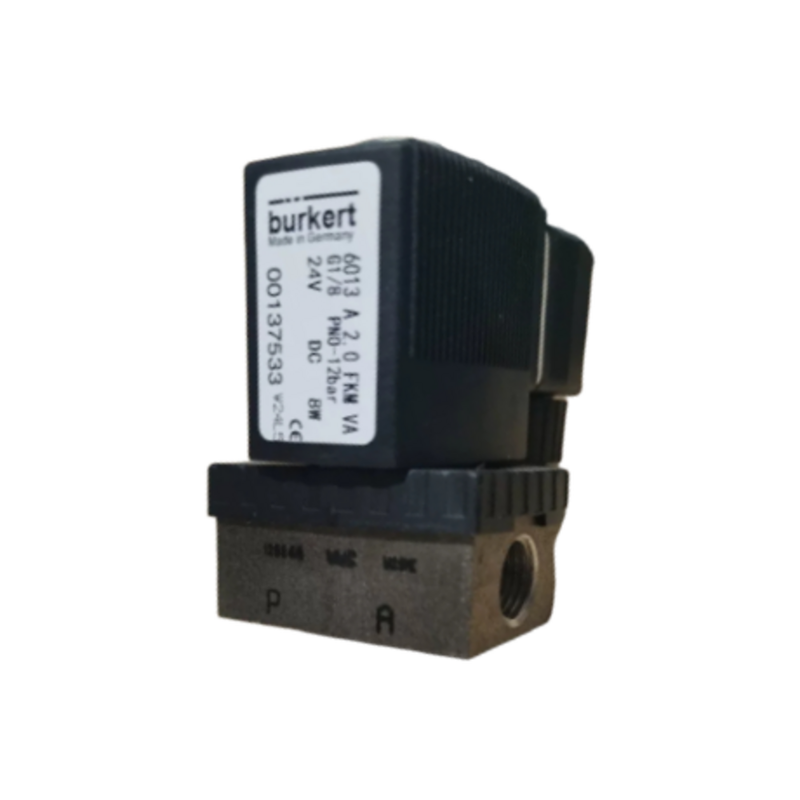

The Burkert 6013 A Burkert Type Stainless Steel Solenoid Valve is a high-quality, plunger direct-acting 2/2 way normally closed valve. It is specifically designed to provide reliable on/off control of both neutral and aggressive fluids in challenging industrial and commercial environments. Constructed with a robust 304 stainless steel body and featuring a direct-acting plunger mechanism, this valve ensures an instantaneous response. Additionally, it operates without the need for a minimum pressure differential, making it ideal for systems with pressures ranging from zero up to 40 bar.

Engineered as a cost-effective and universally applicable solution, the 6013 A Series boasts remarkable versatility. It is available in multiple port sizes, including 1/8" and 1/4", and offers orifice diameters between 1.5mm and 6mm to meet a wide range of flow requirements. To accommodate various fluid temperatures and chemical compatibilities, the valve provides three different seal material options: NBR, EPDM, and FKM. The coils are enclosed in either polyamide or chemically resistant epoxy moulding, enhancing their durability and ability to withstand harsh operating conditions.

The valve supports an array of voltage options, including 12VDC, 24VDC, 24VAC, 110VAC, and 220VAC (50/60Hz), allowing seamless integration into diverse electrical control systems. Each valve undergoes rigorous factory testing to ensure leak-free performance, reliable cycling, and extended service life. This thorough quality assurance makes the 6013 A Series a trusted and dependable choice for OEMs, system integrators, and maintenance specialists worldwide.

Features:

The 6013 A Series valve features the industry-standard Burkert type configuration, guaranteeing easy integration with existing piping and control systems. Its plunger direct-acting mechanism allows for instantaneous opening and closing without requiring any minimum pressure, ensuring dependable operation across a broad pressure range from 0 to 40 bar, depending on the selected orifice size.

Constructed from 304 stainless steel, the valve body provides excellent corrosion resistance and mechanical durability, making it suitable for long-term use in aggressive and corrosive environments where brass valves would typically fail. To address various fluid properties, the valve is offered with three different seal options: NBR seals for standard temperature ranges between –10°C and +80°C, EPDM seals for enhanced chemical resistance from –30°C to +120°C, and FKM seals designed for high-temperature conditions up to +150°C.

This product line includes port sizes of 1/8" and 1/4" with female threaded connections. Orifice diameters range from 1.5mm to 6mm, providing Kv values between 0.05 and 0.55. This variety allows users to choose the most suitable flow capacity tailored to their specific system requirements. Additionally, the valve supports multiple voltage options including 12VDC, 24VDC, 24VAC, 110VAC, and 220VAC (50/60Hz), offering great flexibility for different electrical control setups.

The coils are encapsulated using either polyamide or chemically resistant epoxy materials, delivering excellent protection against moisture, dust, and chemical exposure. Featuring a 2/2 way normally closed function, the valve ensures fail-safe shut-off when de-energized. Its direct acting design removes the necessity for differential pressure, making it an ideal solution for applications ranging from low to high pressure.

Technical Parameters:

Applications:

The Burkert 6013 A Series stainless steel solenoid valve is extensively used in industries that require excellent corrosion resistance, strict hygiene standards, and dependable fluid control. Constructed from 304 stainless steel, this valve is the ideal option for chemical processing facilities where it effectively manages aggressive chemicals, acids, and corrosive substances that would typically degrade standard brass valves.

In the food and beverage sector, the valve plays a critical role in sanitary dispensing, filling tasks, and clean-in-place (CIP) systems. Its stainless steel construction ensures compliance with rigorous hygiene and food safety regulations, making it a trusted component in this industry. Moreover, pharmaceutical and biotechnology fields rely on the 6013 A Series for accurate fluid dispensing, sterile filtration, and analytical instrumentation, where maintaining material purity and corrosion resistance is essential.

Additionally, this valve is ideally suited for applications in water and wastewater treatment that involve exposure to corrosive chemicals. It performs reliably in marine and offshore environments where saltwater corrosion presents a significant challenge. In the oil and gas industry, the 6013 A Series is capable of handling natural gas, LPG, and various hydrocarbons when equipped with appropriate seals.

Beyond these specialized uses, the valve is also effective for controlling neutral and clean liquids, gases, and vapors across general industrial manufacturing processes. Its robust 304 stainless steel design, combined with flexible configurations, a broad pressure range, and proven operational stability, makes the 6013 A Series a versatile and durable solution. Engineers can count on this valve to deliver reliable, long-lasting performance in demanding fluid control scenarios.

Support and Services:

Our Pneumatic Solenoid Valve product is designed to deliver reliable and efficient performance in various industrial applications. To ensure optimal operation, please follow the installation and maintenance guidelines provided in the user manual.

For technical support, our expert team is available to assist with troubleshooting, configuration, and integration of the solenoid valve into your pneumatic systems. We recommend regular inspection and cleaning to prevent contamination and ensure longevity.

We offer comprehensive services including installation assistance, preventive maintenance programs, and repair services to minimize downtime and extend the product lifespan. Replacement parts and accessories are also available to support your operational needs.

Detailed technical documentation, including datasheets, wiring diagrams, and operation manuals, can be accessed through our online resources to help you maximize the performance of your Pneumatic Solenoid Valve.

Please ensure that all servicing is performed by qualified personnel to maintain safety standards and product integrity.

Packing and Shipping:

Product Packaging and Shipping

The Pneumatic Solenoid Valve is carefully packaged to ensure its safety and integrity during transit. Each valve is individually wrapped in anti-static protective material and placed in a sturdy, custom-designed cardboard box. The packaging includes foam inserts to cushion the valve and prevent movement, minimizing the risk of damage.

For bulk orders, the individual boxes are securely packed into larger cartons, which are clearly labeled with product information, handling instructions, and shipping details. All packages undergo quality checks before dispatch to guarantee that the products meet our high standards.

Shipping is available worldwide via reliable carriers, with options for expedited or standard delivery depending on customer requirements. Tracking information is provided upon shipment to ensure timely and transparent delivery. We also offer special packaging solutions for large or sensitive orders upon request.
