Product Description:

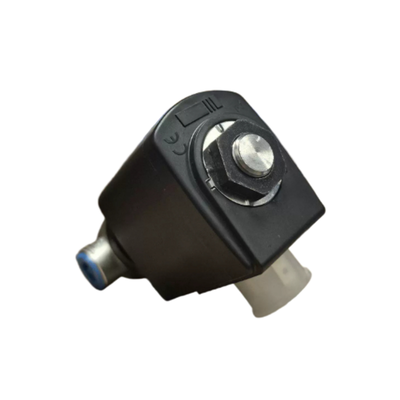

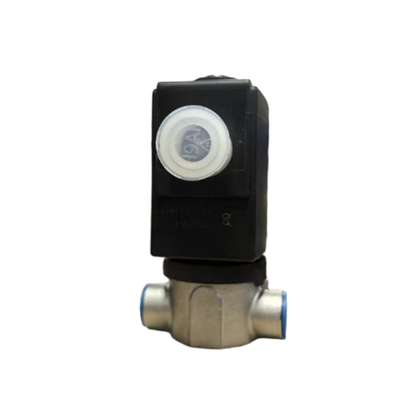

The Bürkert Type 6027 is a direct-acting 2/2-way plunger solenoid valve. It is designed with circuit function "B," which means it operates as a normally open (N.O.) valve. This feature makes it particularly suitable for applications where the valve needs to remain open when de-energized.
Constructed for durability, the valve boasts a stainless steel body alongside a laser-welded plunger guide tube. Such a design not only improves its resistance to high pressure but also guarantees excellent leak-tightness. Being a direct-acting valve, it does not depend on differential pressure to operate, making it ideal for use in zero-pressure and vacuum environments.
The Type 6027 is available in multiple configurations to meet diverse fluid control requirements. Options include different port sizes such as G1/4 and G1/2, various orifice diameters, and a range of seal materials. FKM is provided as the standard seal material, ensuring reliability and performance tailored to your application.
Features:
The direct-acting operation ensures reliable performance starting from 0 bar, eliminating the need for any minimum pressure differential. This makes the valve highly dependable in various applications where pressure conditions may vary.
Built with a robust construction, the valve features a stainless steel body made from grade 1.4404/316L. Additionally, it incorporates a laser-welded plunger guide tube, providing excellent resistance to high pressure and ensuring superior leak-tightness over time.
This valve operates with a normally open (N.O.) function. It remains open when de-energized and closes automatically once power is applied, allowing for straightforward and safe operation in control systems.
To accommodate a wide variety of media and temperature requirements, the valve offers versatile seal options. Customers can choose from several seal materials including FKM, EPDM, PTFE, PEEK, and ceramic, ensuring compatibility with different substances and conditions.
For improved energy efficiency, the valve is available with an innovative "Kick and Drop" feature based on double coil technology. This design significantly reduces the power needed to hold the valve in position, resulting in lower energy consumption during operation.
Special versions of the valve can handle high-pressure applications, with capabilities reaching up to 250 bar (3626 psi). This makes it suitable for demanding industrial environments where elevated pressures are common.
The coil of the valve is molded using chemically resistant epoxy, enhancing durability particularly in harsh chemical environments. This chemical resistance extends the service life of the coil and maintains reliable operation.
The solenoid system boasts a compact and modular design. It features a "push-over" mechanism and allows the coil to be rotated a full 360°, providing installation flexibility and ease of maintenance.
In terms of protection, the valve achieves a high protection class of IP65 when equipped with an appropriate cable plug. This ensures excellent resistance against dust and water ingress, making it suitable for tough operating conditions.
For applications within hazardous environments, explosion-proof variants of the valve are available. These models comply with safety standards necessary to operate safely in explosive atmospheres, enhancing operational security.
Technical Parameters:
| Pressure |
0 To 15 Bar |
| Body Material |
Stainless Steel 316 |
| Function |
2 Way Normally Open |
| Port Size |
1/4'', 3/8'', 1/2'' |
| Seal Material |
FKM |
| Operation |
Plunger Direct Operated |
| Media Temperature |
-10 °C ~ 100 °C |
| Voltage |
12VDC, 24VDC, 24VAC, 220VAC |
Applications:
The versatile Type 6027B valve is designed to handle a broad spectrum of industrial fluid control applications with high reliability and efficiency.
In general industrial settings, it is ideal for tasks such as shut-off, dosing, filling, and ventilating both neutral and aggressive media, ensuring precise control and safety.
For vacuum systems, the Type 6027B provides dependable operation even in technical vacuum environments, supporting pressures down to 0 mbar absolute.
When it comes to high-pressure operations, this valve performs excellently in test rigs, gas applications, and various filling systems, including automotive air conditioning units, accommodating pressures up to 250 bar.
It is also well-suited for process and critical applications across pharmaceutical, food and beverage, and water treatment industries, where stringent control standards are required.
Specifically engineered burner control versions of the Type 6027B manage the precise supply of heating oil and other fuels to furnaces and burners, optimizing combustion efficiency.
Furthermore, the valve can handle steam and other hot media like oils and gases, making it adaptable for use in numerous thermal processes.
For oxygen-related applications, specialized variants of the Type 6027B are available to meet strict safety and performance standards.
Support and Services:
Our Pneumatic Solenoid Valve product is designed to offer reliable and efficient control of air flow in various industrial applications. For technical support, we provide comprehensive assistance including installation guidance, troubleshooting, maintenance tips, and performance optimization to ensure your valve operates at peak efficiency.
Our services include detailed product documentation, application consulting, and firmware updates where applicable. We also offer training sessions for your technical team to enhance their understanding and handling of the pneumatic solenoid valves.
Should you encounter any technical issues, our support team is equipped to provide prompt solutions, including remote diagnostics and on-site service options. We are committed to ensuring minimal downtime and maximizing the lifespan of your equipment.
Additionally, we supply genuine replacement parts and accessories to maintain the integrity and performance of your pneumatic solenoid valves.
For optimal results, we recommend regular maintenance checks and adherence to the operational guidelines provided in the product manual.
Packing and Shipping:
Product Packaging: The Pneumatic Solenoid Valve is securely packaged in a sturdy, custom-designed box to prevent damage during transit. Each valve is wrapped in anti-static foam padding and sealed in a protective plastic bag to ensure it remains clean and free from moisture. The packaging also includes an instruction manual and warranty card for customer reference.
Shipping: We offer reliable shipping options worldwide with tracking available for all orders. The Pneumatic Solenoid Valve is carefully handled and shipped via trusted courier services to ensure timely and safe delivery. Shipping times vary depending on the destination, and customers will receive a confirmation email with tracking details once the order has been dispatched.
