Product Description:

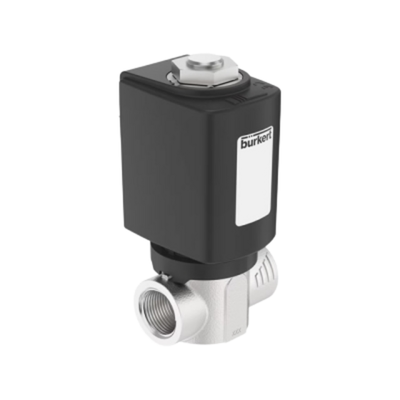

The Bürkert Type 6027 is a direct-acting 2/2-way plunger solenoid valve designed for reliable fluid control. Featuring the circuit function "B", it operates as a normally open (N.O.) valve. This makes it an excellent choice for applications where the valve needs to remain open when not energized.
Constructed with durability in mind, the valve boasts a stainless steel body coupled with a laser-welded plunger guide tube. This robust design significantly improves its pressure resistance and guarantees superior leak-tightness. Being a direct-acting valve, it does not depend on differential pressure to operate, making it ideal for use in zero-pressure and vacuum environments.
The Type 6027 is highly versatile, offering a diverse range of configurations to suit various requirements. It comes with multiple port sizes such as G1/4 and G1/2, different orifice diameters, and a selection of seal materials, with FKM provided as the standard option. These features allow precise customization to meet specific fluid control demands effectively.
Features:
The direct-acting mechanism ensures dependable operation starting from 0 bar, eliminating the need for a minimum pressure differential. This guarantees consistent performance across varying pressure conditions.
Constructed with durability in mind, the valve features a stainless steel body made from grade 1.4404/316L. Additionally, the plunger guide tube is laser-welded, providing exceptional resistance to high pressure and ensuring a leak-tight seal.
Designed with a Normally Open (N.O.) function, the valve remains open when not energized and closes automatically once power is supplied, facilitating reliable control in various applications.
To accommodate a wide array of media and temperature conditions, the valve offers multiple sealing options. These include seal materials such as FKM, EPDM, PTFE, PEEK, and Ceramic, delivering versatility for different operational environments.
An energy-efficient "Kick and Drop" feature is available, utilizing double coil technology that significantly reduces power consumption during holding phases, thus enhancing overall operational efficiency.
For applications involving high pressures, special models can handle pressures up to 250 bar (3626 psi), ensuring suitability for demanding use cases.
The coil is encapsulated in chemically resistant epoxy, providing enhanced protection against aggressive media and prolonging the component’s lifespan.
Featuring a compact and modular push-over solenoid design, the coil allows for 360° rotation, enabling flexible installation in tight or complex setups.
The valve achieves a high protection rating of IP65 when equipped with an appropriate cable plug, safeguarding against dust ingress and water jets.
Furthermore, explosion-proof variants are available, making the valve suitable for deployment within hazardous or explosive environments.
Technical Parameters:
| Function |
2 Way Normally Open |
| Operation |
Plunger Direct Operated |
| Media Temperature |
-10 °C ~ 100 °C |
| Voltage |
12VDC, 24VDC, 24VAC, 220VAC |
| Body Material |
Stainless Steel 316 |
| Pressure |
0 To 15 Bar |
| Port Size |
1/4'', 3/8'', 1/2'' |
| Seal Material |
FKM |
Applications:
The versatile Type 6027B valve is designed to handle a broad spectrum of industrial fluid control applications. Its adaptability makes it an excellent choice across various sectors.
In general industrial settings, it efficiently manages tasks such as shut-off, dosing, filling, and ventilating of both neutral and aggressive media. This ensures reliable performance regardless of the fluid characteristics.
When it comes to vacuum systems, the Type 6027B provides dependable control even under technical vacuum conditions, functioning accurately down to 0 mbar absolute pressure.
For high-pressure environments, this valve is ideal for use in test rigs, gas applications, and filling systems like those found in automotive air conditioning, withstanding pressures of up to 250 bar.
The valve is also suitable for critical process industries, including pharmaceutical manufacturing, food and beverage production, and water treatment facilities, where precision and reliability are paramount.
Specifically tailored burner control versions are available to regulate the supply of heating oil and various other fuels to furnaces and burners, ensuring safe and efficient combustion.
Moreover, the Type 6027B is capable of handling steam and hot media such as oils and gases, making it a flexible solution for temperature-critical applications.
Specialized versions have also been developed for oxygen applications, meeting the stringent requirements necessary for safe and effective oxygen service.
Support and Services:
Our Pneumatic Solenoid Valve product is designed for reliable and efficient operation in various industrial applications. To ensure optimal performance, please follow the installation and maintenance guidelines provided in the product manual.
If you encounter any issues with the solenoid valve, verify that the electrical connections and pneumatic fittings are correctly installed and secure. Ensure that the power supply matches the valve specifications and that the operating environment meets the recommended conditions.
For troubleshooting, common checks include inspecting for air leaks, verifying coil resistance, and confirming that control signals are properly transmitted. Regular maintenance, such as cleaning the valve components and checking for wear, will help prolong the product's service life.
Spare parts and replacement components are available to support ongoing maintenance needs. Please ensure that only genuine parts are used to maintain product integrity and warranty coverage.
We are committed to providing comprehensive technical support to assist you with installation, operation, and troubleshooting. Please refer to the detailed documentation included with the product for further information.
Packing and Shipping:
Product Packaging:
The Pneumatic Solenoid Valve is carefully packaged to ensure maximum protection during transit. Each valve is individually wrapped in anti-static bubble wrap to prevent damage from shocks and vibrations. The wrapped product is then placed in a sturdy, custom-fitted cardboard box that provides additional cushioning and stability. For bulk orders, multiple units are securely arranged in larger cartons with dividers to avoid movement and impact between items. All packaging materials are chosen to be environmentally friendly and compliant with international shipping standards.
Shipping:
We offer reliable shipping options worldwide to deliver the Pneumatic Solenoid Valve safely and promptly. Products are dispatched within 1-3 business days after order confirmation. Shipping methods include air freight, sea freight, and courier services, depending on the destination and customer preference. Each shipment is accompanied by tracking information to allow customers to monitor their order status in real-time. Our logistics partners ensure timely delivery while maintaining the integrity of the product throughout the shipping process.
