Product Description:

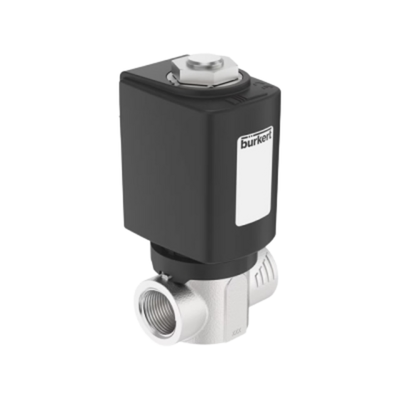

The Type 6027 is a direct-acting 2/2-way plunger solenoid valve designed for efficient fluid control. It operates with the circuit function "B", which means it functions as a normally open (N.O.) valve. This characteristic makes it particularly suitable for applications where the valve needs to remain open when not energized.
Built for durability, this valve incorporates a stainless steel body along with a laser-welded plunger guide tube. These features contribute to enhanced pressure resistance and provide superior leak-tightness. Because it is a direct-acting valve, it does not depend on differential pressure to operate, making it an excellent choice for use in zero-pressure or vacuum conditions.
The Type 6027 is available in a variety of configurations to meet diverse requirements. Options include different port sizes such as G1/4 and G1/2, multiple orifice diameters, and a selection of seal materials, with FKM offered as the standard. This flexibility enables precise customization to suit your specific fluid control applications.
Features:
Direct-Acting Operation: This valve ensures reliable performance starting from 0 bar, requiring no minimum pressure differential to function effectively.
Robust Construction: Built with a stainless steel body (grade 1.4404/316L) and a laser-welded plunger guide tube, it offers excellent resistance to high pressure and guarantees leak-tight operation.
Normally Open (N.O.) Function: The valve remains open when not energized and closes automatically upon power application, providing fail-safe operation.
Versatile Seal Options: It comes with a wide selection of seal materials such as FKM, EPDM, PTFE, PEEK, and Ceramic, allowing compatibility with various media and temperature ranges.
Energy-Saving "Kick and Drop" Feature: Equipped with double coil technology, this option reduces the power consumption during holding, enhancing energy efficiency.
High-Pressure Capability: Special versions of the valve can withstand pressures of up to 250 bar (3626 psi), making them suitable for demanding applications.
Chemical-Resistant Coil: The coils are encapsulated in chemically resistant epoxy, ensuring durability when exposed to aggressive environments.
Compact & Modular Design: Featuring a compact push-over solenoid system, the coil can be rotated a full 360°, offering flexibility in installation.
High Protection Class: When paired with a suitable cable plug, the valve assembly achieves an IP65 rating, protecting it against dust and water ingress.
Explosion-Proof Variants: For use in hazardous environments, explosion-proof versions are available, ensuring safety compliance under strict conditions.
Technical Parameters:
| Function |
2 Way Normally Open |
| Voltage |
12VDC, 24VDC, 24VAC, 220VAC |
| Pressure |
0 To 15 Bar |
| Seal Material |
FKM |
| Temperature |
-10 To 100 °C |
| Body Material |
Stainless Steel 316 |
| Port Size |
1/4'', 3/8'', 1/2'' |
| Operation |
Plunger Direct Operated |
Applications:
The Type 6027B is a highly adaptable component, ideal for managing a variety of industrial fluid control tasks. Its versatility makes it suitable for numerous applications across different industries.
In general industrial settings, it is used for shutting off, dosing, filling, and ventilating both neutral and aggressive media. This broad functionality ensures reliable performance under diverse conditions.
When it comes to vacuum systems, the Type 6027B provides dependable regulation, even in demanding technical vacuum environments with pressures as low as 0 mbar absolute.
For high-pressure applications, it supports test rigs, gas handling, and filling systems, such as those found in automotive air conditioning, accommodating pressures up to 250 bar with precision and safety.
The valve is also well-suited for process and critical applications, including pharmaceutical production, food and beverage processing, and water treatment, where strict control and hygiene standards are essential.
Designed specifically for burner control, the Type 6027B effectively manages the supply of heating oil and other fuels to furnaces and burners, ensuring stable and efficient combustion.
It is compatible with steam and hot media, making it appropriate for controlling steam, oils, and gases at elevated temperatures.
Additionally, special versions of the Type 6027B are available for oxygen service, catering to the unique requirements of oxygen-related applications.
