Product Description:

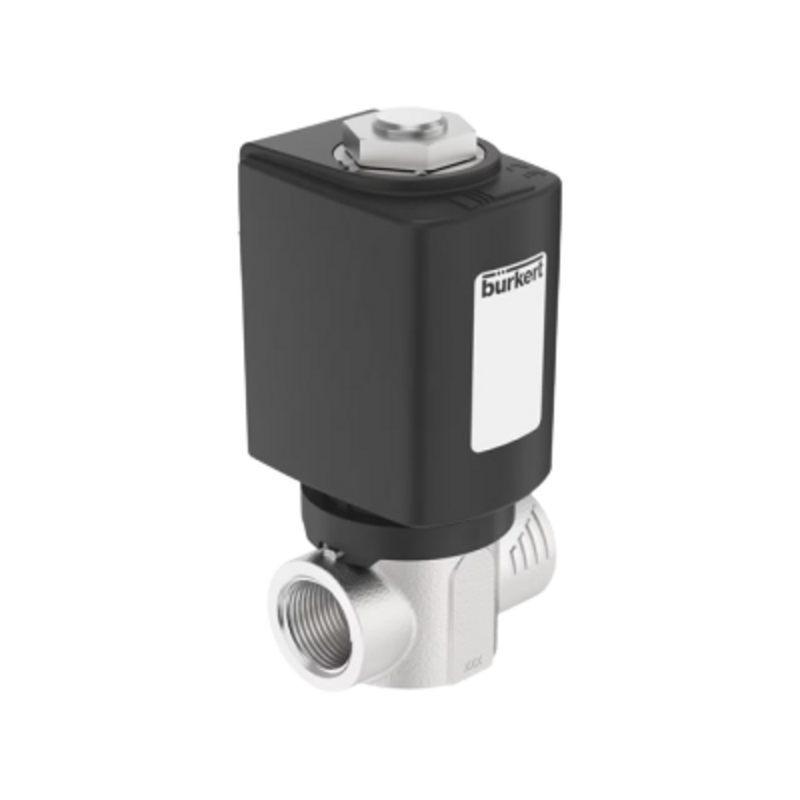

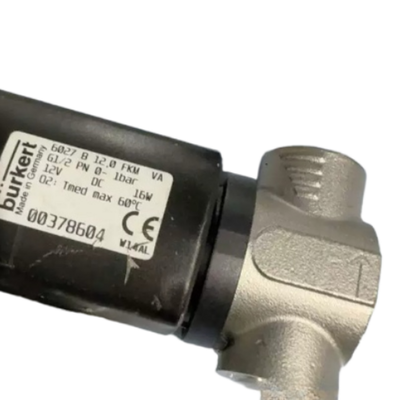

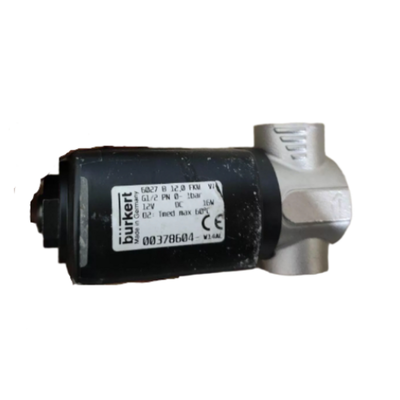

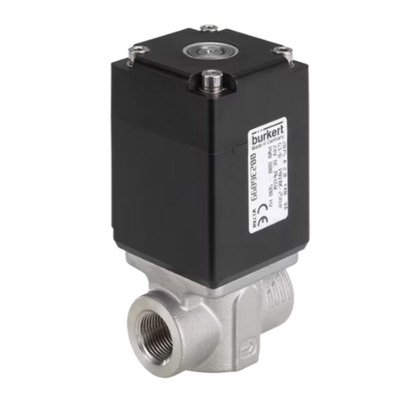

The Type 6027 is a direct-acting 2/2-way plunger solenoid valve designed for efficient fluid control. It features circuit function "B" which means it operates as a normally open (N.O.) valve. This characteristic makes it particularly suitable for applications where the valve needs to remain open when it is de-energized.
Built with durability in mind, the valve boasts a stainless steel body along with a laser-welded plunger guide tube. These construction elements improve its pressure resistance capabilities and ensure excellent leak-tightness. Being a direct-acting valve, it does not rely on differential pressure to operate, making it ideal for use in conditions involving zero pressure or vacuum environments.
Furthermore, the Type 6027 is available in a variety of configurations to meet diverse requirements. It offers multiple port sizes such as G1/4 and G1/2, various orifice diameters, and different seal materials, with FKM seals provided as the standard option. This versatility allows users to tailor the valve precisely to their specific fluid control applications.
Features:
Direct-Acting Operation: This valve ensures reliable performance starting from 0 bar, requiring no minimum pressure differential to operate effectively. This feature makes it highly dependable in a variety of applications.
Robust Construction: Built with a stainless steel body made of grade 1.4404/316L and equipped with a laser-welded plunger guide tube, the valve offers excellent resistance to high pressure and guarantees leak-tightness for safe operation.
Normally Open (N.O.) Function: Designed to remain open when de-energized, the valve closes only when power is applied, allowing for fail-safe operation in critical systems.
Versatile Seal Options: The valve is available with multiple seal materials including FKM, EPDM, PTFE, PEEK, and Ceramic. This variety ensures compatibility with a wide range of media and temperature conditions.
Energy-Saving "Kick and Drop" Option: Featuring double coil technology, this option significantly reduces holding power consumption, leading to increased energy efficiency during operation.
High-Pressure Capability: Specialized versions of the valve can handle pressures up to 250 bar (3626 psi), making them suitable for demanding high-pressure environments.
Chemical-Resistant Coil: The coils are encapsulated with chemically resistant epoxy, enhancing durability and reliability even when exposed to aggressive substances.
Compact & Modular Design: The push-over solenoid system is designed to be compact. Furthermore, the coil can be rotated 360 degrees, providing flexibility in installation and space management.
High Protection Class: When equipped with an appropriate cable plug, the valve achieves an IP65 rating, ensuring superior protection against dust and water ingress.
Explosion-Proof Variants: For applications in hazardous environments, explosion-proof versions of the valve are available, guaranteeing safe operation where explosive atmospheres may be present.
Technical Parameters:
| Pressure |
0 To 15 Bar |
| Voltage |
12VDC, 24VDC, 24VAC, 220VAC |
| Operation |
Plunger Direct Operated |
| Seal Material |
FKM |
| Temperature |
-10 To 100 °C |
| Function |
2 Way Normally Open |
| Body Material |
Stainless Steel 316 |
| Port Size |
1/4'', 3/8'', 1/2'' |
Applications:
The versatile Type 6027B valve is designed to handle a broad spectrum of industrial fluid control applications. Its adaptability makes it an excellent choice for various operational environments and requirements.
In general industrial settings, the Type 6027B is ideal for tasks such as shut-off, dosing, filling, and ventilating both neutral and aggressive media. Its robust construction ensures reliable performance under diverse conditions.
For vacuum systems, this valve offers dependable control even in demanding technical vacuum applications, functioning effectively down to 0 mbar absolute pressure.
When it comes to high-pressure environments, the Type 6027B excels in test rigs, gas-related applications, and filling systems like those used in automotive air conditioning, supporting pressures up to 250 bar.
The valve is also well-suited for critical process applications across pharmaceutical, food and beverage, and water treatment industries, where precision and reliability are paramount.
In burner control scenarios, it is specifically engineered to manage the supply of heating oil and other fuels to furnaces and burners, ensuring safe and efficient operation.
Moreover, the Type 6027B can handle steam and hot media applications, including the regulation of steam, oils, and gases under elevated temperatures.
For oxygen service, specialized versions of the valve are available to meet the stringent requirements demanded by oxygen applications, ensuring safety and performance.
Support and Services:
Our Pneumatic Solenoid Valve product is designed for reliability and high performance in various industrial applications. To ensure optimal operation, please follow the installation guidelines and maintenance procedures outlined in the user manual.
If you experience any issues with the product, verify that the power supply and air pressure meet the specified requirements. Regularly inspect the valve for any signs of wear or contamination and clean components as necessary to maintain functionality.
For technical support, our team is available to assist with troubleshooting, replacement parts, and warranty claims. We also offer comprehensive service plans to help maximize the lifespan and efficiency of your pneumatic solenoid valves.
Additional resources, including detailed datasheets, installation videos, and FAQ documents, are available to support your product usage and technical needs.
