Product Description:

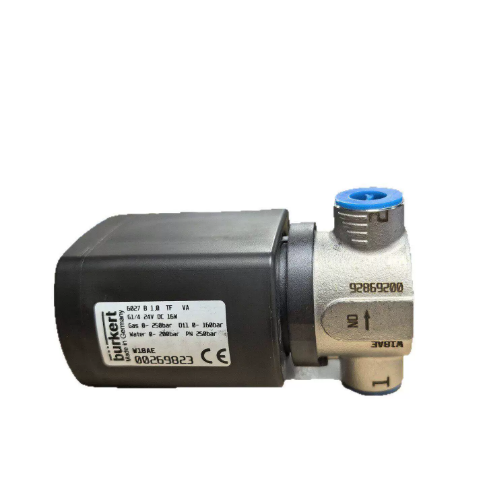

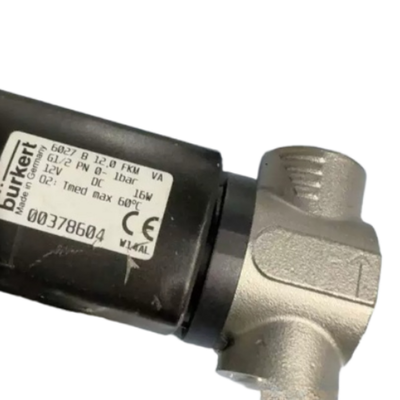

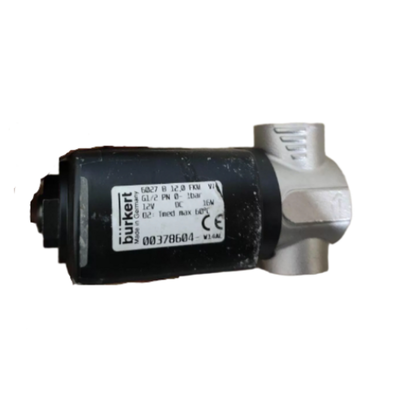

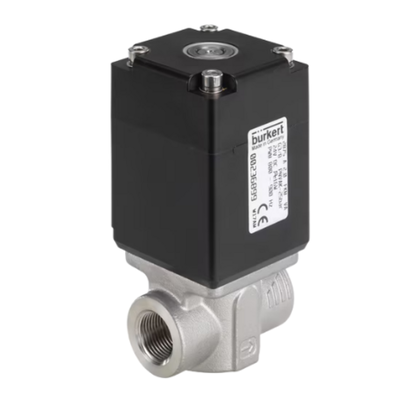

The Type 6027 is a direct-acting 2/2-way plunger solenoid valve designed for reliable performance. When configured with circuit function "B", it operates as a normally open (N.O.) valve, making it an excellent choice for applications where the valve needs to remain open when not energized.
Built with durability in mind, this valve incorporates a stainless steel body along with a laser-welded plunger guide tube. This robust construction significantly improves pressure resistance and guarantees outstanding leak-tightness. Being a direct-acting model, the valve functions without the need for differential pressure, which makes it perfectly suited for use in zero-pressure or vacuum environments.
The Type 6027 is highly versatile, offering numerous configuration options. These include different port sizes such as G1/4 and G1/2, a variety of orifice diameters, and multiple seal materials, with FKM provided as the standard choice. This range of options enables precise customization to meet the unique requirements of your fluid control applications.
Features:
Direct-Acting Operation: This valve ensures reliable performance starting from 0 bar, requiring no minimum pressure differential to function effectively. This feature makes it suitable for a wide range of applications where varying pressure conditions are encountered.
Robust Construction: Constructed with a stainless steel body (1.4404/316L) along with a laser-welded plunger guide tube, the valve offers excellent durability. Its design provides high resistance to pressure and ensures leak-tightness, enhancing overall reliability.
Normally Open (N.O.) Function: The valve remains open when it is de-energized and closes upon the application of power. This normally open functionality is ideal for safety and operational scenarios where fluid flow must be maintained unless actively shut off.
Versatile Seal Options: To accommodate a broad spectrum of media and temperature ranges, the valve is available with various seal materials including FKM, EPDM, PTFE, PEEK, and Ceramic. This flexibility allows it to be customized for specific environmental conditions.
Energy-Saving "Kick and Drop" Option: Featuring double coil technology, this energy-efficient variant significantly reduces the power consumption required to hold the valve in position, making it a cost-effective and environmentally friendly choice.
High-Pressure Capability: Specially designed versions of the valve can handle pressures up to 250 bar (3626 psi), enabling use in demanding high-pressure systems without compromising safety or performance.
Chemical-Resistant Coil: The coils of the valve are encapsulated in chemically resistant epoxy, providing enhanced protection and longevity when exposed to harsh chemical environments.
Compact & Modular Design: The solenoid system features a compact push-over design with a coil that can be rotated a full 360 degrees. This modularity facilitates easier installation and maintenance in various setups.
High Protection Class: When equipped with a suitable cable plug, the valve achieves an IP65 rating, offering substantial protection against dust and water ingress for reliable operation in challenging conditions.
Explosion-Proof Variants: For use in hazardous environments, explosion-proof versions of the valve are available, ensuring compliance with safety standards and reliable performance under potentially explosive atmospheres.
Technical Parameters:
| Operation | Plunger Direct Operated |
| Port Size | 1/4'', 3/8'', 1/2'' |
| Voltage | 12VDC, 24VDC, 24VAC, 220VAC |
| Function | 2 Way Normally Open |
| Pressure | 0 To 15 Bar |
| Body Material | Stainless Steel 316 |
| Temperature | -10 To 100 °C |
| Seal Material | FKM |
Applications:
The Type 6027B valve is a highly adaptable solution designed to handle a variety of industrial fluid control applications. Its versatility makes it ideal for numerous sectors requiring precise and reliable fluid management.
In general industrial settings, the Type 6027B is perfect for operations such as shut-off, dosing, filling, and ventilating. It can effectively manage both neutral and aggressive media, ensuring optimal performance across different fluid types.
For vacuum systems, this valve provides dependable control even under technical vacuum conditions, functioning efficiently down to absolute pressures of 0 mbar. This makes it a trusted component in sensitive vacuum applications.
When it comes to high-pressure environments, the Type 6027B is suitable for use in test rigs, gas applications, and filling systems, including those used in automotive air conditioning. It can withstand pressures as high as 250 bar, ensuring robust performance.
The valve is also well-suited for process and critical applications, particularly in the pharmaceutical, food and beverage, and water treatment industries where hygiene and precise control are paramount.
Specifically engineered burner control versions of the Type 6027B manage the supply of heating oil and other fuels. These variants are tailored to regulate fuel flow to furnaces and burners effectively.
Additionally, the valve performs reliably with steam and hot media, including oils and gases, making it a versatile component in thermal fluid control applications.
For oxygen service requirements, special versions of the Type 6027B are available, ensuring safe and efficient operation in oxygen-rich environments.
Support and Services:
Our Pneumatic Solenoid Valve product is designed for reliable and efficient operation in various industrial applications. To ensure optimal performance and longevity, please follow the installation and maintenance guidelines provided in the user manual.
For technical support, our team of experts is available to assist with troubleshooting, product selection, and system integration. We recommend verifying compatibility with your existing pneumatic systems before installation.
Regular maintenance includes checking for air leaks, ensuring the electrical connections are secure, and keeping the valve clean from dust and debris. Replacement of worn or damaged components should be performed promptly to avoid operational issues.
We also offer repair services and replacement parts to minimize downtime and maintain system efficiency. For detailed service procedures or to request support, please refer to the product documentation or our online resources.
Our commitment is to provide comprehensive support and service to help you maximize the value and performance of your Pneumatic Solenoid Valve.
Packing and Shipping:
Product Packaging and Shipping
The Pneumatic Solenoid Valve is carefully packaged to ensure it arrives in perfect condition. Each valve is securely placed in a protective plastic bag and then cushioned with foam or bubble wrap to prevent any damage during transit. The wrapped product is then placed in a sturdy cardboard box, clearly labeled with product information and handling instructions.
For bulk orders, multiple units are organized in larger boxes with additional padding to avoid movement and impact. All packages are sealed tightly and marked with appropriate shipping labels.
Shipping options include standard ground, expedited, and international delivery. We partner with reliable carriers to ensure timely and safe delivery. Tracking information is provided once the order is dispatched, allowing customers to monitor their shipment progress.
Special care is taken when shipping to areas with extreme weather conditions to maintain the integrity and functionality of the Pneumatic Solenoid Valve.
