Product Description:

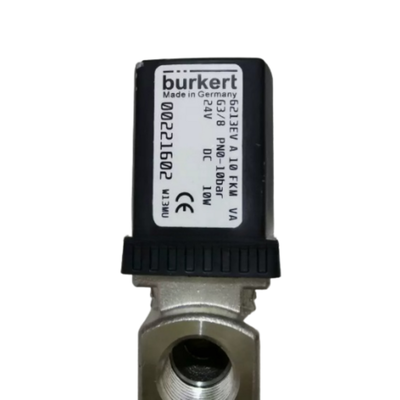

The Type 6213EV is a servo-assisted, two-way normally closed diaphragm solenoid valve designed for dependable and efficient fluid regulation. It belongs to the S.EV series and incorporates a spring-coupled diaphragm mechanism that facilitates the valve's opening, ensuring smooth and reliable performance.
Built to withstand challenging industrial conditions, this valve is offered with a stainless steel body made from 1.4408/316L, providing excellent corrosion resistance and long-lasting durability. The standard variant is optimized for liquid applications and requires a minimum differential pressure to achieve full valve opening. For applications involving gas and vacuum, a specialized HP00 version is available, which can open the valve without the need for any differential pressure.
The Type 6213EV comes with a broad selection of configurations to meet diverse fluid control requirements. Options include multiple port sizes ranging from G 3/8" to G 2", nominal diameters from DN 10 up to DN 40, and various seal materials such as NBR, FKM, and EPDM. This versatility allows users to tailor the valve precisely to their specific operational demands.
Features:
Servo-Assisted Operation
The valve incorporates a spring-coupled diaphragm system that aids in opening and closing, ensuring reliable and consistent performance in various applications.
Zero Differential Pressure Option
A specialized HP00 version is available that operates without requiring differential pressure, making it especially suitable for gas and vacuum environments.
Stainless Steel Construction
Constructed from high-grade stainless steel 1.4408 (316L), the valve body offers outstanding resistance to corrosion and enhanced durability for long service life.
High Flow Rates
Designed with a compact form factor, this valve provides excellent flow capacity, supporting nominal diameters up to DN 40.
Water Hammer Free & Low Noise
Its damped design ensures quiet closing actions while effectively eliminating water hammer effects, contributing to system longevity and reduced noise pollution.
Energy-Saving Coil Option
An energy-efficient version equipped with Kick-and-Drop (KD) double coil technology is offered to minimize power consumption during holding operations.
Wide Media Compatibility
Multiple seal material options such as NBR, FKM, and EPDM are available, enabling operation across a broad temperature range from -30°C up to +120°C.
High Protection Class
With the correct cable plug installed, the valve achieves an IP65 protection rating. Furthermore, the stainless steel body variant complies with NEMA 4X standards for enhanced environmental protection.
Vibration-Proof Coil
Featuring a screwed coil system, the valve ensures secure and stable operation even in demanding and vibration-prone environments.
Explosion-Proof Variants
Models certified with ATEX/IECEx approval are available, making them suitable for installation in hazardous and explosive atmospheres.
100% Duty Cycle
Designed for continuous use, this valve supports a 100% duty cycle, catering to challenging industrial applications that require uninterrupted operation.
Versatile Port Sizes
The valve is offered in multiple port sizes, ranging from G 3/8" to G 2", as well as NPT connections, providing flexibility to fit various piping systems.
Technical Parameters:
| Body Material |
Stainless Steel 316L |
| Pressure |
0 To 10 Bar |
| Nominal Diameters |
DN 10 To DN 40 |
| Seal Materials |
NBR, FKM, EPDM |
| Temperature |
Max. 55 ℃ |
| Port Connections |
G3/8″ To G2″; NPT3/4″ |
| Voltages |
24VDC, 110VAC, 230VAC |
| Function |
2 Way Normally Closed |
Applications:
The versatile Type 6213EV is designed to handle a broad spectrum of industrial fluid control needs. Its adaptability makes it an ideal choice for various applications across multiple industries.
In the realm of water treatment, it is well-suited for use in both municipal and industrial water treatment plants as well as swimming pool technology. This ensures reliable performance in managing water quality and flow.
When it comes to industrial fluid control, the Type 6213EV excels in shut-off, dosing, and regulation tasks involving neutral liquids, water, and hydraulic oil. Its precision and durability support efficient fluid management in industrial settings.
The valve is also applicable in gas and vacuum systems including compressed air setups and technical vacuum applications, especially when paired with the HP00 version, ensuring optimal operation under varying pressure conditions.
For heating and cooling systems, the Type 6213EV is used in HVAC applications and temperature control circuits, providing reliable control to maintain desired environmental conditions.
In process industries such as chemical and pharmaceutical sectors, it handles compatible neutral media, facilitating safe and efficient processing workflows.
Combustion installations benefit from the Type 6213EV as a safety shut-off device for burners and heating systems, enhancing operational safety and compliance.
Additionally, it supports oil and hydraulic systems by effectively controlling hydraulic oil and oil without additives, ensuring smooth and reliable system performance.
Finally, in the food and beverage industry, the valve is suitable for processing neutral fluids and water within production environments, maintaining hygiene and process integrity.
