Product Description:

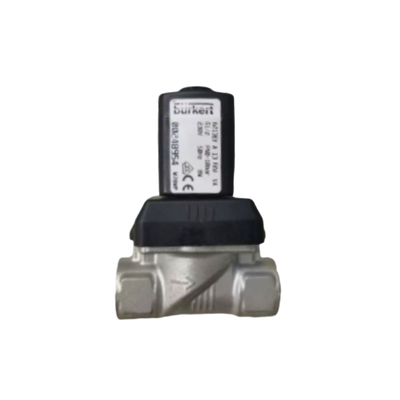

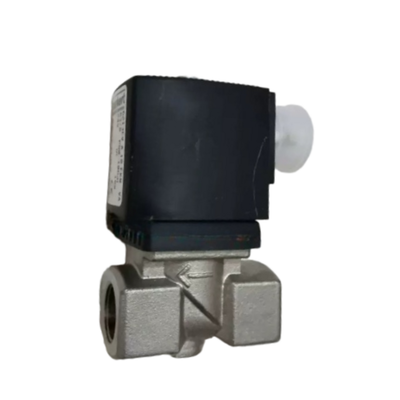

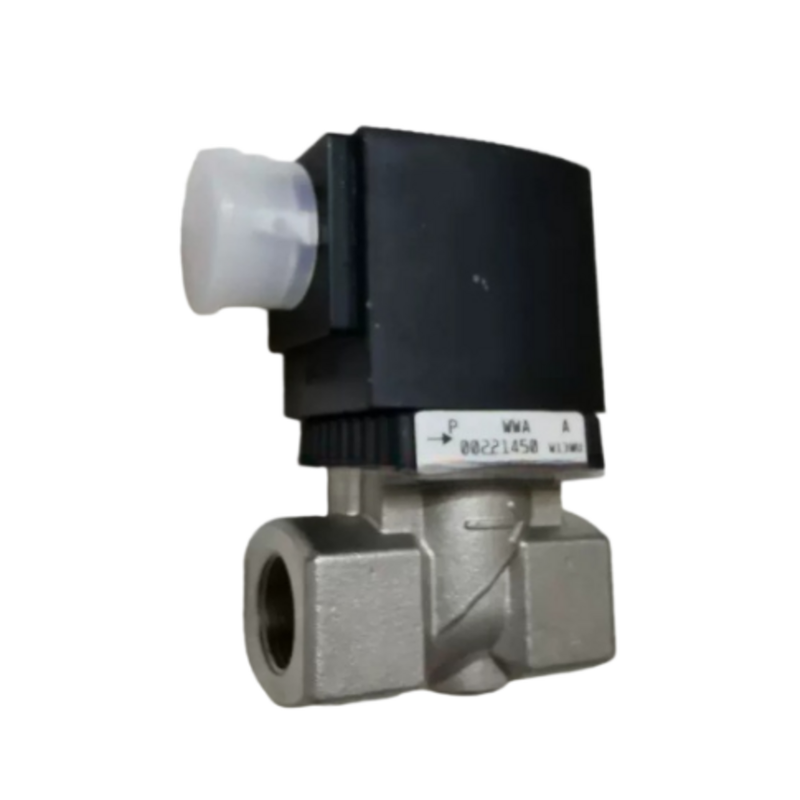

The Type 6213EV is a servo-assisted 2/2-way normally closed diaphragm solenoid valve, designed to provide reliable and efficient control of fluids. It belongs to the S.EV series and incorporates a spring-coupled diaphragm that aids the opening mechanism, ensuring smooth and consistent operation throughout its use.
Engineered specifically for demanding industrial settings, this valve is offered with a stainless steel body made from grade 1.4408/316L, which delivers exceptional resistance to corrosion and enhances durability. The standard version of the valve is intended for liquid applications and requires a minimum differential pressure to achieve full opening. For gas and vacuum scenarios, there is a specialized HP00 variant available that allows the valve to open without any differential pressure.
The Type 6213EV is highly versatile, available in multiple configurations to meet diverse fluid control requirements. Options include a variety of port sizes ranging from G 3/8" to G 2", nominal diameters from DN 10 to DN 40, and different seal materials such as NBR, FKM, and EPDM. This flexibility ensures that the valve can be precisely tailored to suit your specific operational needs.
Features:
The valve features a servo-assisted operation utilizing a spring-coupled diaphragm system, which ensures reliable performance during both opening and closing actions. This design enhances the efficiency and dependability of the valve's function.
An optional zero differential pressure variant, known as the HP00 version, is specifically engineered to open without requiring any differential pressure. This makes it particularly suitable for use in gas and vacuum applications where pressure conditions vary.
Constructed from high-grade stainless steel 1.4408 (316L), the valve body offers exceptional corrosion resistance and long-lasting durability, making it ideal for challenging environments.
Despite its compact size, the valve is capable of delivering high flow rates with nominal diameters extending up to DN 40, ensuring efficient media flow in various system configurations.
The design incorporates damping features that provide quiet closing operations while effectively eliminating the occurrence of water hammer, thereby enhancing system longevity and reducing noise pollution.
For improved energy efficiency, the valve is available with a Kick-and-Drop (KD) double coil technology option. This innovative coil reduces power consumption during the holding phase of operation, contributing to overall energy savings.
To accommodate a wide range of media, multiple seal materials such as NBR, FKM, and EPDM are offered. These seals support operating temperatures ranging from -30°C up to +120°C, providing versatility across diverse applications.

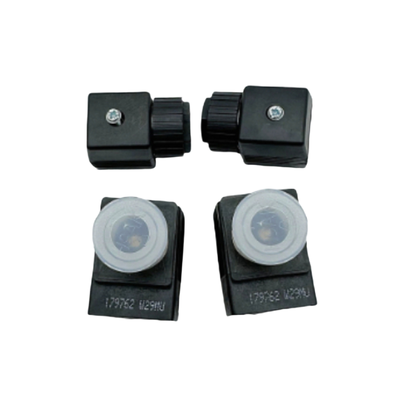

The valve maintains a high protection class rating of IP65 when fitted with the appropriate cable plug. Additionally, the stainless steel body version complies with NEMA 4X standards, ensuring robust protection against environmental factors.
Equipped with a screwed coil system, the valve’s coil is vibration-proof, guaranteeing secure and stable operation even in demanding or high-vibration environments.
For use in hazardous locations, explosion-proof variants are available with ATEX and IECEx approvals, ensuring safety and compliance with international standards.
The valve supports a 100% duty cycle, allowing continuous operation without interruption, which is essential for demanding industrial applications.
Versatility in installation is provided through a range of port sizes, including G 3/8" to G 2" and NPT connections, making it compatible with various piping systems.
Technical Parameters:
| Voltages |
24VDC, 110VAC, 230VAC |
| Temperature |
Max. 55 ℃ |
| Seal Materials |
NBR, FKM, EPDM |
| Port Connections |
G3/8″ To G2″; NPT3/4″ |
| Nominal Diameters |
DN 10 To DN 40 |
| Body Material |
Stainless Steel 316L |
| Function |
2 Way Normally Closed |
| Pressure |
0 To 10 Bar |
Applications:
The versatile Type 6213EV is designed to meet the demands of a broad spectrum of industrial fluid control applications. Its adaptability makes it an excellent choice across various sectors, ensuring efficient and reliable operation.
In water treatment, the Type 6213EV is employed in municipal and industrial water treatment plants as well as swimming pool technology, effectively managing the flow and quality of water.
For industrial fluid control, it serves crucial roles in shutting off, dosing, and regulating neutral liquids, water, and hydraulic oil, supporting smooth and safe processing within factories and plants.
The device is also applicable in gas and vacuum systems, such as compressed air setups and technical vacuum applications, particularly when equipped with the HP00 version, enhancing performance under specific conditions.
Heating and cooling systems benefit from the Type 6213EV in HVAC applications and temperature control circuits, maintaining precise climate control and energy efficiency.
Within process industries, it is suitable for chemical and pharmaceutical processing tasks involving compatible neutral media, ensuring contamination-free and accurate fluid handling.
In combustion installations, the Type 6213EV functions as a safety shut-off device for burners and heating systems, enhancing operational safety and compliance.
Furthermore, it plays an important role in oil and hydraulic systems by controlling hydraulic oil and oil without additives, facilitating dependable machinery operation.
Finally, the Type 6213EV is utilized in the food and beverage sector for processing neutral fluids and water, adhering to hygiene standards required in food production environments.
Support and Services:
Our Pneumatic Solenoid Valve product comes with dedicated technical support to ensure optimal performance and reliability. Our team of experts is available to assist with installation guidance, troubleshooting, and maintenance tips. We provide detailed product documentation, including user manuals, wiring diagrams, and specification sheets to help you understand and utilize the valve effectively.
In addition to technical support, we offer a range of services such as custom configuration, testing, and calibration to meet your specific application requirements. Our service team is committed to providing timely solutions and minimizing downtime in your operations.
For any issues related to the Pneumatic Solenoid Valve, including operational faults or performance concerns, please consult the troubleshooting section in the product manual. If further assistance is needed, our support staff is ready to provide expert advice to resolve your queries efficiently.
Regular maintenance services are recommended to prolong the valve’s lifespan and maintain its functionality. We provide maintenance schedules and recommendations tailored to your usage conditions.
Trust our technical support and service team to help you achieve seamless integration and reliable operation of your Pneumatic Solenoid Valve system.
Packing and Shipping:
Product Packaging:
The Pneumatic Solenoid Valve is carefully packaged to ensure protection during transit. Each valve is individually wrapped in anti-static foam and placed inside a sturdy cardboard box. The inner packaging includes custom foam inserts to prevent movement and damage. The outer packaging is labeled with product details, handling instructions, and barcodes for easy identification.
Shipping:
We offer worldwide shipping with reliable carriers to ensure timely delivery. The Pneumatic Solenoid Valve packages are shipped in secure cartons and pallets depending on the order size. Tracking information is provided upon dispatch. For international shipments, all necessary customs documentation is included to facilitate smooth clearance. Please allow additional time for delivery based on destination and shipping method selected.
