Product Description:

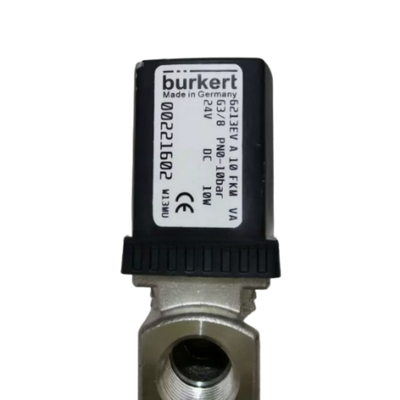

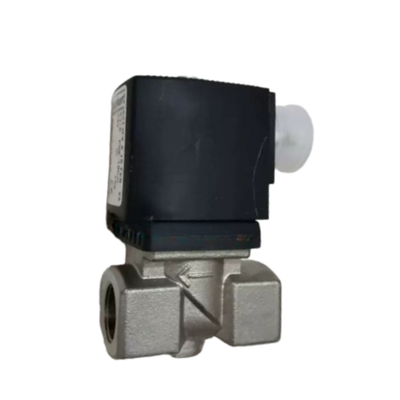

The Type 6213EV is a servo-assisted 2/2-way normally closed diaphragm solenoid valve, specifically designed to provide reliable and efficient fluid control. Part of the S.EV series, this valve incorporates a spring-coupled diaphragm that aids the opening process, ensuring smooth and consistent performance.
Engineered for use in demanding industrial settings, the valve is constructed with a stainless steel body (1.4408/316L), which offers excellent corrosion resistance and long-lasting durability. The standard version of the valve is suitable for liquid applications, requiring a minimum differential pressure to achieve full opening. For applications involving gas or vacuum, a specialized HP00 version is available that allows the valve to open without any differential pressure.
The Type 6213EV is offered in a variety of configurations to meet diverse fluid control requirements. These options include multiple port sizes ranging from G 3/8" to G 2", nominal diameters from DN 10 to DN 40, and a selection of seal materials such as NBR, FKM, and EPDM. This flexibility ensures precise adaptation to your specific industrial needs.
Features:
The valve features a servo-assisted operation through its spring-coupled diaphragm system, which ensures reliable performance by supporting smooth valve opening and closing actions.
For applications involving gas and vacuum, the special HP00 version offers a zero differential pressure option, allowing the valve to open without the need for differential pressure.
Constructed from stainless steel 1.4408 (316L), the valve body provides exceptional corrosion resistance and long-lasting durability, making it suitable for challenging environments.
Despite its compact design, the valve delivers high flow rates with nominal diameters reaching up to DN 40, ensuring efficient fluid throughput.
The damped design not only contributes to quiet operation by preventing noise during valve closure but also effectively eliminates water hammer effects, protecting the piping system.
An energy-saving coil option is available, incorporating Kick-and-Drop (KD) double coil technology which significantly reduces power consumption during the holding phase of operation.
Offering wide media compatibility, the valve accommodates multiple seal materials including NBR, FKM, and EPDM, allowing it to operate efficiently within a temperature range of -30°C to +120°C.
With an IP65 protection rating when fitted with the correct cable plug, and a stainless steel body version that meets NEMA 4X standards, the valve is well-suited for demanding and harsh operating environments.
The vibration-proof coil design, featuring a screwed coil system, ensures secure and stable operation even under vibration-prone and demanding conditions.
For hazardous area installations, explosion-proof variants are available with ATEX and IECEx certifications, enhancing safety and compliance in critical applications.
Designed for continuous use, the valve supports a 100% duty cycle, making it ideal for rigorous industrial processes that require uninterrupted operation.
Furthermore, the valve comes in versatile port sizes ranging from G 3/8" to G 2" as well as NPT connections, providing flexibility to integrate with various piping systems.
Technical Parameters:
| Function |
2 Way Normally Closed (normally closed solenoid valve) |
| Nominal Diameters |
DN 10 To DN 40 |
| Voltages |
24VDC, 110VAC, 230VAC |
| Body Material |
Stainless Steel 316L |
| Temperature |
Max. 55 ℃ |
| Pressure |
0 To 10 Bar |
| Port Connections |
G3/8″ To G2″; NPT3/4″ |
| Seal Materials |
NBR, FKM, EPDM |
| Product Type |
Solenoid Valve, Pilot Diaphragm Solenoid Valve |
Applications:
The Type 6213EV is a highly versatile device designed to cater to a broad spectrum of industrial fluid control needs. Its adaptability makes it an ideal choice for various sectors requiring precise and reliable fluid management.
In the realm of water treatment, the Type 6213EV serves effectively in both municipal and industrial water treatment facilities, as well as in swimming pool technologies, ensuring optimal water quality and flow regulation.
For industrial fluid control, this device excels in the shut-off, dosing, and regulation of neutral liquids, including water and hydraulic oil, providing robust performance in diverse operational settings.
When it comes to gas and vacuum systems, the Type 6213EV supports compressed air systems and technical vacuum applications, especially with its HP00 version, delivering reliable functionality under demanding conditions.
Additionally, it is well-suited for heating and cooling systems, playing an integral role in HVAC applications and temperature control circuits to maintain stable and efficient thermal management.
In process industries, such as chemical and pharmaceutical manufacturing, the Type 6213EV handles compatible neutral media with precision, supporting critical production processes.
It also functions as a safety shut-off device in combustion installations, including burners and heating systems, enhancing operational safety and control.
Moreover, the Type 6213EV is effective in controlling hydraulic oil and oil without additives within oil and hydraulic systems, ensuring smooth and reliable equipment performance.
Finally, in the food and beverage sector, it facilitates the processing of neutral fluids and water, complying with the stringent requirements of food production environments.
Support and Services:
Our Pneumatic Solenoid Valve product is backed by comprehensive technical support and services to ensure optimal performance and customer satisfaction. We provide detailed product documentation, including installation guides, operation manuals, and maintenance instructions to assist users in proper handling and usage.
Technical support is available to address any questions or issues related to product selection, installation, troubleshooting, and configuration. Our experienced engineers offer expert advice to help optimize system integration and enhance operational efficiency.
We also offer customized solutions tailored to specific application requirements, ensuring that our Pneumatic Solenoid Valves meet the unique needs of various industries. Regular software and firmware updates are provided where applicable to maintain product reliability and introduce new features.
In addition, we provide training sessions and webinars to educate customers on best practices and advanced functionalities of our solenoid valves. Our commitment to quality is supported by prompt after-sales service, including repair, replacement, and warranty support to minimize downtime and maintain continuous operation.
For any technical assistance or service inquiries, customers are encouraged to refer to the product manual or reach out to our dedicated support team through the appropriate channels.
Packing and Shipping:
Product Packaging: The Pneumatic Solenoid Valve is securely packed in a sturdy, corrosion-resistant box to ensure protection during transit. Each valve is individually wrapped with anti-static foam and bubble wrap to prevent any damage from shocks or vibrations. The packaging includes clear labeling with product specifications, model number, and handling instructions to facilitate easy identification and safe handling.
Shipping: The Pneumatic Solenoid Valve is shipped using reliable courier services with tracking options available. We offer multiple shipping methods including standard, expedited, and freight shipping to meet various customer needs. All shipments are carefully inspected before dispatch to guarantee product quality. International shipments comply with all relevant export regulations and include necessary documentation to ensure smooth customs clearance.
