Compact Flange Cylinder Spare Parts CQMB32 PS Seal Kit Complete sealing components for rapid field repair of workpiece holding fixtures

Product Description:

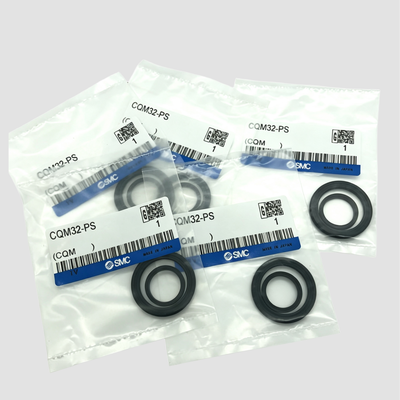

These guide rod cylinder seal kits are precision-engineered sets designed specifically for the maintenance and overhaul of CQMB series compact guided pneumatic cylinders. They accommodate bore sizes ranging from 12mm to 63mm. Each kit includes all the essential sealing components needed for a comprehensive cylinder rebuild, such as the piston seal, rod seal, and tube gasket.

Manufactured from high-quality NBR (nitrile rubber), the seals provide outstanding resistance to wear, oil, and abrasion. This ensures dependable performance in various pneumatic applications. The CQMB series compact guide cylinders incorporate an integrated guide rod and plate design, which delivers exceptional non-rotating accuracy of ±0.2° and lateral load resistance that is four times greater than that of standard CQ2K cylinders. These characteristics make them particularly suitable for precision assembly and pick-and-place tasks.

By regularly replacing seals with these kits, users can restore optimal cylinder performance, prevent air leakage, and significantly extend the service life of their existing actuators. This maintenance approach offers a cost-effective alternative to full cylinder replacement. Please note that the seal kit does not include a grease pack; this must be purchased separately. The grease pack is identified by the part number GR-S-010 and comes in a 10g size.

Features:

The Complete Seal Kit provides everything you need for a full cylinder rebuild. Each kit contains a piston seal, rod seal, and tube gasket, ensuring a comprehensive solution for restoring your cylinder's functionality.

This seal kit is available in a wide range of bore sizes including 12mm, 16mm, 20mm, 25mm, 32mm, 40mm, 50mm, and 63mm, making it adaptable for various applications and requirements.

Manufactured from high-quality NBR (nitrile rubber), the seals exhibit excellent resistance to oil and wear, guaranteeing durability and long-lasting performance even in demanding environments.

Specifically designed to be compatible with the CQMB series, these kits fit compact guide rod cylinders that feature built-in guide rods, ensuring seamless integration and reliable operation.

By replacing worn seals, the kit eliminates air leakage, effectively restoring the cylinder’s original force and operating speed. This maintenance significantly improves the overall performance.

The seal kit supports cylinders with ±0.2° non-rotating accuracy, maintaining precise alignment and preventing unwanted rotation during operation.

Additionally, it suits cylinders that have a lateral load resistance up to four times greater than that of the CQ2K series, making it robust enough for higher stress applications.

Offering a cost-effective maintenance solution, this kit costs only a fraction of a new cylinder’s price, thus extending the service life of your actuators without heavy investment.

The seal kit is suitable for use within an operating temperature range of -10°C to +70°C, accommodating a variety of working conditions.

For inventory management, each bore size is associated with a single kit number, simplifying stocking procedures and reducing complexity.

For proper lubrication during installation, a separate grease pack (GR-S-010), containing 10 grams of grease, is available to ensure smooth assembly and optimal seal performance.

Technical Parameters:

Applications:

In pick and place units , maintaining guided cylinders is essential for ensuring precision in positioning systems. Regular upkeep helps to sustain accuracy and prolong the lifespan of these components.

Within the realm of factory automation , guided cylinders in automated production lines often require timely repairs. Keeping these cylinders in optimal condition is crucial for smooth and efficient manufacturing processes.

For material handling applications, replacing seals in cylinders used in conveyors and handling systems is a key maintenance task. Proper sealing prevents leaks and maintains operational efficiency.

Cylinders involved in clamping and pressing operations, which typically exert high force, also need regular maintenance to ensure reliable performance and avoid costly downtime.

In the field of packaging machinery , seal kits are utilized for the cylinders in packaging and filling equipment. These kits help maintain airtightness and smooth operation during packaging processes.

The manufacture of electronic components involves precision assembly equipment where guided cylinder maintenance ensures the accuracy and reliability of automated assembly lines.

CNC machines are another critical application area where guided cylinder repairs are essential. These machine tools demand high precision, making cylinder condition paramount to their performance.

Lastly, in general industrial pneumatics , any application requiring dependable guided cylinder sealing benefits from proper maintenance and repair services to ensure consistent operation.
