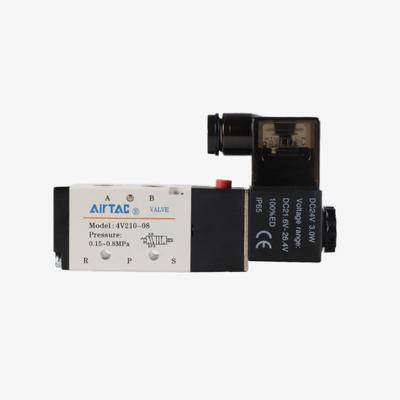

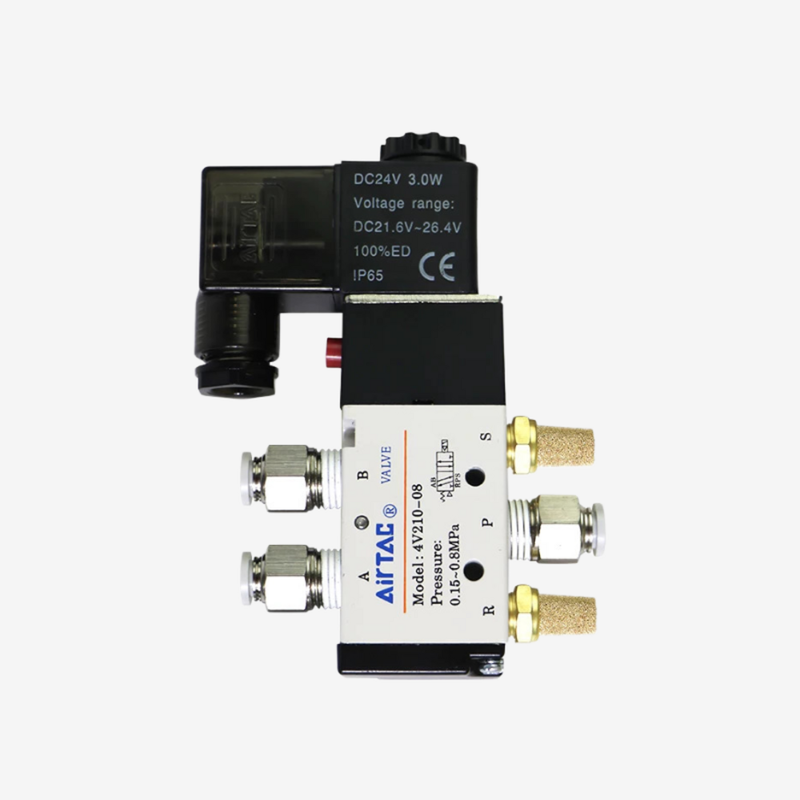

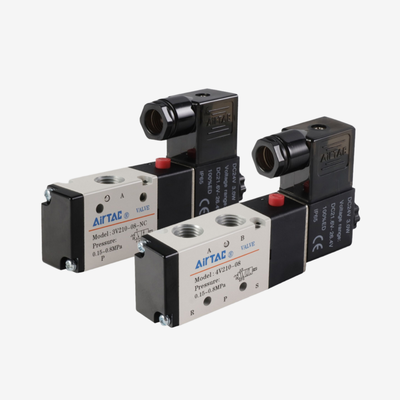

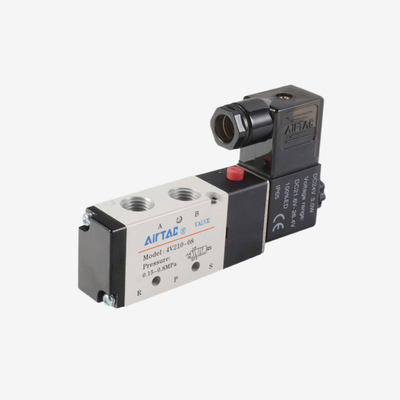

Product Description:
The 4V series offers a comprehensive selection of pilot-operated 5/2-way pneumatic solenoid valves, including individual replacement coils and pre-assembled multi-station manifold kits. These products are engineered to ensure dependable directional control of compressed air within industrial automation systems. The valve lineup features port sizes ranging from 1/8″ to 1/2″, with flow capacities (Cv) spanning approximately 0.56 to 2.80, accommodating various actuator sizes and speed requirements.
Available options include complete single or double solenoid valve assemblies, valve bodies designed for manifold integration or replacement, and individual replacement coils for AC220V or DC24V applications to support field maintenance. Pre-configured multi-station manifold kits come in arrangements of 2 to 10 stations for the 4V210-08 and 4V110-06 models, while dedicated kits are offered for the 4V310-08 and 4V310-10 series. The manifold’s design centralizes the P (inlet) and R/S (exhaust) ports, significantly reducing the need for external fittings and cutting potential leak points by over 70% compared to separate valve piping.
Additionally, the manifold facilitates independent station wiring, allowing a mixture of AC and DC voltages within a single manifold block. This feature offers enhanced flexibility for systems that integrate PLC controls with manual safety switches. Constructed from aluminum alloy, the valve body features a sliding column mechanism that delivers sensitive response and minimal friction. The valves operate without the need for oil lubrication; however, if lubricated air is employed, it should be continuously supplied, with ISO VG32 or an equivalent recommended.
Each valve includes a manual override to support installation and debugging without reliance on electrical power. The coils are rated at IP65 protection, consuming approximately 3 VA for AC variants and 3 W for DC variants. The valves operate within a standard pressure range from 0.15 to 0.8 MPa (21 to 114 psi) and are designed to withstand proof pressures between 1.2 and 1.5 MPa, depending on the source.
Features:
The port sizes for these valves range from 1/8″ to 1/2″, encompassing several models including 4V110-M5, 4V110-06, 4V210-06, 4V210-08, 4V310-08, 4V310-10, and 4V410-15. This extensive size range ensures compatibility with a wide variety of pneumatic systems.
Featuring a 5/2-way pilot-operated directional control, these valves offer dependable switching capabilities for double-acting cylinders and pneumatic actuators. Users can choose between single and double solenoid versions, with the double solenoid models providing a memory function that helps maintain the valve’s position when required.
For enhanced flexibility, there is a valve body-only option designed for manifold integration or replacement scenarios where coils and wiring are already installed. Additionally, individual replacement coils are available in both AC220V and DC24V, allowing for easy field servicing without the need to replace the entire valve assembly.
Multi-station manifold kits simplify installation by offering pre-assembled configurations ranging from 2 to 10 stations for models like 4V210-08 and 4V110-06. There are also specific kits available for 4V310-08 and 4V310-10 models, which help minimize installation space and reduce assembly time significantly.
The valves feature centralized air logistics with unified large-diameter P and R/S ports, which reduce the number of external fittings and the potential for leaks by over 70%. The design also supports voltage blending on a single manifold block, enabling independent station wiring that allows the mixture of AC and DC voltages within a compact setup.
Modular expansion is made possible through the use of blank plates that seal unused stations. This approach facilitates future upgrades without the need to re-plumb the main air supply, enhancing system adaptability. The valves are constructed from aluminum alloy, providing a lightweight yet durable body suitable for demanding industrial environments.
The sliding column structure contributes to excellent sealing performance and sensitive response with minimal friction. These valves operate lube-free, which simplifies maintenance tasks and prevents oil-mist contamination—an important feature for industries such as food processing or electronics assembly.
Standard manual override capabilities assist with installation, debugging, and emergency operations. The coils are protected to IP65 standards, making them dust-tight and resistant to water jets, thus ensuring reliable performance in challenging environmental conditions.
Operating pressures for these valves range from 0.15 to 0.8 MPa, making them suitable for a wide array of industrial pneumatic applications. Additionally, they possess a proof pressure rating between 1.2 and 1.5 MPa, which provides a safety margin to handle pressure surges effectively.
Technical Parameters:
| Operating Pressure |
0.15–0.8 MPa (21–114 Psi) |
| Seal Material |
NBR (standard) |
| Coil Voltage Options |
DC12V, DC24V, AC110V, AC220V |
| Valve Type |
5/2-Way Pilot-operated Directional Control Valve |
| Fluid |
Filtered Air (40 μm) |
| Coil Protection |
IP65 |
| Body Material |
Aluminum Alloy |
| Manual Override |
Standard |
Applications:
Double-Acting Cylinder Control
The 5/2-way function provides precise extend and retract operation for pneumatic actuators, enabling efficient control of double-acting cylinders. This functionality is essential for applications requiring accurate and reliable cylinder movement.
Multi-Cylinder Automation Panels
Manifold kits are designed to centralize both air supply and wiring, allowing for compact and organized control cabinets. These panels can accommodate up to ten valve stations, simplifying installation and maintenance in systems that control multiple cylinders.
Mixed-Voltage Control Systems
It is possible to integrate both DC 24V PLC-driven stations and AC 220V manual safety stations within a single manifold. This mixed-voltage capability offers versatile control options within one centralized unit, enhancing flexibility and system integration.
Industrial Automation Applications
Directional control solutions play a vital role in industrial automation, particularly in manufacturing, assembly, and packaging machinery. These components ensure smooth and precise movement, improving overall production efficiency.
Material Handling
Pneumatic control extends to various material handling tasks, including the operation of grippers, clamps, and positioning actuators. Reliable control ensures accurate handling and placement of materials throughout the production process.
Food and Electronics Assembly
In sensitive production lines such as food processing and electronics assembly, lube-free operation is crucial. This feature prevents oil contamination, maintaining product quality and compliance with strict hygiene standards.
Field Maintenance and Retrofit
Maintenance and repair are simplified by offering replacement coils and valve body components separately. This targeted approach allows for cost-effective servicing without the need to replace the entire manifold assembly, reducing downtime and expenses.
Customization:
Our AirTac 4V110-M5 pneumatic valve offers customizable solutions to meet your specific requirements. As a high-quality Solenoid valve manufactured in China, it is CE certified, ensuring reliable performance and safety.
This NAMUR Solenoid Valve features a 5/2-way pilot-operated directional control valve design with an aluminum alloy body, providing durability and efficient operation under an operating pressure range of 0.15–0.8 MPa (21–114 Psi).
We offer flexible coil voltage options including DC12V, DC24V, AC110V, and AC220V to suit various applications. The standard manual override enhances operational control and convenience.
With a minimum order quantity of just 1 piece, competitive pricing available upon negotiation, and a supply ability of 5000 pieces per month, we can accommodate both small and large orders efficiently.
Packaging is done securely in cartons to ensure safe delivery, with a delivery time of 1-7 work days after payment. Payment terms accepted include T/T, Western Union, and PayPal for your convenience.
Choose our customizable AirTac pneumatic valve solutions for reliable, efficient, and tailored pneumatic and solenoid valve needs.
Packing and Shipping:
Product Packaging:
The Pneumatic Solenoid Valve is carefully packaged to ensure maximum protection during transit. Each valve is individually wrapped with anti-static foam and placed inside a sturdy, custom-fitted cardboard box. The packaging includes protective inserts to prevent movement and reduce the risk of damage. All external boxes are clearly labeled with product information, handling instructions, and barcodes for easy identification.
Shipping:
We offer reliable and timely shipping services worldwide. The Pneumatic Solenoid Valve is shipped via trusted carriers with options for standard, expedited, and express delivery. Each shipment is securely sealed and tracked to ensure safe arrival. We also provide necessary export documentation and comply with all international shipping regulations to facilitate smooth customs clearance.
