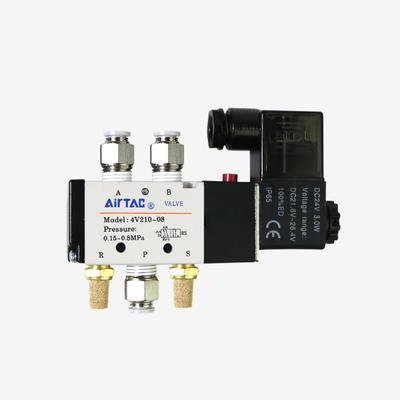

Airtac 4V210-06 Pneumatic Control Solenoid Valve Max 5 Cycles Per Second Switching Speed 220G Light Weight For Filtered Compressed Air Circuit

Product Description:

The 4V series offers a comprehensive selection of pilot-operated 5/2-way pneumatic solenoid valves, along with individual replacement coils and pre-assembled multi-station manifold kits. These components are engineered to ensure dependable directional control of compressed air in various industrial automation applications. The valves come in port sizes ranging from 1/8″ up to 1/2″, and their flow capacities (Cv) vary from approximately 0.56 to 2.80. This range accommodates different actuator dimensions and speed requirements effectively.

Available configurations include complete single or double solenoid assemblies, valve bodies designed exclusively for manifold integration or replacement, and individual replacement coils operating at AC220V or DC24V for maintenance in the field. The multi-station manifold kits are pre-arranged to support 2 to 10 stations for the 4V210-08 and 4V110-06 models. Moreover, specific kits are also provided for the 4V310-08 and 4V310-10 series. The manifold layout centralizes the P (inlet) and R/S (exhaust) ports, which significantly reduces the need for external fittings and cuts potential leak points by over 70% compared to separate valve piping solutions.

Each station in the manifold has independent wiring, which enables the combination of AC and DC voltages within a single manifold block. This design flexibility is especially advantageous for systems that integrate PLC controls with manual safety switch mechanisms. The valve bodies themselves are constructed from aluminum alloy and feature a sliding column structure, delivering a sensitive response and minimizing friction during operation.

These valves do not require oil lubrication; however, if lubricated air is used, it must be supplied continuously, with ISO VG32 or its equivalent recommended. A manual override function is included as standard, facilitating installation and troubleshooting even in the absence of electrical power. The coils boast an IP65 protection rating and consume roughly 3 VA for AC variants or 3 W for DC variants. The standard operating pressure ranges between 0.15 to 0.8 MPa (21 to 114 psi), while the proof pressure varies from 1.2 to 1.5 MPa, depending on the specific valve model.

Features:

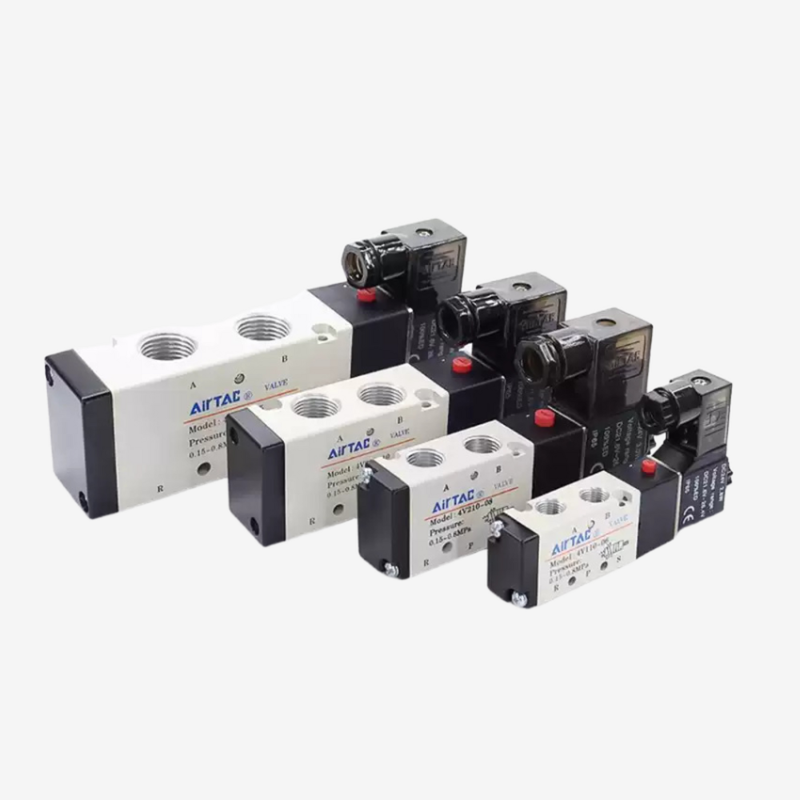

The valve port sizes range from 1/8″ to 1/2″, accommodating models such as 4V110-M5, 4V110-06, 4V210-06, 4V210-08, 4V310-08, 4V310-10, and 4V410-15. This wide range provides flexibility for various pneumatic applications.

These valves are designed with a 5/2-way pilot-operated directional control mechanism, ensuring dependable switching performance for double-acting cylinders and pneumatic actuators. Users can choose between single and double solenoid configurations, with the double solenoid offering a memory function that helps maintain valve position.

Options include valve body only versions, ideal for manifold integration or replacements when coils and wiring are already installed. Additionally, individual replacement coils are available in AC220V and DC24V versions, enabling field servicing without the need to replace the entire valve assembly.

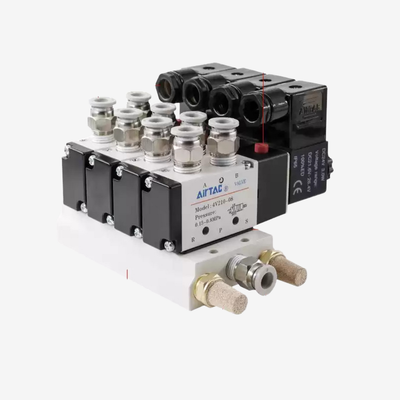

Multi-station manifold kits come pre-assembled in configurations ranging from 2 to 10 stations for models like 4V210-08 and 4V110-06. There are also kits for 4V310-08 and 4V310-10, which help reduce installation space and assembly time significantly. Centralized air logistics feature unified, large-diameter P and R/S ports that cut down external fittings and potential leak points by over 70%.

Mixing AC and DC voltages on a single compact manifold block is possible thanks to independent station wiring, allowing voltage blending. Modular expansion is facilitated with blank plates that seal unused stations and permit future upgrades without re-plumbing the main air supply.

The valve body is constructed from aluminum alloy, offering a combination of lightweight and durability suitable for harsh industrial environments. The sliding column structure ensures excellent sealing, quick response, and minimal friction. Its lube-free operation simplifies maintenance and prevents oil mist contamination, which is critical in food processing and electronics assembly.

Standard manual override capabilities support easier installation, troubleshooting, and emergency operations. The coils enjoy IP65 protection, making them dust-tight and resistant to water jets, ideal for demanding work conditions.

These valves operate efficiently within a pressure range of 0.15 to 0.8 MPa and provide a proof pressure rating between 1.2 and 1.5 MPa, offering a safety margin against pressure surges in diverse industrial pneumatic systems.

Technical Parameters:

Applications:

The 5/2-way function facilitates the extend and retract operations of pneumatic actuators, providing precise control for double-acting cylinders. This functionality ensures reliable performance in various automation applications.

Manifold kits are designed to centralize both air supply and wiring within a compact control cabinet. These panels can accommodate up to ten valve stations, enhancing efficiency and organization in pneumatic system control.

A single manifold is capable of supporting mixed-voltage control systems, hosting both DC 24V PLC-driven stations as well as AC 220V manual safety stations. This flexibility simplifies integration and operation across different control requirements.

Directional control solutions are essential in industries such as manufacturing, assembly, and packaging machinery. These systems ensure accurate and dependable operation throughout various stages of production.

Pneumatic controls manage grippers, clamps, and positioning actuators effectively, enabling precise handling and placement of materials within automated processes.

The lube-free operation provided by these systems prevents oil contamination on production lines, which is critical in food and electronics assembly environments to maintain product quality and safety.

Maintenance and retrofit activities are simplified by offering replacement coils and valve body components individually. This approach allows targeted repairs without the need to replace the entire manifold assembly, reducing downtime and costs.

Customization:

Our AirTac 4V110-M5 pneumatic solenoid valve offers extensive product customization services to meet your specific requirements. As a high-quality NAMUR solenoid valve manufactured in China, it is CE certified to ensure reliable performance and safety.

This 5/2-way pilot-operated directional control valve features a durable aluminum alloy body, NBR standard seal material, and coil protection rated at IP65, making it suitable for various industrial applications. The operating pressure ranges from 0.15 to 0.8 MPa (21 to 114 Psi), providing versatile functionality.

We provide customization options for the G1/4 pneumatic solenoid valve to accommodate unique specifications, packaging preferences with carton packaging, and flexible payment terms including T/T, Western Union, and Paypal.

With a minimum order quantity of just 1 piece and a supply ability of 5000 pieces per month, we ensure fast delivery within 1-7 work days after payment. Pricing is negotiable to suit your volume and customization needs.

Choose our AirTac 4V110-M5 solenoid valve customization services for reliable, efficient, and tailored pneumatic control solutions.
